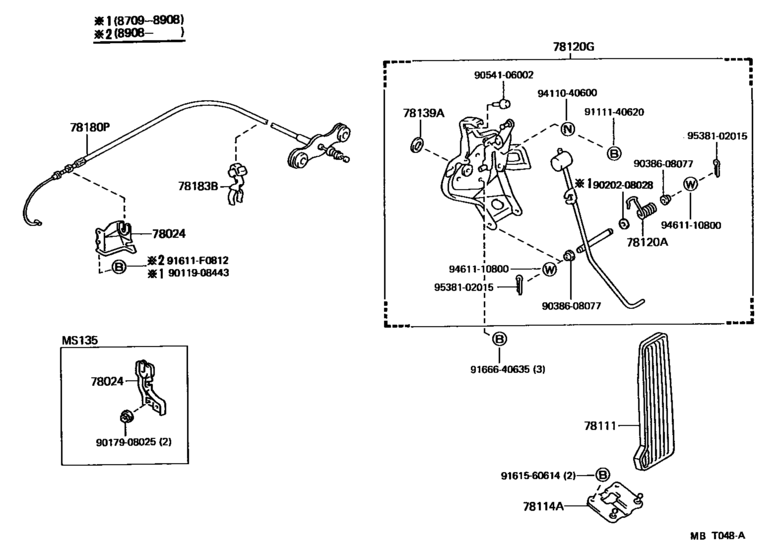

Accelerator Link ([09.1987 - ] (8709- )GS131,MS13#..RHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- MS132
- grade
- STD
- body
- SED
- ENGINE
- 5M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-30010 Bracket Sub-Assy, Accelerator Control Cable[09.1987 - 10.1991] MS132 |
78024-30010 |
US $35.53 |
||
|
78111
|
78111
78111-30080 Pedal, Accelerator[09.1987 - 10.1991] GS131,LS130,MS13#..RHD |
78111-30080 |
US $15.14 |
||
| replacement | |||||
|
78111
|
78111
78111-30081 Pedal, Accelerator[09.1987 - 10.1991] GS131,LS130,MS13#..RHD |
78111-30081 |
US $10.13 |
||
|
78114A
|
78114A
78114-30050 Bracket, Accelerator Pedal Support[09.1987 - 10.1991] GS131,LS130,MS13#..RHD |
78114-30050 |
US $7.34 |
||
|
78120A
|
78120A
90508-28003 Spring, Compression (For Accelerator Link Rod)[09.1987 - 09.1988] MS132..RHD..5F |
90508-28003 |
US $3.35 |
||
|
78120A
|
78120A
90508-29010 Spring (For Accelerator Pedal Rod)[09.1988 - 10.1991] GS131,MS132,133..RHD..5F |
90508-29010 |
US $4.66 |
||
|
78120G
|
78120G
78120-30531 Rod Assy, Accelerator Pedal[09.1988 - 10.1991] GS131,MS132,133..RHD..5F |
78120-30531 |
US $66.10 |
||
|
78120G
|
78120G
78120-30560 Rod Assy, Accelerator Pedal[09.1987 - 09.1988] MS132..RHD..5F |
78120-30560 |
US $53.29 |
||
| replacement | |||||
|
78120G
|
78120G
78120-30561 Rod Assy, Accelerator Pedal[09.1987 - 09.1988] MS132..RHD..5F |
78120-30561 |
US $53.14 |
||
|
78139A
|
78139A
78139-30060 Seal, Accelerator Pedal Rod Bracket, No.2[09.1987 - 10.1991] GS131,LS130,MS13#..RHD |
78139-30060 |
US $3.35 |
||
|
78180P
|
78180P
78180-30810 Cable Assy, Accelerator ControlACCELERATOR CONTROL [09.1987 - 08.1989] MS132..RHD |
78180-30810 |
US $48.34 |
||
|
78183B
|
78183B
78183-30090 Clamp, Accelerator Control Cable[09.1987 - 04.1988] LS130,MS132,135..RHD |
78183-30090 |
US $13.10 |
||
| replacement | |||||
|
78183B
|
78183B
78183-30091 Clamp, Accelerator Control Cable[09.1987 - 04.1988] LS130,MS132,135..RHD |
78183-30091 |
US $12.81 |
||
|
78183B
|
78183B
78183-30091 Clamp, Accelerator Control Cable[04.1988 - 08.1989] GS131,LS130,MS132,135..RHD |
78183-30091 |
US $12.81 |
||
|
91611F0812
|
91611F0812
91611-F0812
New Genuine Part
|
91611-F0812 |
— | ||
| replacement | |||||
|
91611F0812
|
91611F0812
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.12 |
||
|
9011908443
|
9011908443
90119-08443
New Genuine Part
|
90119-08443 |
— | ||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9054106002
|
9054106002
90541-06002
Cushion(For Back Door Lock Striker)
|
90541-06002 |
— | ||
| replacement | |||||
|
9054106002
|
9054106002
90541-06019 Cushion(For Back Door Lock Striker) |
90541-06019 |
US $2.88 |
||
|
9111140620
|
9111140620
91111-40620
New Genuine Part
|
91111-40620 |
— | ||
| replacement | |||||
|
9111140620
|
9111140620
91111-50620 New Genuine Part |
91111-50620 |
US $1.75 |
||
|
9161560614
|
9161560614
91615-60614
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91615-60614 |
— | ||
| replacement | |||||
|
9161560614
|
9161560614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9166640635
|
9166640635
91666-40635 New Genuine Part |
91666-40635 |
US $1.89 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.88 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
