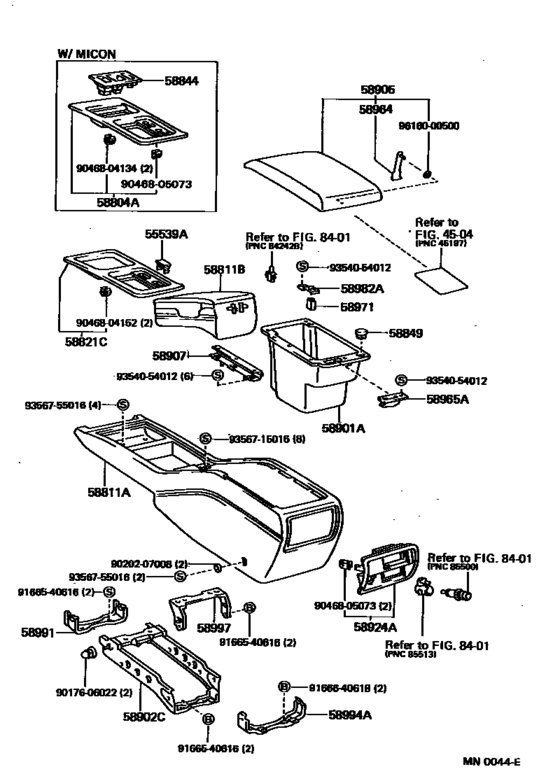

Console Box & Bracket ([08.1989 - ] (8908- )GS131..4FC..ROY ; (8908- )4FC,5F.. ROYG,SSL..HTWC ; (8908- )GS130,J ZS13#,MS13#..4FC. .SPC,TWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- MS137
- grade
- ROYG
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58811A
|
58811A
58802-30040-02 Box, Console, Front[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) MAROON,TRIM3# |
58802-30040-02 |
US $521.25 |
||
|
58811A
|
58811A
58802-30040-04 Box, Console, Front[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) BLUE,TRIM8# |
58802-30040-04 |
US $521.25 |
||
| replacement | |||||
|
58811A
|
58811A
58802-30040-J0 Box, Console, Front[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) BLUE,TRIM8# |
58802-30040-J0 |
US $521.25 |
||
|
58811A
|
58811A
58802-30040-06 Box, Console, Front[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) SABLE,TRIM4# |
58802-30040-06 |
US $521.25 |
||
| replacement | |||||
|
58811A
|
58811A
58802-30040-E0 Box, Console, Front[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) SABLE,TRIM4# |
58802-30040-E0 |
US $521.25 |
||
|
58811A
|
58811A
58811-30220-02 Box, Console, Front[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) MAROON,TRIM3# |
58811-30220-02 |
US $384.38 |
||
|
58811A
|
58811A
58811-30220-04 Box, Console, Front[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) BLUE,TRIM8# |
58811-30220-04 |
US $384.38 |
||
|
58811A
|
58811A
58811-30220-06 Box, Console, Front[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) SABLE,TRIM4# |
58811-30220-06 |
US $384.38 |
||
|
58811B
|
58811B
58801-30180-02 Box, Console[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) MAROON,TRIM3# |
58801-30180-02 |
US $266.45 |
||
|
58811B
|
58811B
58801-30180-04 Box, Console[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) BLUE,TRIM8# |
58801-30180-04 |
US $266.45 |
||
| replacement | |||||
|
58811B
|
58811B
58801-30181-B1 Box, Console[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) BLUE,TRIM8# |
58801-30181-B1 |
US $167.44 |
||
|
58811B
|
58811B
58801-30180-06 Box, Console[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) SABLE,TRIM4# |
58801-30180-06 |
US $266.45 |
||
| replacement | |||||
|
58811B
|
58811B
58801-30181-B1 Box, Console[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) SABLE,TRIM4# |
58801-30181-B1 |
US $167.44 |
||
|
58821C
|
58821C
58821-30210 Panel, Console, Upper[09.1987 - 08.1988] GS130,131,MS135,137..4FC..(SPC,TWC) |
58821-30210 |
US $65.96 |
||
|
58821C
|
58821C
58821-30220 Panel, Console, Upper[09.1988 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) |
58821-30220 |
US $77.17 |
||
|
58821C
|
58821C
58821-30250-02 Panel, Console, Upper[08.1989 - 10.1991] MS135..SALEX;MS13#,UZS131..4FC..NOB;GS130,131,JZS13#..4FC..(SPC,TWC) MAROON,TRIM3# |
58821-30250-02 |
US $46.30 |
||
|
58821C
|
58821C
58821-30250-04 Panel, Console, Upper[08.1989 - 10.1991] MS135..SALEX;MS13#,UZS131..4FC..NOB;GS130,131,JZS13#..4FC..(SPC,TWC) BLUE,TRIM8# |
58821-30250-04 |
US $46.30 |
||
|
58821C
|
58821C
58821-30250-06 Panel, Console, Upper[08.1989 - 10.1991] MS135..SALEX;MS13#,UZS131..4FC..NOB;GS130,131,JZS13#..4FC..(SPC,TWC) SABLE,TRIM4# |
58821-30250-06 |
US $46.30 |
||
|
58849
|
58849
58849-30030 Cover, Console Box Hole, No.2[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(ROY,ROYG,SALEX)..(SPC,TWC) |
58849-30030 |
US $2.77 |
||
|
58901A
|
58901A
58901-30090-02 Box Sub-Assy, Console, Rear[08.1989 - 10.1991] UZS131..4FC MAROON,TRIM3#; GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),MAROON,MAROON,TRIM3#; MS137..4FC ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) OR ｱﾘ(ｴｱ ﾊﾞﾂｸﾞ),MAROON,MAROON,TRIM3# |
58901-30090-02 |
US $133.95 |
||
|
58901A
|
58901A
58901-30090-04 Box Sub-Assy, Console, Rear[08.1989 - 10.1991] UZS131..4FC BLUE,TRIM8#; GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),BLUE,BLUE,TRIM8#; MS137..4FC ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) OR ｱﾘ(ｴｱ ﾊﾞﾂｸﾞ),BLUE,BLUE,TRIM8# |
58901-30090-04 |
US $133.95 |
||
|
58901A
|
58901A
58901-30090-06 Box Sub-Assy, Console, Rear[08.1989 - 10.1991] UZS131..4FC SABLE,TRIM4#; GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),SABLE,SABLE,TRIM4#; MS137..4FC ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) OR ｱﾘ(ｴｱ ﾊﾞﾂｸﾞ),SABLE,SABLE,TRIM4# |
58901-30090-06 |
US $133.95 |
||
|
58901A
|
58901A
58901-30100-01 Box Sub-Assy, Console, Rear[09.1987 - 08.1989] MS137..4FC ｱﾘ(ﾃﾞﾝﾜ) OR ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ),BLACK,BLACK,TRIM3#,4#,8#; MS135..4FC;GS131..4FC..ROY..SPC ｱﾘ(ﾃﾞﾝﾜ),BLACK,BLACK,TRIM3#,4#,8# |
58901-30100-01 |
US $158.70 |
||
|
58901A
|
58901A
58901-30110 Box Sub-Assy, Console, Rear[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) |
58901-30110 |
US $138.32 |
||
|
58901A
|
58901A
58901-30120-02 Box Sub-Assy, Console, Rear[08.1989 - 10.1991] GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) MAROON,TRIM3# |
58901-30120-02 |
US $145.60 |
||
|
58901A
|
58901A
58901-30120-04 Box Sub-Assy, Console, Rear[08.1989 - 10.1991] GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) BLUE,TRIM8# |
58901-30120-04 |
US $145.60 |
||
|
58901A
|
58901A
58901-30120-06 Box Sub-Assy, Console, Rear[08.1989 - 10.1991] GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) SABLE,TRIM4# |
58901-30120-06 |
US $145.60 |
||
|
58902C
|
58902C
58902-30030 Bracket Sub-Assy, Console Box Mounting[09.1987 - 08.1989] GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,HTWC,TWC);GS130,136,LS13#,MS13#,YS130.. 4FC,5F |
58902-30030 |
US $33.49 |
||
|
58902C
|
58902C
58902-30040 Bracket Sub-Assy, Console Box Mounting[08.1989 - 10.1990] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..4FC,5F |
58902-30040 |
US $43.97 |
||
|
58902C
|
58902C
58902-30060 Bracket Sub-Assy, Console Box Hinge, No.1[10.1990 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL); GS130,LS130,YS130..5F..STD ｶﾝﾚｲﾁ ｼﾖｳ |
58902-30060 |
US $43.10 |
||
|
58905
|
58905
58905-30120-02 Door Sub-Assy, Console Compartment[09.1987 - 08.1989] MS137..4FC..NOB F ﾊﾟﾂｹ-ｼﾞ,MAROON,TRIM3# |
58905-30120-02 |
US $362.54 |
||
|
58905
|
58905
58905-30120-04 Door Sub-Assy, Console Compartment[09.1987 - 08.1989] MS137..4FC..NOB F ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
58905-30120-04 |
US $362.54 |
||
|
58905
|
58905
58905-30120-06 Door Sub-Assy, Console Compartment[09.1988 - 08.1989] MS137..4FC..NOB F ﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4#; MS137..4FC..WIB L-1 ﾊﾟﾂｹ-ｼﾞ OR F ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4# |
58905-30120-06 |
US $362.54 |
||
|
58905
|
58905
58905-30130-02 Door Sub-Assy, Console Compartment[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(ROY,ROYG) MAROON,TRIM3# |
58905-30130-02 |
US $362.54 |
||
|
58905
|
58905
58905-30130-04 Door Sub-Assy, Console Compartment[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(ROY,ROYG) BLUE,TRIM8# |
58905-30130-04 |
US $362.54 |
||
|
58905
|
58905
58905-30130-06 Door Sub-Assy, Console Compartment[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(ROY,ROYG) SABLE,TRIM4# |
58905-30130-06 |
US $362.54 |
||
|
58905
|
58905
58905-30180-02 Door Sub-Assy, Console Compartment[08.1989 - 10.1991] UZS131..4FC MAROON,TRIM3#; MS137..4FC..NOB F ﾊﾟﾂｹ-ｼﾞ,MAROON,TRIM3#; MS137..4FC..WIB L-1 ﾊﾟﾂｹ-ｼﾞ OR F ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ,MAROON,TRIM3# |
58905-30180-02 |
US $339.25 |
||
|
58905
|
58905
58905-30180-04 Door Sub-Assy, Console Compartment[08.1989 - 10.1991] UZS131..4FC BLUE,TRIM8#; MS137..4FC..NOB F ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8#; MS137..4FC..WIB L-1 ﾊﾟﾂｹ-ｼﾞ OR F ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ,BLUE,TRIM8# |
58905-30180-04 |
US $339.25 |
||
|
58905
|
58905
58905-30180-06 Door Sub-Assy, Console Compartment[08.1989 - 10.1991] UZS131..4FC SABLE,TRIM4#; MS137..4FC..NOB F ﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4#; MS137..4FC..WIB L-1 ﾊﾟﾂｹ-ｼﾞ OR F ﾊﾟﾂｹ-ｼﾞ OR L ﾊﾟﾂｹ-ｼﾞ,SABLE,TRIM4# |
58905-30180-06 |
US $339.25 |
||
|
58905
|
58905
58905-30210-02 Door Sub-Assy, Console Compartment[08.1989 - 10.1991] GS130,131,JZS13#,MS13#..4FC..(ROY,ROYG) MAROON,TRIM3# |
58905-30210-02 |
US $297.02 |
||
|
58905
|
58905
58905-30210-04 Door Sub-Assy, Console Compartment[08.1989 - 10.1991] GS130,131,JZS13#,MS13#..4FC..(ROY,ROYG) BLUE,TRIM8# |
58905-30210-04 |
US $297.02 |
||
|
58905
|
58905
58905-30210-06 Door Sub-Assy, Console Compartment[08.1989 - 10.1991] GS130,131,JZS13#,MS13#..4FC..(ROY,ROYG) SABLE,TRIM4# |
58905-30210-06 |
US $297.02 |
||
|
58907
|
58907
58907-30040 Hinge Sub-Assy, Console Compartment Door[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) |
58907-30040 |
US $14.27 |
||
|
58907
|
58907
58907-30060 Hinge Sub-Assy, Console Compartment Door[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
58907-30060 |
US $17.04 |
||
|
58924A
|
58924A
58924-30020
Panel, Console Rear End, No.2
[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) |
58924-30020 |
— | ||
|
58924A
|
58924A
58924-30030 Panel, Console Rear End, No.2[08.1989 - 10.1991] GS131..4FC..ROY..SPC;GS130,JZS13#,MS13#,UZS131..4FC..(ROY,ROYG); JZS131..SALEX,SSL ｱﾘ(ﾘﾔ ｴｱｺﾝ) |
58924-30030 |
US $12.96 |
||
|
58964
|
58964
58964-30060 Stopper, Console Compartment Door, No.1[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) |
58964-30060 |
US $4.08 |
||
|
58964
|
58964
58964-30070 Stopper, Console Compartment Door, No.1[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
58964-30070 |
US $3.93 |
||
|
58965A
|
58965A
58965-30010 Stopper, Console Compartment Door, No.2[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) |
58965-30010 |
US $2.18 |
||
|
58965A
|
58965A
58965-30020 Stopper, Console Compartment Door, No.2[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
58965-30020 |
US $2.91 |
||
|
58971
|
58971
58971-30040
Lock, Console Compartment Door
[09.1987 - 10.1987] GS130,131,MS135,137..4FC..(SPC,TWC) |
58971-30040 |
— | ||
|
58971
|
58971
58971-30041 Lock, Console Compartment Door[10.1987 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC) |
58971-30041 |
US $1.89 |
||
|
58982A
|
58982A
58982-30050 Retainer, Console Compartment Door Lock[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
58982-30050 |
US $0.87 |
||
|
58991
|
58991
58991-30080 Bracket, Console Box Mounting, Upper[09.1987 - 08.1989] GS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,HTWC,TWC);GS130,136,LS13#,MS13#,YS130.. 4FC,5F |
58991-30080 |
US $9.90 |
||
|
58994A
|
58994A
58994-30030 Bracket, Console Box Mounting, No.4[09.1987 - 08.1989] MS137..4FC ｱﾘ(ﾃﾞﾝﾜ) OR ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ); MS135..4FC;GS131..4FC..ROY..SPC ｱﾘ(ﾃﾞﾝﾜ) |
58994-30030 |
US $13.69 |
||
|
58994A
|
58994A
58994-30040 Bracket, Console Box Mounting, No.4[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) |
58994-30040 |
US $10.92 |
||
|
58994A
|
58994A
58994-30050 Bracket, Console Box Mounting, No.4[08.1989 - 10.1991] UZS131..4FC; GS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ); MS137..4FC ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ) OR ｱﾘ(ｴｱ ﾊﾞﾂｸﾞ) |
58994-30050 |
US $19.22 |
||
|
58994A
|
58994A
58994-30060 Bracket, Console Box Mounting, No.4[08.1989 - 10.1991] GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
58994-30060 |
US $18.05 |
||
|
58997
|
58997
58997-30030 Bracket, Console Box Mounting, No.3[09.1987 - 08.1989] GS130,131,MS135,137..4FC..(SPC,TWC) |
58997-30030 |
US $9.61 |
||
|
58997
|
58997
58997-30040 Bracket, Console Box Mounting, No.3[08.1989 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC) |
58997-30040 |
US $10.92 |
||
|
9017606022
|
9017606022
90176-06022 New Genuine Part |
90176-06022 |
US $1.44 |
||
|
9020207008
|
9020207008
90202-07008 New Genuine Part |
90202-07008 |
US $1.60 |
||
|
9046804134
|
9046804134
90468-04134 New Genuine Part |
90468-04134 |
US $2.04 |
||
|
9046804152
|
9046804152
90468-04152 DASH BOARD CLIPS |
90468-04152 |
US $2.56 |
||
|
9046805073
|
9046805073
90468-05073 New Genuine Part |
90468-05073 |
US $0.87 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9166640618
|
9166640618
91666-40618
New Genuine Part
|
91666-40618 |
— | ||
| replacement | |||||
|
9166640618
|
9166640618
91661-60616 BOLT |
91661-60616 |
from US $0.72 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9356715016
|
9356715016
93567-15016
New Genuine Part
|
93567-15016 |
— | ||
| replacement | |||||
|
9356715016
|
9356715016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
|
9616000500
|
9616000500
96160-00500 Ring, E(For Over Center Lever) |
96160-00500 |
from US $0.86 |
||
