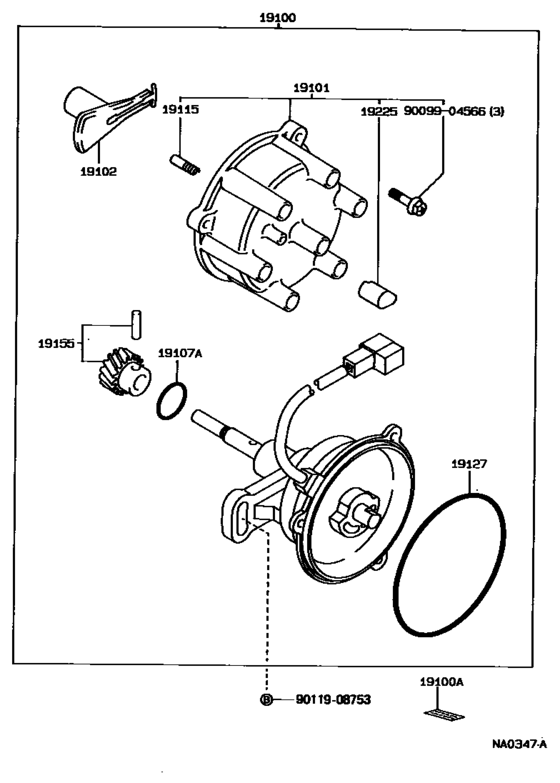

Distributor ([09.1987 - 08.1989] (8709-8908)7MGE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- MS137
- grade
- ROYG
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-42040 Distributor Assy[09.1987 - 08.1989] 7MGE..MS135,137 |
19100-42040 |
US $914.37 |
||
|
19100
|
19100
19100-42050
Distributor Assy
[08.1989 - 10.1991] 7MGE..MS13# |
19100-42050 |
— | ||
|
19100A
|
19100A
90919-24004
Tape, Sealing
[09.1987 - 10.1991] 1JZGE..JZS13#; 3YP#..YS130; 1GE,1GFE,1GG#..GS13#; 7MGE,MP..MS13# |
90919-24004 |
— | ||
| replacement | |||||
|
19100A
|
19100A
90919-24003
Tape, Sealing
[09.1987 - 10.1991] 1JZGE..JZS13#; 3YP#..YS130; 1GE,1GFE,1GG#..GS13#; 7MGE,MP..MS13# |
90919-24003 |
— | ||
|
19101
|
19101
19101-70011 Cap Sub-Assy, Distributor[09.1987 - 08.1988] 1GE,1GGE..GS13#; 7MGE..MS135,137 |
19101-70011 |
US $51.83 |
||
|
19101
|
19101
19101-70160 Cap Sub-Assy, Distributor[08.1989 - 10.1991] 7MGE..MS13#; 1GFE,1GGP..GS13# |
19101-70160 |
US $97.84 |
||
|
19102
|
19102
19102-43110 Rotor Sub-Assy, Distributor[09.1987 - 08.1989] 7MGE..MS135,137; 1GE,1GGE..GS130,131 |
19102-43110 |
US $17.94 |
||
|
19102
|
19102
19102-70160 Rotor Sub-Assy, Distributor[08.1989 - 07.1991] 7MGE..MS13#; 1GFE..GS13#; 1JZGE..JZS13# MARK 19100-46010 : ｲﾗｽﾄｻﾝｼｮｳ |
19102-70160 |
from US $15.58 |
||
|
19107A
|
19107A
90099-14018
Ring, O, Distributor Housing
[09.1987 - 08.1989] 1GE,1GGE..GS13#; 7MGE,MP..MS13# |
90099-14018 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14088 Ring, O, Distributor Housing[09.1987 - 08.1989] 1GE,1GGE..GS13#; 7MGE,MP..MS13# |
90099-14088 |
from US $2.50 |
||
|
19107A
|
19107A
90099-14088 Ring, O, Distributor Housing[08.1989 - 03.1991] 1GGP,1GGZE..GS130,131; 7MGE..MS13# |
90099-14088 |
from US $2.50 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[09.1987 - 08.1989] 1GE,1GGE..GS13#; 7MGE,MP..MS13# |
19115-50010 |
— | ||
|
19115
|
19115
19115-88280 Piece, Distributor Cap, Center[08.1989 - 10.1991] 1JZGE..JZS13#; 7MGE..MS13#; 1GFE,1GGP..GS13# |
19115-88280 |
US $1.67 |
||
|
19127
|
19127
19127-52020
Packing, Dust Proof
[09.1987 - 08.1989] 1GE,1GGE..GS13#; 7MGE..MS135,137 |
19127-52020 |
— | ||
| replacement | |||||
|
19127
|
19127
19127-61240 Packing, Dust Proof[09.1987 - 08.1989] 1GE,1GGE..GS13#; 7MGE..MS135,137 |
19127-61240 |
from US $4.02 |
||
|
19127
|
19127
19127-61240 Packing, Dust Proof[08.1989 - 10.1991] 1JZGE..JZS13#; 7MGE..MS13#; 1GFE,1GGP..GS13# |
19127-61240 |
from US $4.02 |
||
|
19155
|
19155
19195-42040 Gear, Spiral, Distributor[09.1987 - 08.1989] 7MGE..MS135,137 |
19195-42040 |
US $42.22 |
||
|
19225
|
19225
19225-41140 Cap, Rubber[09.1987 - 08.1989] 1GE,1GGE..GS13#; 7MGE,MP..MS13# |
19225-41140 |
US $2.91 |
||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9011908753
|
9011908753
90119-08753 Bolt, W/washer(For Repair Actuator Set) |
90119-08753 |
US $1.89 |
||
| replacement | |||||
|
9011908753
|
9011908753
90119-08770 Bolt, W/washer(For Repair Actuator Set) |
90119-08770 |
US $2.40 |
||
