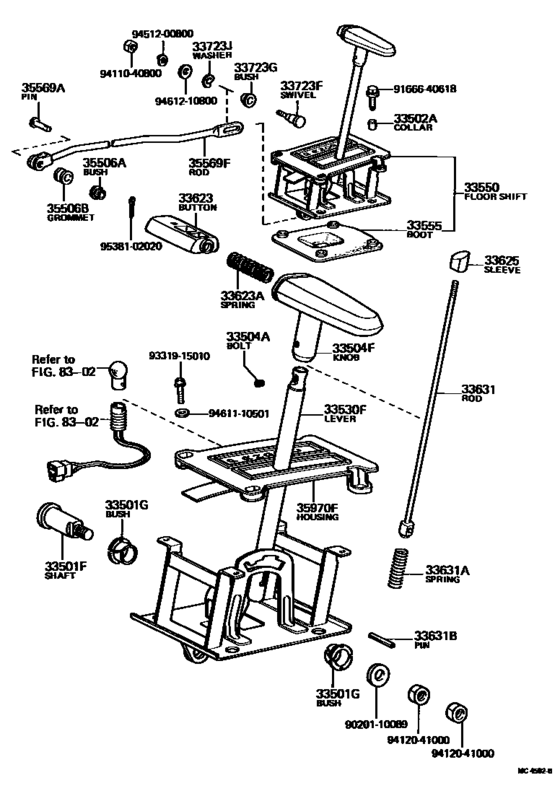

Shift Lever & Retainer ([11.1976 - 08.1979] (7611-7908)3FC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 12.1974
- To
- 08.1979
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501F
|
33501F
33511-30230
Shaft Sub-Assy, Control (For Floor Shift)
[10.1974 - 02.1975] MS83,85,95..3FC L=46 |
33511-30230 |
— | ||
|
33501F
|
33501F
33511-30231
Shaft Sub-Assy, Control (For Floor Shift)
[02.1975 - 08.1979] MS83,85,95..3FC L=61.5 |
33511-30231 |
— | ||
|
33501G
|
33501G
90385-16045 Bush (For Floor Shift Control Shaft)[10.1974 - 08.1979] MS83,85,95..3FC |
90385-16045 |
from US $1.74 |
||
|
33502A
|
33502A
90387-06065 Collar (For Floor Shift Setting)[10.1974 - 08.1979] MS83,85,95..3FC OD=8.8 |
90387-06065 |
US $2.88 |
||
|
33504A
|
33504A
90113-05034 Bolt Or Pin (For Shift Lever Knob Setting)[10.1974 - 08.1979] MS83,85,95..3FC |
90113-05034 |
US $4.16 |
||
|
33504F
|
33504F
33504-30120
Knob Sub-Assy, Shift Lever
[10.1974 - 11.1976] MS83,85,95..3FC |
33504-30120 |
— | ||
|
33504F
|
33504F
33542-30120 Knob Sub-Assy, Shift LeverSHIFT LEVER [11.1976 - 01.1977] MS83,85,95..3FC |
33542-30120 |
US $35.82 |
||
| replacement | |||||
|
33504F
|
33504F
33542-30120-01
Knob Sub-Assy, Shift Lever
[11.1976 - 01.1977] MS83,85,95..3FC |
33542-30120-01 |
— | ||
|
33504F
|
33504F
33542-30120-01
Knob Sub-Assy, Shift Lever
[01.1977 - 08.1979] MS83,85,95..3FC BLACK,BLACK |
33542-30120-01 |
— | ||
|
33530F
|
33530F
33503-30100
Lever Assy, Shift (For Floor Shift)
[11.1976 - 08.1979] MS83,85,95..LHD..3FC |
33503-30100 |
— | ||
|
33530F
|
33530F
33530-30140
Lever Assy, Shift (For Floor Shift)
[10.1974 - 11.1976] MS83,85,95..LHD..3FC |
33530-30140 |
— | ||
|
33550
|
33550
33550-30020
Floor Shift Assy, Transmission
[10.1974 - 11.1976] MS83,85,95..LHD..3FC |
33550-30020 |
— | ||
|
33550
|
33550
33550-30070
Floor Shift Assy, Transmission
[11.1976 - 08.1979] MS83,85,95..LHD..3FC |
33550-30070 |
— | ||
|
33555
|
33555
33555-30100 Boot, Shift LeverSHIFT LEVER [10.1974 - 08.1979] MS83,85,95..3FC |
33555-30100 |
US $59.55 |
||
|
33623
|
33623
33623-22020 Button, Shift Lever KnobSHIFT LEVER KNOB [11.1976 - 01.1977] MS83,85,95..3FC |
33623-22020 |
US $20.53 |
||
| replacement | |||||
|
33623
|
33623
33623-22020-01 Button, Shift Lever KnobSHIFT LEVER KNOB [11.1976 - 01.1977] MS83,85,95..3FC |
33623-22020-01 |
US $21.40 |
||
|
33623
|
33623
33623-22020-01 Button, Shift Lever KnobSHIFT LEVER KNOB [01.1977 - 08.1979] MS83,85,95..3FC BLACK |
33623-22020-01 |
US $21.40 |
||
|
33623
|
33623
33623-30030
Button, Shift Lever Knob
[10.1974 - 11.1976] MS83,85,95..3FC |
33623-30030 |
— | ||
|
33623A
|
33623A
90501-07005 Spring, Compression (For Detent Rod)[11.1976 - 08.1979] MS83,85,95..3FC |
90501-07005 |
US $6.87 |
||
|
33623A
|
33623A
90501-08530 Spring, Compression (For Shift Lever Knob Button)COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) [10.1974 - 11.1976] MS83,85,95..3FC |
90501-08530 |
US $5.53 |
||
|
33625
|
33625
33625-22020 Sleeve, Shift Lever Knob[11.1976 - 08.1979] MS83,85,95..3FC |
33625-22020 |
US $12.48 |
||
|
33631
|
33631
33631-30030
Rod, Detent
[10.1974 - 11.1976] MS83,85,95..3FC |
33631-30030 |
— | ||
|
33631
|
33631
33631-30050
Rod, Detent
[11.1976 - 08.1979] MS83,85,95..3FC |
33631-30050 |
— | ||
|
33631A
|
33631A
90501-09009
Spring, Compression (For Shift Lever Knob Button)
[11.1976 - 08.1979] MS83,85,95..3FC |
90501-09009 |
— | ||
|
33631A
|
33631A
90501-10337 Spring, Compression (For Detent Rod)COMPRESSION (FOR DETENT ROD) [10.1974 - 11.1976] MS83,85,95..3FC |
90501-10337 |
US $4.51 |
||
|
33631B
|
33631B
90254-04017 Pin, Slotted Spring (For Detent Rod)SLOTTED SPRING (FOR DETENT ROD) [10.1974 - 08.1979] MS83,85,95..3FC |
90254-04017 |
US $5.68 |
||
|
33723F
|
33723F
33723-30030 Swivel, Connecting Rod (For Floor Shift)CONNECTING ROD (FOR FLOOR SHIFT) [10.1974 - 08.1979] MS83,85,95..3FC |
33723-30030 |
US $6.55 |
||
|
33723G
|
33723G
90386-12031 Bush (For Floor Shift Control Shaft)[10.1974 - 08.1979] MS83,85,95..3FC |
90386-12031 |
US $2.33 |
||
|
33723J
|
33723J
90206-12013
Washer, Wave (For Floor Shift Control Rod Setting)
[10.1974 - 08.1979] MS83,85,95..3FC |
90206-12013 |
— | ||
|
35506A
|
35506A
90389-08005 Bushing(For Gear Selecting Rod)[11.1976 - 08.1979] MS83,85,95..3FC |
90389-08005 |
from US $1.79 |
||
|
35506A
|
35506A
90999-99001 Bush (For Column Shift Control Shaft)[10.1974 - 11.1976] MS83,85,95..3FC |
90999-99001 |
US $7.36 |
||
|
35506B
|
35506B
90480-17177 Grommet (For Transmission Control Rod)[11.1976 - 08.1979] MS83,85,95..3FC |
90480-17177 |
from US $2.40 |
||
|
35569A
|
35569A
90240-08120 Pin, W/hole (For Transmission Control Rod)[11.1976 - 08.1979] MS83,85,95..3FC |
90240-08120 |
US $1.93 |
||
|
35569F
|
35569F
33702-30040
Rod, Transmission Control, 1St (For Floor Shift)
[11.1976 - 08.1979] MS83,85,95..3FC |
33702-30040 |
— | ||
|
35569F
|
35569F
35569-30071
Rod, Transmission Control, 1St (For Floor Shift)
[10.1974 - 11.1976] MS83,85,95..3FC |
35569-30071 |
— | ||
|
35970F
|
35970F
35907-30110
Housing Assy, Position Indicator
[10.1974 - 11.1976] MS83,85,95..LHD..3FC |
35907-30110 |
— | ||
|
35970F
|
35970F
35907-30170
Housing Assy, Position Indicator
[11.1976 - 08.1979] MS83,85,95..LHD..3FC |
35907-30170 |
— | ||
|
9020110089
|
9020110089
90201-10089
Washer, Plate(For Steering Tilt Lever)
|
90201-10089 |
— | ||
| replacement | |||||
|
9020110089
|
9020110089
90201-10283 Washer, Plate(For Steering Tilt Lever) |
90201-10283 |
US $2.88 |
||
|
9166640618
|
9166640618
91666-40618
New Genuine Part
|
91666-40618 |
— | ||
| replacement | |||||
|
9166640618
|
9166640618
91661-60616 BOLT |
91661-60616 |
from US $0.72 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9461110501
|
9461110501
94611-10501 New Genuine Part |
94611-10501 |
US $0.61 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
US $1.28 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $0.96 |
||
