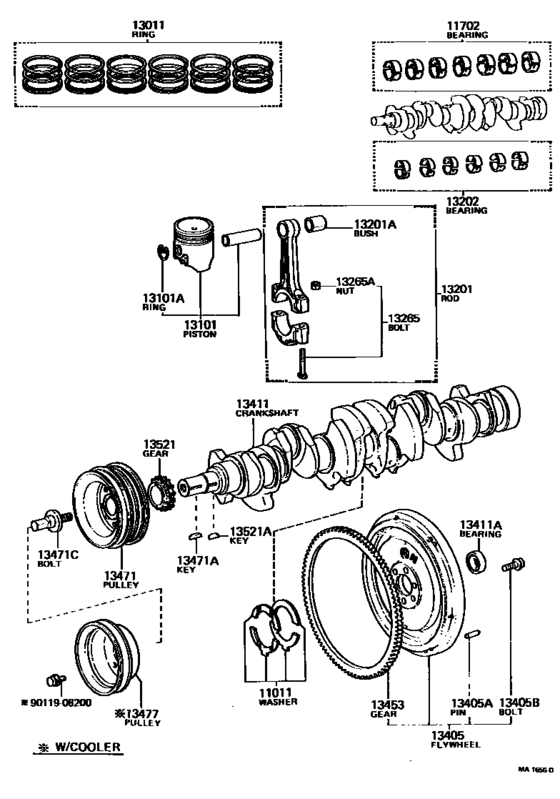

Crankshaft & Piston ([11.1976 - 08.1979] (7604-7611)4M..MS83,85..ARL ; (7611-7908)4M) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1974
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-45010 Washer Set, Crankshaft ThrustCRANKSHAFT THRUST [10.1974 - 08.1979] 4M..MS8#,95 STD,STD |
11011-45010 |
US $25.92 |
||
| replacement | |||||
|
11011
|
11011
11011-43010 Washer Set, Crankshaft Thrust[10.1974 - 08.1979] 4M..MS8#,95 STD,STD |
11011-43010 |
US $26.56 |
||
|
11011
|
11011
11012-45010
Washer Set, Crankshaft Thrust
[10.1974 - 08.1979] 4M..MS8#,95 O/S 0.125,O/S 0.125 |
11012-45010 |
— | ||
| replacement | |||||
|
11011
|
11011
11012-43010
Washer Set, Crankshaft Thrust
[10.1974 - 08.1979] 4M..MS8#,95 O/S 0.125,O/S 0.125 |
11012-43010 |
— | ||
|
11011
|
11011
11013-45010
Washer Set, Crankshaft Thrust
[10.1974 - 08.1979] 4M..MS8#,95 O/S 0.250,O/S 0.25 |
11013-45010 |
— | ||
| replacement | |||||
|
11011
|
11011
11013-43010
Washer Set, Crankshaft Thrust
[10.1974 - 08.1979] 4M..MS8#,95 O/S 0.250,O/S 0.25 |
11013-43010 |
— | ||
|
11702
|
11702
11702-45011
Bearing Set, Crankshaft
[10.1974 - 08.1979] 4M..MS8#,95 STD,STD |
11702-45011 |
— | ||
|
11702
|
11702
11703-45011 Bearing Set, Crankshaft[10.1974 - 08.1979] 4M..MS8#,95 U/S 0.05,U/S 0.05 |
11703-45011 |
US $301.39 |
||
|
11702
|
11702
11704-45011
Bearing Set, Crankshaft
[10.1974 - 08.1979] 4M..MS8#,95 U/S 0.25,U/S 0.25 |
11704-45011 |
— | ||
|
11702
|
11702
11705-45011
Bearing Set, Crankshaft
[10.1974 - 08.1979] 4M..MS8#,95 U/S 0.50,U/S 0.50 |
11705-45011 |
— | ||
|
13011
|
13011
13011-45021
Ring Set, Piston
[10.1974 - 08.1979] 4M..MS8#,95 STD,STD |
13011-45021 |
— | ||
|
13011
|
13011
13013-45021
Ring Set, Piston
[10.1974 - 08.1979] 4M..MS8#,95 O/S 0.50,O/S 0.50 |
13013-45021 |
— | ||
|
13011
|
13011
13014-45021 Ring Set, PistonPISTON [10.1974 - 08.1979] 4M..MS8#,95 O/S 0.75,O/S 0.75 |
13014-45021 |
US $302.85 |
||
|
13011
|
13011
13015-45021 Ring Set, PistonPISTON [10.1974 - 08.1979] 4M..MS8#,95 O/S 1.00,O/S 1.00 |
13015-45021 |
US $302.85 |
||
|
13101
|
13101
13101-45011 Piston Sub-Assy, W/pinW/PIN [10.1974 - 04.1976] 4M..MS8#,95 STD |
13101-45011 |
US $97.55 |
||
|
13101
|
13101
13101-45021
Piston Sub-Assy, W/pin
[11.1976 - 08.1979] 4M..MS8#,95 STD,STD |
13101-45021 |
— | ||
|
13101
|
13101
13103-45011
Piston Sub-Assy, W/pin
[10.1974 - 04.1976] 4M..MS8#,95 O/S 0.50 |
13103-45011 |
— | ||
|
13101
|
13101
13103-45021
Piston Sub-Assy, W/pin
[11.1976 - 08.1979] 4M..MS8#,95 O/S 0.50,O/S 0.50 |
13103-45021 |
— | ||
|
13101
|
13101
13104-45011 Piston Sub-Assy, W/pinW/PIN [10.1974 - 04.1976] 4M..MS8#,95 O/S 0.75 |
13104-45011 |
US $97.55 |
||
|
13101
|
13101
13104-45021 Piston Sub-Assy, W/pinW/PIN [11.1976 - 08.1979] 4M..MS8#,95 O/S 0.75,O/S 0.75 |
13104-45021 |
US $107.74 |
||
|
13101
|
13101
13105-45011 Piston Sub-Assy, W/pinW/PIN [10.1974 - 04.1976] 4M..MS8#,95 O/S 1.00 |
13105-45011 |
US $97.55 |
||
|
13101
|
13101
13105-45021
Piston Sub-Assy, W/pin
[11.1976 - 08.1979] 4M..MS8#,95 O/S 1.00,O/S 1.00 |
13105-45021 |
— | ||
|
13101A
|
13101A
90521-25052 Ring, Hole Snap(For Piston Pin)[10.1974 - 08.1979] 5R..RS80; 4M..MS8#,95 |
90521-25052 |
US $2.48 |
||
|
13201
|
13201
13201-41011 Rod Sub-Assy, Connecting[10.1974 - 04.1975] 4M..MS8#,95 |
13201-41011 |
US $179.09 |
||
|
13201
|
13201
13201-45010 Rod Sub-Assy, Connecting[04.1975 - 08.1979] 4M..MS8#,95 |
13201-45010 |
US $215.49 |
||
| replacement | |||||
|
13201
|
13201
13201-49015 Rod Sub-Assy, Connecting[04.1975 - 08.1979] 4M..MS8#,95 |
13201-49015 |
US $214.03 |
||
|
13201A
|
13201A
90999-73066 Bush(For Connecting Rod Small End)[10.1974 - 08.1979] 4M..MS8#,95 |
90999-73066 |
US $7.16 |
||
|
13202
|
13202
13202-45010
Bearing, Connecting Rod
[10.1974 - 04.1975] 4M..MS8#,95 STD |
13202-45010 |
— | ||
| replacement | |||||
|
13202
|
13202
13202-45011
Bearing, Connecting Rod
[10.1974 - 04.1975] 4M..MS8#,95 STD |
13202-45011 |
— | ||
|
13202
|
13202
13202-45011
Bearing, Connecting Rod
[04.1975 - 08.1979] 4M..MS8#,95 STD,STD |
13202-45011 |
— | ||
|
13202
|
13202
13203-45010
Bearing Set, Connecting Rod
[10.1974 - 04.1975] 4M..MS8#,95 U/S 0.05 |
13203-45010 |
— | ||
| replacement | |||||
|
13202
|
13202
13203-45011 Bearing Set, Connecting Rod[10.1974 - 04.1975] 4M..MS8#,95 U/S 0.05 |
13203-45011 |
US $160.16 |
||
|
13202
|
13202
13203-45011 Bearing Set, Connecting Rod[04.1975 - 08.1979] 4M..MS8#,95 U/S 0.05,U/S 0.05 |
13203-45011 |
US $160.16 |
||
|
13202
|
13202
13204-45010
Bearing Set, Connecting Rod
[10.1974 - 04.1975] 4M..MS8#,95 U/S 0.25 |
13204-45010 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-45011
Bearing Set, Connecting Rod
[10.1974 - 04.1975] 4M..MS8#,95 U/S 0.25 |
13204-45011 |
— | ||
|
13202
|
13202
13204-45011
Bearing Set, Connecting Rod
[04.1975 - 08.1979] 4M..MS8#,95 U/S 0.25,U/S 0.25 |
13204-45011 |
— | ||
|
13202
|
13202
13205-45010
Bearing Set, Connecting Rod
[10.1974 - 04.1975] 4M..MS8#,95 U/S 0.50 |
13205-45010 |
— | ||
| replacement | |||||
|
13202
|
13202
13205-45011
Bearing Set, Connecting Rod
[10.1974 - 04.1975] 4M..MS8#,95 U/S 0.50 |
13205-45011 |
— | ||
|
13202
|
13202
13205-45011
Bearing Set, Connecting Rod
[04.1975 - 08.1979] 4M..MS8#,95 U/S 0.50,U/S 0.50 |
13205-45011 |
— | ||
|
13265
|
13265
13265-49025
Bolt, Connecting Rod
[04.1975 - 08.1979] 4M..MS8#,95 |
13265-49025 |
— | ||
|
13265
|
13265
90910-02044 Bolt, Connecting Rod[10.1974 - 04.1975] 4M..MS8#,95 |
90910-02044 |
US $3.35 |
||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[04.1975 - 08.1979] 4M..MS8#,95 |
90170-09195 |
US $3.20 |
||
|
13405
|
13405
13405-49105
Flywheel Sub-Assy
[10.1974 - 11.1976] 4M..MS8#,95..MTM N=115 |
13405-49105 |
— | ||
|
13405
|
13405
13405-49115
Flywheel Sub-Assy
[11.1976 - 08.1979] 4M..MS8#,95..MTM N=115 |
13405-49115 |
— | ||
|
13405A
|
13405A
90250-08054 Pin, Straight[10.1974 - 08.1979] 5R..RS80 L=23,OD=8,L=23,OD=8; 4M..MS8#,95..MTM L=23,OD=8,L=23,OD=8 |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[10.1974 - 08.1979] 5R..RS80 10-1.25PX26-18; 4M..MS8#,95..MTM 10-1.25PX26-18 |
90105-10042 |
from US $1.31 |
||
|
13411
|
13411
13411-45011 Crankshaft[10.1974 - 02.1975] 4M..MS8#,95 |
13411-45011 |
US $1,587.04 |
||
| replacements | |||||
|
13411
|
13411
13411-45013 Crankshaft[10.1974 - 02.1975] 4M..MS8#,95 |
13411-45013 |
US $1,820 |
||
|
13411
|
13411
90105-16001 Bolt(For Crankshaft Pulley Set)[10.1974 - 02.1975] 4M..MS8#,95 |
90105-16001 |
US $10.05 |
||
|
13411
|
13411
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[10.1974 - 02.1975] 4M..MS8#,95 |
90280-05003 |
US $2.62 |
||
|
13411
|
13411
13411-45012 Crankshaft[02.1975 - 08.1979] 4M..MS8#,95 |
13411-45012 |
US $1,747.20 |
||
| replacements | |||||
|
13411
|
13411
13411-45013 Crankshaft[02.1975 - 08.1979] 4M..MS8#,95 |
13411-45013 |
US $1,820 |
||
|
13411
|
13411
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[02.1975 - 08.1979] 4M..MS8#,95 |
90280-05003 |
US $2.62 |
||
|
13411A
|
13411A
97143-06201
Bearing(For Input Shaft Front)
[10.1974 - 08.1979] 5R..RS80 6201 VV C3; 4M..MS8#,95..MTM 6201 VV C3 |
97143-06201 |
— | ||
| replacement | |||||
|
13411A
|
13411A
90363-12002
Bearing (For Input Shaft)
[10.1974 - 08.1979] 5R..RS80 6201 VV C3; 4M..MS8#,95..MTM 6201 VV C3 |
90363-12002 |
— | ||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[10.1974 - 08.1979] 5R..RS80 N=115; 4M..MS8#,95..MTM N=115 |
13453-20010 |
US $67.79 |
||
|
13471
|
13471
13407-41011
Pulley, Crankshaft
[10.1974 - 04.1976] 4M..MS8#,95..BTP,DLX,STD L/POWER STEERING |
13407-41011 |
— | ||
|
13471
|
13471
13407-41020
Pulley, Crankshaft
[07.1977 - 08.1979] 4M..MS8#,95 |
13407-41020 |
— | ||
|
13471
|
13471
13407-42011
Pulley, Crankshaft
[10.1974 - 04.1976] 4M..MS8#,95 W/POWER STEERING |
13407-42011 |
— | ||
|
13471
|
13471
13407-45010
Pulley, Crankshaft
[11.1976 - 07.1977] 4M..MS8#,95 |
13407-45010 |
— | ||
|
13471A
|
13471A
90280-05001 Key, Crankshaft(For Crankshaft Pulley Set)[10.1974 - 08.1979] 4M..MS8#,95 |
90280-05001 |
US $3.32 |
||
|
13471C
|
13471C
90105-14052 Bolt(For Crankshaft Pulley Set)[10.1974 - 02.1975] 4M..MS8#,95 14-1.5PX26-21 |
90105-14052 |
US $8.01 |
||
|
13471C
|
13471C
90105-16001 Bolt(For Crankshaft Pulley Set)[02.1975 - 07.1977] 4M..MS8#,95 16-1.5PX26-21 |
90105-16001 |
US $10.05 |
||
|
13471C
|
13471C
90105-16002
Bolt(For Crankshaft Pulley Set)
[07.1977 - 08.1979] 4M..MS8#,95 16-1.5PX26-21 |
90105-16002 |
— | ||
| replacement | |||||
|
13471C
|
13471C
90105-16011
Bolt(For Crankshaft Pulley Set)
[07.1977 - 08.1979] 4M..MS8#,95 16-1.5PX26-21 |
90105-16011 |
— | ||
|
13477
|
13477
88451-30280 Pulley, Crankshaft, No.2CRANKSHAFT, NO.2 [10.1974 - 09.1976] 4M..MS8#,95 W/COOLER |
88451-30280 |
US $94.64 |
||
| replacements | |||||
|
13477
|
13477
90101-08157 Bolt, No.1 (For Center Support Bearing)[10.1974 - 09.1976] 4M..MS8#,95 W/COOLER |
90101-08157 |
US $0.73 |
||
|
13477
|
13477
88451-30281
Pulley, Crankshaft
[10.1974 - 09.1976] 4M..MS8#,95 W/COOLER |
88451-30281 |
— | ||
|
13477
|
13477
88451-30301
Pulley, Crankshaft, No.2
[11.1976 - 07.1977] 4M..MS8#,95 |
88451-30301 |
— | ||
|
13477
|
13477
88451-30302
Pulley, Crankshaft, No.2
[07.1977 - 08.1979] 4M..MS8#,95 |
88451-30302 |
— | ||
|
13521
|
13521
13521-41011 Gear Or Sprocket, Crankshaft Timing[10.1974 - 08.1979] 4M..MS8#,95 N=20 |
13521-41011 |
US $50.38 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[10.1974 - 08.1979] 4M..MS8#,95 |
90280-05010 |
US $4.16 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.24 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
