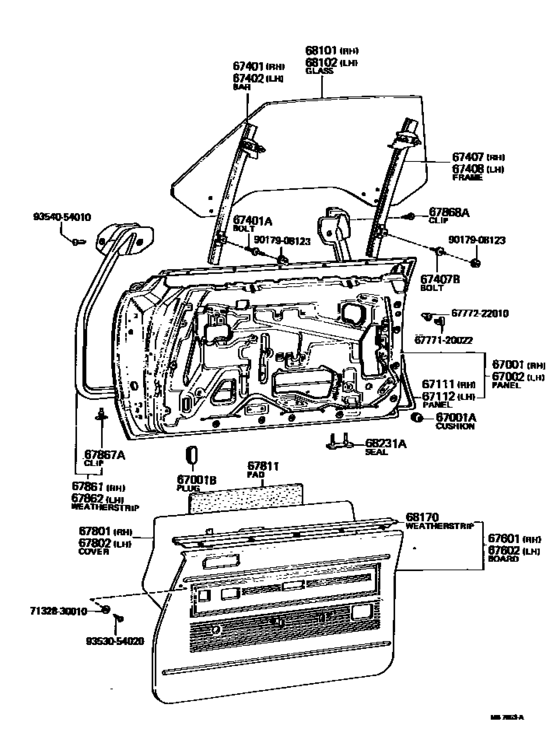

Front Door Panel & Glass ([01.1975 - 08.1979] (7501-7908)2D) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1974
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-30130
Panel Sub-Assy, Front Door, Rh
[10.1974 - 08.1979] MS95..2D |
67001-30130 |
— | ||
|
67001A
|
67001A
90541-09121
Cushion, Front Door Panel
[10.1974 - 08.1979] MS95 |
90541-09121 |
— | ||
|
67001B
|
67001B
90950-01023
Plug, Hole, No.1(For Dash Panel)
[10.1974 - 08.1979] MS8#,95,RS80..BTP,DLX,STD OD=30X53 |
90950-01023 |
— | ||
|
67002
|
67002
67002-30190
Panel Sub-Assy, Front Door, Lh
[10.1974 - 08.1979] MS95..2D |
67002-30190 |
— | ||
|
67002
|
67002
67002-30260
Panel Sub-Assy, Front Door, Lh
[02.1978 - 08.1979] MS95..LHD..2D W/MIRROR HOLE |
67002-30260 |
— | ||
|
67111
|
67111
67111-30100
Panel, Front Door, Outer Rh
[10.1974 - 08.1979] MS95..2D |
67111-30100 |
— | ||
|
67112
|
67112
67112-30140
Panel, Front Door, Outer Lh
[10.1974 - 08.1979] MS95..2D |
67112-30140 |
— | ||
|
67401
|
67401
67401-30060
Bar Sub-Assy, Front Door Window, Front Rh
[10.1974 - 08.1979] MS95..2D |
67401-30060 |
— | ||
|
67401A
|
67401A
90116-08078 Bolt, Stud(For Front Door Division Bar)STUD(FOR FRONT DOOR DIVISION BAR) [08.1978 - 08.1979] MS95 L=24.0 |
90116-08078 |
US $3.35 |
||
| replacement | |||||
|
67401A
|
67401A
90116-08313
Bolt, Stud(For Rear Door Window Frame)
[08.1978 - 08.1979] MS95 L=24.0 |
90116-08313 |
— | ||
|
67401A
|
67401A
90116-08311
Bolt, Stud(For Rear Door Window Frame)
[10.1974 - 08.1978] MS95 L=17.5 |
90116-08311 |
— | ||
|
67401A
|
67401A
90116-08313
Bolt, Stud(For Rear Door Window Frame)
[10.1974 - 08.1978] MS95 L=24.0 |
90116-08313 |
— | ||
|
67402
|
67402
67402-30060
Bar Sub-Assy, Front Door Window, Front Lh
[10.1974 - 08.1979] MS95..2D |
67402-30060 |
— | ||
|
67407
|
67407
67403-30030
Frame Sub-Assy, Front Door, Rear Lower Rh
[10.1974 - 08.1979] MS95..2D |
67403-30030 |
— | ||
|
67407B
|
67407B
90116-08311
Bolt, Stud(For Rear Door Window Frame)
[10.1974 - 08.1979] MS95 L=17.5 |
90116-08311 |
— | ||
|
67407B
|
67407B
90116-08313
Bolt, Stud(For Rear Door Window Frame)
[10.1974 - 08.1979] MS95 L=24.0 |
90116-08313 |
— | ||
|
67408
|
67408
67404-30030
Frame Sub-Assy, Front Door, Rear Lower Lh
[10.1974 - 08.1979] MS95..2D |
67404-30030 |
— | ||
|
67601
|
67601
67610-30651-03
Board Sub-Assy, Front Door Trim, Rh
[11.1976 - 02.1978] MS95..2D GRAY,GRAY,TRIM1# |
67610-30651-03 |
— | ||
|
67601
|
67601
67610-30651-04
Board Sub-Assy, Front Door Trim, Rh
[11.1976 - 02.1978] MS95..2D BLUE,BLUE,TRIM8# |
67610-30651-04 |
— | ||
|
67601
|
67601
67610-30651-05
Board Sub-Assy, Front Door Trim, Rh
[02.1978 - 08.1979] MS95..2D BEIGE,BEIGE,TRIM4# |
67610-30651-05 |
— | ||
|
67601
|
67601
67610-30660-03
Board Sub-Assy, Front Door Trim, Rh
[10.1974 - 11.1976] MS95..LHD..2D GRAY,GRAY,TRIM1# |
67610-30660-03 |
— | ||
|
67601
|
67601
67610-30660-06
Board Sub-Assy, Front Door Trim, Rh
[10.1974 - 11.1976] MS95..LHD..2D BROWN,BROWN,TRIM4# |
67610-30660-06 |
— | ||
|
67602
|
67602
67620-30580-03
Board Sub-Assy, Front Door Trim, Lh
[10.1974 - 11.1976] MS95..LHD..2D GRAY,GRAY,TRIM1# |
67620-30580-03 |
— | ||
|
67602
|
67602
67620-30580-06
Board Sub-Assy, Front Door Trim, Lh
[10.1974 - 11.1976] MS95..LHD..2D BROWN,BROWN,TRIM4# |
67620-30580-06 |
— | ||
|
67602
|
67602
67620-30611-03
Board Sub-Assy, Front Door Trim, Lh
[11.1976 - 02.1978] MS95..2D GRAY,GRAY,TRIM1# |
67620-30611-03 |
— | ||
|
67602
|
67602
67620-30611-04
Board Sub-Assy, Front Door Trim, Lh
[11.1976 - 02.1978] MS95..2D BLUE,BLUE,TRIM8# |
67620-30611-04 |
— | ||
|
67602
|
67602
67620-30611-05
Board Sub-Assy, Front Door Trim, Lh
[02.1978 - 08.1979] MS95..2D BEIGE,BEIGE,TRIM4# |
67620-30611-05 |
— | ||
|
67801
|
67801
67831-30110
Cover Sub-Assy, Front Door Hole, No.1 Rh
[10.1974 - 08.1979] MS95..2D |
67831-30110 |
— | ||
|
67802
|
67802
67831-30110
Cover Sub-Assy, Front Door Hole, No.1 Rh
[10.1974 - 08.1979] MS95..2D |
67831-30110 |
— | ||
|
67811
|
67811
67811-12020 Pad, Front Door SilencerFRONT DOOR SILENCER [10.1974 - 08.1979] MS8#,95,RS80 |
67811-12020 |
US $19.80 |
||
| replacement | |||||
|
67811
|
67811
67811-12010 Pad, Front Door Silencer[10.1974 - 08.1979] MS8#,95,RS80 |
67811-12010 |
US $18.54 |
||
|
67861
|
67861
67861-30080
Weatherstrip, Front Door, Rh
[10.1974 - 08.1979] MS95..2D |
67861-30080 |
— | ||
|
67862
|
67862
67862-30080
Weatherstrip, Front Door, Lh
[10.1974 - 08.1979] MS95..2D |
67862-30080 |
— | ||
|
67867A
|
67867A
67868-30040 Retainer, Roof Side Rail, Rh[10.1974 - 08.1979] MS8#,95,RS80 |
67868-30040 |
US $1.76 |
||
|
67868A
|
67868A
67869-30020 Clip, Headlamp Door Filler[10.1974 - 08.1979] MS95 |
67869-30020 |
US $3.52 |
||
|
68101
|
68101
68111-30190
Glass Sub-Assy, Front Door, Rh
[10.1974 - 08.1979] MS95..2D TN.TP.T=5.0 |
68111-30190 |
— | ||
|
68102
|
68102
68112-30120
Glass Sub-Assy, Front Door, Lh
[10.1974 - 08.1979] MS95..2D TN.TP.T=5.0 |
68112-30120 |
— | ||
|
68170
|
68170
68170-30090
Weatherstrip Assy, Front Door Glass, Inner
[10.1974 - 08.1979] MS95..2D RH. |
68170-30090 |
— | ||
|
68170
|
68170
68220-30070
Weatherstrip Assy, Front Door Glass, Inner
[10.1974 - 08.1979] MS95..2D LH. |
68220-30070 |
— | ||
|
68231A
|
68231A
68231-30020
Seal, Front Door Drain Hole Dust
[10.1974 - 08.1979] MS95..2D |
68231-30020 |
— | ||
|
6777120022
|
6777120022
67771-20022 Retainer(For Front Door Trim Board) |
67771-20022 |
from US $1.33 |
||
|
6777222010
|
6777222010
67772-22010 Clip(For Front Door Trim Board) |
67772-22010 |
from US $1.85 |
||
|
7132830010
|
7132830010
71328-30010
Washer, Front Seat Back Pocket Setting, Rh
|
71328-30010 |
— | ||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9353054020
|
9353054020
93530-54020 New Genuine Part |
93530-54020 |
US $0.87 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
