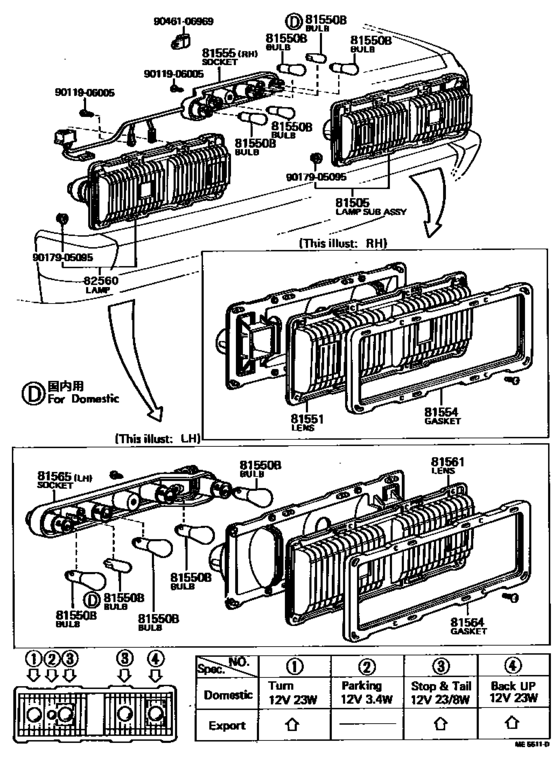

Rear Combination Lamp ([11.1976 - 08.1979] (7611-7908)MS95) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1974
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-39045
Lamp Sub-Assy, Rear Combination, Rh
[11.1976 - 08.1979] MS95 AMBER-RED-CLEAR |
81505-39045 |
— | ||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[10.1974 - 11.1976] MS8#,95,RS80 12V 21W,12V 21W |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[11.1976 - 08.1979] MS95 12V 23W,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[11.1976 - 08.1979] MS95 12V 23W,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[10.1974 - 11.1976] MS8#,95,RS80 12V 21/5W,12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81550B
|
81550B
99132-21230 Bulb (For Front Turn Signal Lamp)[11.1976 - 08.1979] MS95 12V 23/8W,12V 23/8W |
99132-21230 |
US $3.04 |
||
|
81551
|
81551
81551-30380 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [10.1974 - 11.1976] MS95 AMBER-RED |
81551-30380 |
US $77.17 |
||
|
81551
|
81551
81551-30410 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [11.1976 - 08.1979] MS95 AMBER-RED-CLEAR |
81551-30410 |
US $81.54 |
||
|
81551
|
81551
81557-30380 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [10.1974 - 11.1976] MS95 CLEAR |
81557-30380 |
US $10.48 |
||
|
81554
|
81554
81552-30380
Gasket, Rear Combination Lamp Body, Rh
[10.1974 - 11.1976] MS95 FOR STOP,TAIL & TURN |
81552-30380 |
— | ||
|
81554
|
81554
81552-30410 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [11.1976 - 08.1979] MS95 |
81552-30410 |
US $25.04 |
||
|
81554
|
81554
81558-30380
Gasket, Rear Combination Lamp Body, Rh
[10.1974 - 11.1976] MS95 FOR BACK UP |
81558-30380 |
— | ||
|
81555
|
81555
81555-30390
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[10.1974 - 11.1976] MS95 |
81555-30390 |
— | ||
|
81555
|
81555
81555-30420
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[11.1976 - 08.1979] MS95 |
81555-30420 |
— | ||
|
81561
|
81561
81561-30340 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [11.1976 - 08.1979] MS95 AMBER-RED-CLEAR |
81561-30340 |
US $81.54 |
||
|
81561
|
81561
81561-30370 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [10.1974 - 11.1976] MS95 AMBER-RED |
81561-30370 |
US $77.17 |
||
|
81561
|
81561
81567-30370 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [10.1974 - 11.1976] MS95 CLEAR |
81567-30370 |
US $10.48 |
||
|
81564
|
81564
81552-30380
Gasket, Rear Combination Lamp Body, Rh
[10.1974 - 11.1976] MS95 FOR STOP,TAIL & TURN |
81552-30380 |
— | ||
|
81564
|
81564
81552-30410 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [11.1976 - 08.1979] MS95 |
81552-30410 |
US $25.04 |
||
|
81564
|
81564
81568-30370 Gasket, Rear Combination Lamp Body, LhREAR COMBINATION LAMP BODY, LH [10.1974 - 11.1976] MS95 FOR BACK UP |
81568-30370 |
US $10.77 |
||
|
81565
|
81565
81565-30380
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[10.1974 - 11.1976] MS95 |
81565-30380 |
— | ||
|
81565
|
81565
81565-30390
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[11.1976 - 08.1979] MS95 |
81565-30390 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9046106969
|
9046106969
90461-06969 New Genuine Part |
90461-06969 |
US $2.33 |
||
