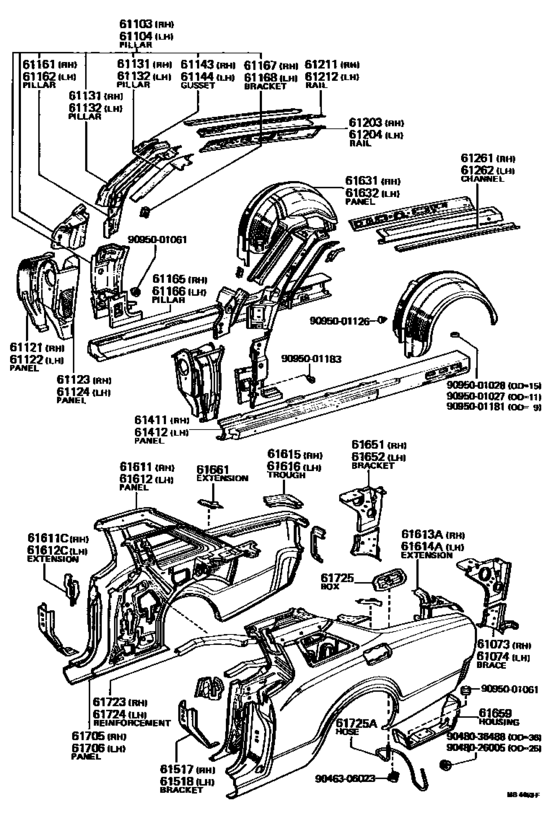

Side Member ([10.1974 - 08.1979] (7410-7908)2D) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- Europe
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1974
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61073
|
61073
61073-30010
Brace Sub-Assy, Quarter Wheel House, Rh
[10.1974 - 08.1979] MS85,95,RS80 |
61073-30010 |
— | ||
|
61074
|
61074
61074-30010
Brace Sub-Assy, Quarter Wheel House, Lh
[10.1974 - 08.1979] MS85,95,RS80 |
61074-30010 |
— | ||
|
61103
|
61103
61021-30060
Pillar Sub-Assy, Front Body, Rh
[10.1974 - 08.1979] MS95 |
61021-30060 |
— | ||
|
61104
|
61104
61022-30060
Pillar Sub-Assy, Front Body, Lh
[10.1974 - 08.1979] MS95 |
61022-30060 |
— | ||
|
61121
|
61121
61121-30070
Panel, Cowl Side, Outer Rh
[10.1974 - 08.1979] MS8#,95,RS80 |
61121-30070 |
— | ||
|
61122
|
61122
61122-30080
Panel, Cowl Side, Outer Lh
[10.1974 - 08.1979] MS8#,95,RS80 |
61122-30080 |
— | ||
|
61123
|
61123
61041-30020
Panel, Cowl Side Lower, Rh
[10.1974 - 08.1979] MS8#,95,RS80..LHD |
61041-30020 |
— | ||
|
61124
|
61124
61042-30020
Panel, Cowl Side Lower, Lh
[10.1974 - 08.1979] MS8#,95,RS80..LHD |
61042-30020 |
— | ||
|
61131
|
61131
61131-30090
Pillar, Front Body, Upper Outer Rh
[10.1974 - 08.1979] MS95 OUTER |
61131-30090 |
— | ||
|
61131
|
61131
61147-30020
Pillar, Front Body, Upper Outer Rh
[10.1974 - 08.1979] MS95 INNER |
61147-30020 |
— | ||
|
61132
|
61132
61132-30110
Pillar, Front Body, Upper Outer Lh
[10.1974 - 08.1979] MS95 OUTER |
61132-30110 |
— | ||
|
61132
|
61132
61148-30020
Pillar, Front Body, Upper Outer Lh
[10.1974 - 08.1979] MS95 INNER |
61148-30020 |
— | ||
|
61143
|
61143
61143-30020
Gusset, Front Pillar Door Opening, Upper Rh
[10.1974 - 09.1975] MS95 |
61143-30020 |
— | ||
|
61144
|
61144
61144-30020
Gusset, Front Pillar Door Opening, Upper Lh
[10.1974 - 09.1975] MS95 |
61144-30020 |
— | ||
|
61161
|
61161
61161-30080
Pillar, Front Body, Upper Inner Rh
[10.1974 - 08.1979] MS95 |
61161-30080 |
— | ||
|
61162
|
61162
61162-30090
Pillar, Front Body, Upper Inner Lh
[10.1974 - 08.1979] MS95 |
61162-30090 |
— | ||
|
61165
|
61165
61163-30040
Pillar, Front Body Lower Inner, Rh
[10.1974 - 08.1979] MS8#,95,RS80 |
61163-30040 |
— | ||
|
61166
|
61166
61164-30040
Pillar, Front Body Lower Inner, Lh
[10.1974 - 08.1979] MS8#,95,RS80 |
61164-30040 |
— | ||
|
61167
|
61167
61183-30010 Bracket, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [10.1974 - 08.1979] MS8#,95,RS80 |
61183-30010 |
US $11.50 |
||
| replacement | |||||
|
61167
|
61167
61183-30020
Bracket, Instrument Panel To Cowl Side, Rh
[10.1974 - 08.1979] MS8#,95,RS80 |
61183-30020 |
— | ||
|
61168
|
61168
61183-30010 Bracket, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [10.1974 - 08.1979] MS8#,95,RS80 |
61183-30010 |
US $11.50 |
||
| replacement | |||||
|
61168
|
61168
61183-30020
Bracket, Instrument Panel To Cowl Side, Rh
[10.1974 - 08.1979] MS8#,95,RS80 |
61183-30020 |
— | ||
|
61203
|
61203
61231-30070
Rail Sub-Assy, Roof Side, Inner Rh
[10.1974 - 08.1979] MS95..2D |
61231-30070 |
— | ||
|
61204
|
61204
61232-30070
Rail Sub-Assy, Roof Side, Inner Lh
[10.1974 - 08.1979] MS95..2D |
61232-30070 |
— | ||
|
61211
|
61211
61211-30070
Rail, Roof Side, Outer Rh
[10.1974 - 08.1979] MS95..2D |
61211-30070 |
— | ||
|
61212
|
61212
61212-30070
Rail, Roof Side, Outer Lh
[10.1974 - 08.1979] MS95..2D |
61212-30070 |
— | ||
|
61261
|
61261
61261-30070
Channel, Roof Drip, Rh
[10.1974 - 08.1979] MS95..2D |
61261-30070 |
— | ||
|
61262
|
61262
61262-30070
Channel, Roof Drip, Lh
[10.1974 - 08.1979] MS95..2D |
61262-30070 |
— | ||
|
61411
|
61411
61401-30040
Panel, Rocker, Outer Rh
[10.1974 - 08.1979] MS95..2D |
61401-30040 |
— | ||
|
61412
|
61412
61402-30040
Panel, Rocker, Outer Lh
[10.1974 - 08.1979] MS95..2D |
61402-30040 |
— | ||
|
61517
|
61517
61503-30240
Bracket, Quarter Lock Pillar, Lower Rh
[10.1974 - 08.1979] MS95..2D |
61503-30240 |
— | ||
|
61518
|
61518
61504-30290
Bracket, Quarter Lock Pillar, Lower Lh
[10.1974 - 08.1979] MS95..2D |
61504-30290 |
— | ||
|
61611
|
61611
61611-30350
Panel, Quarter, Rh
[10.1974 - 08.1979] MS95..2D |
61611-30350 |
— | ||
|
61611C
|
61611C
61623-30020
Extension, Quarter Panel, Rh
[10.1974 - 08.1979] MS95..2D |
61623-30020 |
— | ||
|
61612
|
61612
61612-30460
Panel, Quarter, Lh
[10.1974 - 08.1979] MS95..2D |
61612-30460 |
— | ||
|
61612C
|
61612C
61624-30020
Extension, Quarter Panel, Lh
[10.1974 - 08.1979] MS95..2D |
61624-30020 |
— | ||
|
61613A
|
61613A
61625-30010
Extension, Quarter Panel Rear, Rh
[10.1974 - 11.1976] MS95 |
61625-30010 |
— | ||
|
61613A
|
61613A
61625-30011
Extension, Quarter Panel Rear, Rh
[11.1976 - 08.1979] MS95 |
61625-30011 |
— | ||
|
61614A
|
61614A
61626-30010
Extension, Quarter Panel, Rear Lh
[10.1974 - 11.1976] MS95 |
61626-30010 |
— | ||
|
61614A
|
61614A
61626-30011
Extension, Quarter Panel, Rear Lh
[11.1976 - 08.1979] MS95 |
61626-30011 |
— | ||
|
61615
|
61615
61621-30040
Trough, Luggage Compartment Opening, Rh
[10.1974 - 08.1979] MS95 |
61621-30040 |
— | ||
|
61616
|
61616
61622-30030
Trough, Luggage Compartment Opening, Lh
[10.1974 - 08.1979] MS95 |
61622-30030 |
— | ||
|
61631
|
61631
61603-30905 Panel, Quarter Wheel House, RhQUARTER WHEEL HOUSE, RH [10.1974 - 08.1979] MS85,95,RS80 |
61603-30905 |
US $382.93 |
||
| replacement | |||||
|
61631
|
61631
61603-30908
Panel, Quarter Wheel House, Rh
[10.1974 - 08.1979] MS85,95,RS80 |
61603-30908 |
— | ||
|
61632
|
61632
61604-30905 Panel, Quarter Wheel House, LhQUARTER WHEEL HOUSE, LH [10.1974 - 08.1979] MS85,95,RS80 |
61604-30905 |
US $382.93 |
||
| replacement | |||||
|
61632
|
61632
61604-30908
Panel, Quarter Wheel House, Lh
[10.1974 - 08.1979] MS85,95,RS80 |
61604-30908 |
— | ||
|
61659
|
61659
61627-30040
Housing, Spare Wheel
[10.1974 - 01.1976] MS85,95,RS80 |
61627-30040 |
— | ||
| replacements | |||||
|
61659
|
61659
58794-30011
Carrier Sub-Assy, Jack
[10.1974 - 01.1976] MS85,95,RS80 |
58794-30011 |
— | ||
|
61659
|
61659
61627-30041
Housing, Spare Wheel
[10.1974 - 01.1976] MS85,95,RS80 |
61627-30041 |
— | ||
|
61659
|
61659
61627-30041
Housing, Spare Wheel
[01.1976 - 08.1979] MS85,95,RS80 |
61627-30041 |
— | ||
|
61661
|
61661
61661-30060
Extension, Quarter Panel To Upper Back
[10.1974 - 08.1979] MS95 RH. |
61661-30060 |
— | ||
|
61661
|
61661
61662-30030
Extension, Quarter Panel To Upper Back
[10.1974 - 08.1979] MS95 LH. |
61662-30030 |
— | ||
|
61705
|
61705
61705-30050
Panel Sub-Assy, Roof Side, Inner Rh
[10.1974 - 11.1976] MS95..2D |
61705-30050 |
— | ||
|
61705
|
61705
61705-30051
Panel Sub-Assy, Roof Side, Inner Rh
[11.1976 - 08.1979] MS95..2D |
61705-30051 |
— | ||
|
61706
|
61706
61706-30050
Panel Sub-Assy, Roof Side, Inner Lh
[10.1974 - 11.1976] MS95..2D |
61706-30050 |
— | ||
|
61706
|
61706
61706-30051
Panel Sub-Assy, Roof Side, Inner Lh
[11.1976 - 08.1979] MS95..2D |
61706-30051 |
— | ||
|
61723
|
61723
61723-30030
Reinforcement, Quarter Window Opening, Rear Rh
[10.1974 - 08.1979] MS95..2D |
61723-30030 |
— | ||
|
61724
|
61724
61724-30030
Reinforcement, Quarter Window Opening, Rear Lh
[10.1974 - 08.1979] MS95..2D |
61724-30030 |
— | ||
|
61725
|
61725
61725-30030
Box, Fuel Inlet
[10.1974 - 02.1978] MS95..2D |
61725-30030 |
— | ||
|
61725
|
61725
61725-30060
Box, Fuel Inlet
[02.1978 - 08.1979] MS95..2D |
61725-30060 |
— | ||
|
61725A
|
61725A
90446-07345
Hose(For Fuel Inlet Box)
[10.1974 - 08.1979] MS85,95,RS80 L=850 |
90446-07345 |
— | ||
|
9046306023
|
9046306023
90463-06023
New Genuine Part
|
90463-06023 |
— | ||
|
9048026005
|
9048026005
90480-26005 New Genuine Part |
90480-26005 |
US $3.20 |
||
|
9048036488
|
9048036488
90480-36488
New Genuine Part
|
90480-36488 |
— | ||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001028
|
9095001028
90950-01028 New Genuine Part |
90950-01028 |
US $3.35 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
|
9095001181
|
9095001181
90950-01181 Plug, Hole(For Front Fender Apron) |
90950-01181 |
US $3.52 |
||
|
9095001183
|
9095001183
90950-01183
New Genuine Part
|
90950-01183 |
— | ||
