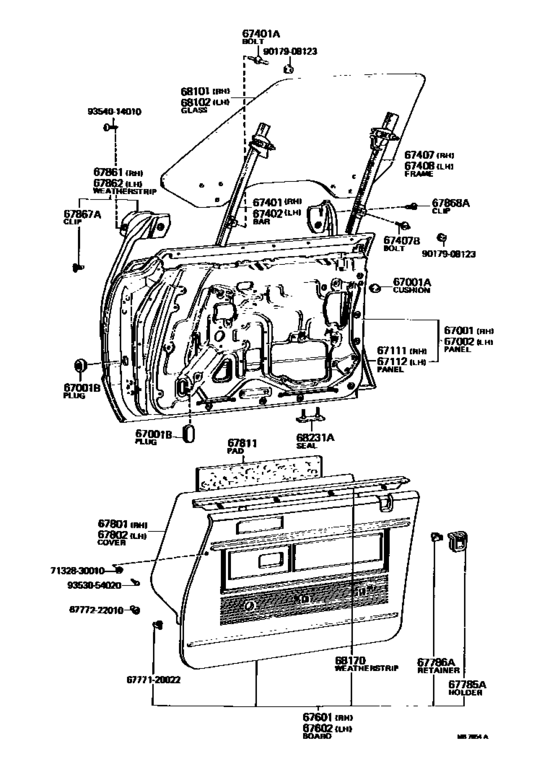

Front Door Panel & Glass ([12.1974 - 08.1979] (7412-7908)MS95..4D) Diagram Toyota CROWN/ MAJESTA
- Year
- 1974 - 1979
- Sales region
- General
- Frame
- MS95
- grade
- DLX
- body
- HT
- ENGINE
- 4M
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 12.1974
- To
- 08.1979
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-30160 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [12.1974 - 08.1979] MS95..4D |
67001-30160 |
US $1,145.87 |
||
|
67001A
|
67001A
90541-09121
Cushion, Front Door Panel
[10.1974 - 08.1979] MS95 |
90541-09121 |
— | ||
|
67001B
|
67001B
90950-01023
Plug, Hole, No.1(For Dash Panel)
[10.1974 - 08.1979] MS8#,95,RS80..BTP,DLX,STD OD=30X53 |
90950-01023 |
— | ||
|
67002
|
67002
67002-30220 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [12.1974 - 08.1979] MS95..4D |
67002-30220 |
US $1,145.87 |
||
|
67111
|
67111
67111-30130
Panel, Front Door, Outer Rh
[12.1974 - 08.1979] MS95..4D |
67111-30130 |
— | ||
|
67112
|
67112
67112-30170
Panel, Front Door, Outer Lh
[12.1974 - 08.1979] MS95..4D |
67112-30170 |
— | ||
|
67401
|
67401
67401-30070 Bar Sub-Assy, Front Door Window, Front RhFRONT DOOR WINDOW, FRONT RH [12.1974 - 08.1979] MS95..4D |
67401-30070 |
US $52.56 |
||
|
67401A
|
67401A
90116-08078 Bolt, Stud(For Front Door Division Bar)STUD(FOR FRONT DOOR DIVISION BAR) [08.1978 - 08.1979] MS95 L=24.0 |
90116-08078 |
US $3.35 |
||
| replacement | |||||
|
67401A
|
67401A
90116-08313
Bolt, Stud(For Rear Door Window Frame)
[08.1978 - 08.1979] MS95 L=24.0 |
90116-08313 |
— | ||
|
67401A
|
67401A
90116-08311
Bolt, Stud(For Rear Door Window Frame)
[10.1974 - 08.1978] MS95 L=17.5 |
90116-08311 |
— | ||
|
67401A
|
67401A
90116-08313
Bolt, Stud(For Rear Door Window Frame)
[10.1974 - 08.1978] MS95 L=24.0 |
90116-08313 |
— | ||
|
67402
|
67402
67402-30070
Bar Sub-Assy, Front Door Window, Front Lh
[12.1974 - 08.1979] MS95..4D |
67402-30070 |
— | ||
|
67407
|
67407
67403-30040
Frame Sub-Assy, Front Door, Rear Lower Rh
[12.1974 - 08.1979] MS95..4D |
67403-30040 |
— | ||
|
67407B
|
67407B
90116-08311
Bolt, Stud(For Rear Door Window Frame)
[10.1974 - 08.1979] MS95 L=17.5 |
90116-08311 |
— | ||
|
67407B
|
67407B
90116-08313
Bolt, Stud(For Rear Door Window Frame)
[10.1974 - 08.1979] MS95 L=24.0 |
90116-08313 |
— | ||
|
67408
|
67408
67404-30040
Frame Sub-Assy, Front Door, Rear Lower Lh
[12.1974 - 08.1979] MS95..4D |
67404-30040 |
— | ||
|
67601
|
67601
67610-30700-03
Board Sub-Assy, Front Door Trim, Rh
[12.1974 - 11.1976] MS95..RHD..4D GRAY,GRAY,TRIM1# |
67610-30700-03 |
— | ||
|
67601
|
67601
67610-30700-06
Board Sub-Assy, Front Door Trim, Rh
[12.1974 - 11.1976] MS95..RHD..4D BROWN,BROWN,TRIM4# |
67610-30700-06 |
— | ||
|
67601
|
67601
67610-30701-03
Board Sub-Assy, Front Door Trim, Rh
[11.1976 - 02.1978] MS95..RHD..4D GRAY,GRAY,TRIM1# |
67610-30701-03 |
— | ||
|
67601
|
67601
67610-30701-04
Board Sub-Assy, Front Door Trim, Rh
[11.1976 - 02.1978] MS95..RHD..4D BLUE,BLUE,TRIM8# |
67610-30701-04 |
— | ||
|
67601
|
67601
67610-30701-05
Board Sub-Assy, Front Door Trim, Rh
[02.1978 - 08.1979] MS95..RHD..4D BEIGE,BEIGE,TRIM4# |
67610-30701-05 |
— | ||
|
67602
|
67602
67620-30620-03
Board Sub-Assy, Front Door Trim, Lh
[12.1974 - 11.1976] MS95..RHD..4D GRAY,GRAY,TRIM1# |
67620-30620-03 |
— | ||
|
67602
|
67602
67620-30620-06
Board Sub-Assy, Front Door Trim, Lh
[12.1974 - 11.1976] MS95..RHD..4D BROWN,BROWN,TRIM4# |
67620-30620-06 |
— | ||
|
67602
|
67602
67620-30621-03
Board Sub-Assy, Front Door Trim, Lh
[11.1976 - 02.1978] MS95..RHD..4D GRAY,GRAY,TRIM1# |
67620-30621-03 |
— | ||
|
67602
|
67602
67620-30621-04 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [11.1976 - 02.1978] MS95..RHD..4D BLUE,BLUE,TRIM8# |
67620-30621-04 |
US $372.74 |
||
| replacement | |||||
|
67602
|
67602
67620-30621-14
Board Sub-Assy, Front Door Trim, Lh
[11.1976 - 02.1978] MS95..RHD..4D BLUE,BLUE,TRIM8# |
67620-30621-14 |
— | ||
|
67602
|
67602
67620-30621-05
Board Sub-Assy, Front Door Trim, Lh
[02.1978 - 08.1979] MS95..RHD..4D BEIGE,BEIGE,TRIM4# |
67620-30621-05 |
— | ||
|
67785A
|
67785A
67785-30030-01 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [10.1974 - 11.1976] MS8#,95,RS80..4D BLACK,BLACK |
67785-30030-01 |
US $17.91 |
||
|
67785A
|
67785A
67785-30030-03 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [11.1976 - 08.1979] MS8#,95,RS80..4D GRAY,GRAY,TRIM1# |
67785-30030-03 |
US $17.91 |
||
|
67785A
|
67785A
67785-30030-04 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [11.1976 - 08.1979] MS8#,95,RS80..4D BLUE,BLUE,TRIM8# |
67785-30030-04 |
US $17.91 |
||
|
67785A
|
67785A
67785-30030-05 Holder, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [11.1976 - 08.1979] MS8#,95,RS80..4D BEIGE,BEIGE,TRIM4# |
67785-30030-05 |
US $17.91 |
||
|
67786A
|
67786A
67786-30020 Retainer, Door Locking Button Collar(For Front Door)DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) [10.1974 - 08.1979] MS8#,95,RS80..4D |
67786-30020 |
US $3.35 |
||
|
67801
|
67801
67831-30120
Cover Sub-Assy, Front Door Hole, No.1 Rh
[12.1974 - 08.1979] MS95..4D |
67831-30120 |
— | ||
|
67802
|
67802
67831-30120
Cover Sub-Assy, Front Door Hole, No.1 Rh
[12.1974 - 08.1979] MS95..4D |
67831-30120 |
— | ||
|
67811
|
67811
67811-12020 Pad, Front Door SilencerFRONT DOOR SILENCER [10.1974 - 08.1979] MS8#,95,RS80 |
67811-12020 |
US $19.80 |
||
| replacement | |||||
|
67811
|
67811
67811-12010 Pad, Front Door Silencer[10.1974 - 08.1979] MS8#,95,RS80 |
67811-12010 |
US $18.54 |
||
|
67861
|
67861
67861-30090
Weatherstrip, Front Door, Rh
[12.1974 - 08.1979] MS95..4D |
67861-30090 |
— | ||
|
67862
|
67862
67862-30090
Weatherstrip, Front Door, Lh
[12.1974 - 08.1979] MS95..4D |
67862-30090 |
— | ||
|
67867A
|
67867A
67868-30040 Retainer, Roof Side Rail, Rh[10.1974 - 08.1979] MS8#,95,RS80 |
67868-30040 |
US $1.76 |
||
|
67868A
|
67868A
67869-30020 Clip, Headlamp Door Filler[10.1974 - 08.1979] MS95 |
67869-30020 |
US $3.52 |
||
|
68101
|
68101
68111-30200
Glass Sub-Assy, Front Door, Rh
[12.1974 - 08.1979] MS95..4D TN.TP.T=5.0 |
68111-30200 |
— | ||
|
68102
|
68102
68112-30130
Glass Sub-Assy, Front Door, Lh
[12.1974 - 08.1979] MS95..4D TN.TP.T=5.0 |
68112-30130 |
— | ||
|
68170
|
68170
68170-30100
Weatherstrip Assy, Front Door Glass, Inner
[12.1974 - 08.1979] MS95..4D |
68170-30100 |
— | ||
|
68231A
|
68231A
68231-30020
Seal, Front Door Drain Hole Dust
[10.1974 - 08.1979] MS8#,95,RS80..4D |
68231-30020 |
— | ||
|
6777120022
|
6777120022
67771-20022 Retainer(For Front Door Trim Board) |
67771-20022 |
from US $1.33 |
||
|
6777222010
|
6777222010
67772-22010 Clip(For Front Door Trim Board) |
67772-22010 |
from US $1.85 |
||
|
7132830010
|
7132830010
71328-30010
Washer, Front Seat Back Pocket Setting, Rh
|
71328-30010 |
— | ||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9353054020
|
9353054020
93530-54020 New Genuine Part |
93530-54020 |
US $0.87 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.96 |
||
