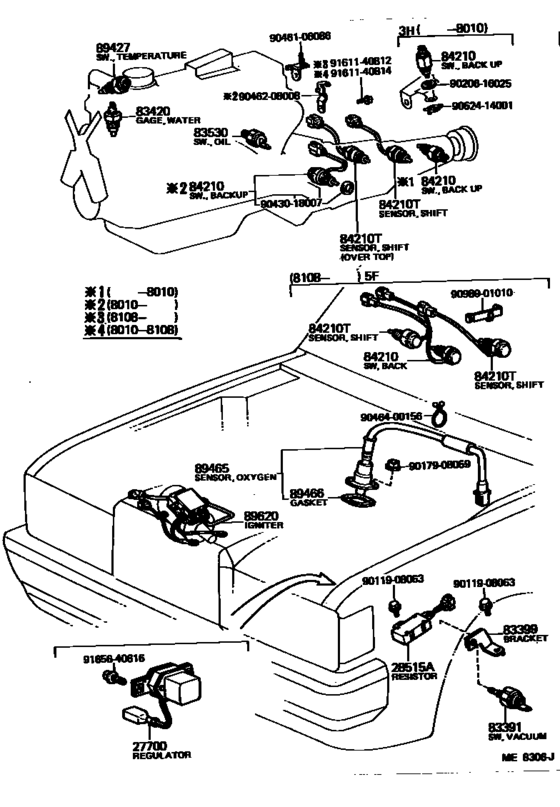

Switch & Relay & Computer ([09.1979 - ] (7909- )RS110) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1983
- Sales region
- Japan
- Frame
- RS110
- grade
- DLX
- body
- SED
- ENGINE
- 5RU
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 07.1983
- Gear Shift Type
- 4H
- No.of Doors
- 4D
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27700
|
27700
27700-44010 Regulator Assy, GeneratorGENERATOR [09.1979 - 08.1981] L,MJ,5RU..LS11#,MS117,RS110 STADARD REGULATOR |
27700-44010 |
US $317.41 |
||
|
28515A
|
28515A
28515-20010 Resistor, Solenoid[09.1979 - 08.1980] 5RU,MU..MS110,RS110..LPG |
28515-20010 |
US $81.54 |
||
| replacement | |||||
|
28515A
|
28515A
28515-41030 Resistor, Solenoid[09.1979 - 08.1980] 5RU,MU..MS110,RS110..LPG |
28515-41030 |
US $74.26 |
||
|
28515A
|
28515A
28515-41030 Resistor, Solenoid[08.1980 - 07.1983] 5RU,MU..MS110,RS110..LPG |
28515-41030 |
US $74.26 |
||
|
83391
|
83391
83391-20021 Switch, Vacuum[09.1979 - 07.1983] MS110,RS110..LPG |
83391-20021 |
US $34.65 |
||
|
83399
|
83399
83399-22011 Bracket, Vacuum Switch[09.1979 - 07.1983] MS110,RS110..LPG |
83399-22011 |
US $5.53 |
||
|
83420
|
83420
83420-16010
Gage Assy, Water Temperature Sender
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 DENSO |
83420-16010 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 DENSO |
83420-20020 |
from US $30.62 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 YAZAKI |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-14010
Switch Assy, Oil Pressure (For Engine)
[04.1980 - 07.1983] RS110 |
83530-14010 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[04.1980 - 07.1983] RS110 |
83530-28030 |
from US $26.05 |
||
|
83530
|
83530
83530-30030 Switch Assy, Oil Pressure (For Engine)OIL PRESSURE (FOR ENGINE) [09.1979 - 04.1980] RS110 |
83530-30030 |
US $17.62 |
||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[09.1979 - 04.1980] RS110 |
83530-28030 |
from US $26.05 |
||
|
84210
|
84210
84210-14010
Switch Assy, Back-Up Lamp
[09.1979 - 10.1980] LS11#,MS11#,RS110..4F,4H,5F |
84210-14010 |
— | ||
|
84210
|
84210
84210-60010 Switch Assy, Back-Up Lamp[10.1980 - 08.1981] LS11#,MS110,117,RS110..3H,4H |
84210-60010 |
US $57.51 |
||
|
84210T
|
84210T
84220-20060
Sensor Assy, Shift Point
[09.1979 - 10.1980] RS110..4H |
84220-20060 |
— | ||
|
84210T
|
84210T
84220-20070
Sensor Assy, Shift Point
[09.1979 - 10.1980] RS110..4H OVER TOP |
84220-20070 |
— | ||
|
84210T
|
84210T
84220-20080
Sensor Assy, Shift Point
[10.1980 - 07.1983] RS110..3H,4H |
84220-20080 |
— | ||
|
84210T
|
84210T
84220-20090
Sensor Assy, Shift Point
[10.1980 - 07.1983] RS110..4H OVER TOP |
84220-20090 |
— | ||
|
89427
|
89427
89428-30020
Switch, Temperature Detect
[09.1979 - 07.1983] RS110; MS110..CBR |
89428-30020 |
— | ||
|
89465
|
89465
89465-29055 Sensor, OxygenOXYGEN [10.1980 - 07.1983] RS110 |
89465-29055 |
US $138.32 |
||
|
89465
|
89465
89465-39035
Sensor, Oxygen
[09.1979 - 10.1980] RS110 |
89465-39035 |
— | ||
|
89466
|
89466
89466-30010
Gasket(For Exhaust Manifold Plate)
[09.1979 - 07.1983] GS11#,MS110,112,RS110 |
89466-30010 |
— | ||
| replacement | |||||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[09.1979 - 07.1983] GS11#,MS110,112,RS110 |
89466-20020 |
from US $13.88 |
||
|
89620
|
89620
89620-30100 Igniter Assy[09.1979 - 08.1981] RS110 |
89620-30100 |
US $358.18 |
||
| replacement | |||||
|
89620
|
89620
89620-30H90 Igniter Assy[09.1979 - 08.1981] RS110 |
89620-30H90 |
US $324.69 |
||
|
89620
|
89620
89620-30120 Igniter Assy[08.1981 - 07.1983] RS110 |
89620-30120 |
US $381.47 |
||
| replacement | |||||
|
89620
|
89620
89620-26H91 Igniter Assy[08.1981 - 07.1983] RS110 |
89620-26H91 |
US $381.47 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9020616025
|
9020616025
90206-16025
Washer, Wave(For Rocker Arm)
|
90206-16025 |
— | ||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
|
9046106086
|
9046106086
90461-06086 New Genuine Part |
90461-06086 |
US $6.99 |
||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9046400156
|
9046400156
90464-00156 Clamp, No.2(For Back Door Lock Control Cable) |
90464-00156 |
US $1.05 |
||
|
9052414001
|
9052414001
90524-14001 New Genuine Part |
90524-14001 |
US $2.77 |
||
|
9098901010
|
9098901010
90989-01010 New Genuine Part |
90989-01010 |
US $18.64 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
