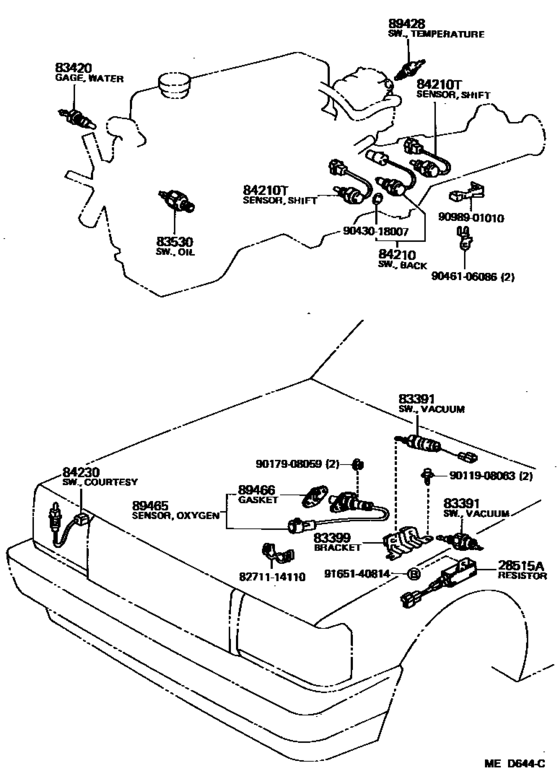

Switch & Relay & Computer ([08.1983 - ] (8308- )YS120) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- YS120
- grade
- DLX
- body
- SED
- ENGINE
- 3YPU
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4H
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515A
|
28515A
28515-41030 Resistor, Solenoid[08.1983 - 08.1987] MPU,3YPU..MS120,YS120 |
28515-41030 |
US $74.26 |
||
|
83391
|
83391
83391-20021 Switch, Vacuum[08.1983 - 06.1987] MS120,YS120..LPG MARK=80M |
83391-20021 |
US $34.65 |
||
|
83391
|
83391
83391-20030 Switch, Vacuum[08.1983 - 08.1987] YS120 MARK=100B |
83391-20030 |
US $63.48 |
||
|
83399
|
83399
83399-30020 Bracket, Vacuum Switch[08.1983 - 08.1987] MS120,YS120..LPG |
83399-30020 |
US $5.97 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-14010
Switch Assy, Oil Pressure (For Engine)
[08.1983 - 02.1985] YS120 |
83530-14010 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[08.1983 - 02.1985] YS120 |
83530-28030 |
from US $26.05 |
||
|
83530
|
83530
83530-14030
Switch Assy, Oil Pressure (For Engine)
[02.1985 - 08.1987] YS120 |
83530-14030 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[02.1985 - 08.1987] YS120 |
83530-28030 |
from US $26.05 |
||
|
84210
|
84210
84210-60021 Switch Assy, Back-Up Lamp[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM |
84210-60021 |
from US $46.02 |
||
|
84210T
|
84210T
84220-20080
Sensor Assy, Shift Point
[08.1983 - 06.1987] YS120 4H = 3RD ; 5F = 4TH & 5TH |
84220-20080 |
— | ||
|
84210T
|
84210T
84220-20090
Sensor Assy, Shift Point
[08.1983 - 06.1987] YS120..4H 4TH |
84220-20090 |
— | ||
|
84230
|
84230
84231-30030 Switch Assy, Courtesy Lamp (For Engine Room)[08.1983 - 08.1984] GS12#,LS12#,MS12#,YS120 |
84231-30030 |
US $14.41 |
||
| replacement | |||||
|
84230
|
84230
84231-30060 Switch Assy, Courtesy Lamp (For Engine Room)[08.1983 - 08.1984] GS12#,LS12#,MS12#,YS120 |
84231-30060 |
US $14.56 |
||
|
84230
|
84230
84231-30050 Switch Assy, Courtesy Lamp (For Engine Room)[08.1984 - 08.1985] GS12#,LS12#,MS12#,YS120 |
84231-30050 |
US $14.41 |
||
| replacement | |||||
|
84230
|
84230
84231-30060 Switch Assy, Courtesy Lamp (For Engine Room)[08.1984 - 08.1985] GS12#,LS12#,MS12#,YS120 |
84231-30060 |
US $14.56 |
||
|
84230
|
84230
84231-30060 Switch Assy, Courtesy Lamp (For Engine Room)[08.1985 - 08.1987] GS12#,LS12#,MS12#,YS120 |
84231-30060 |
US $14.56 |
||
|
89428
|
89428
89428-12030 Switch, Temperature Detect[08.1983 - 06.1987] YS120 MARK=60B |
89428-12030 |
US $64.36 |
||
|
89465
|
89465
89465-29105 Sensor, Oxygen[08.1983 - 08.1987] YS120 |
89465-29105 |
US $144.14 |
||
| replacement | |||||
|
89465
|
89465
89465-29106 Sensor, Oxygen[08.1983 - 08.1987] YS120 |
89465-29106 |
US $136.86 |
||
|
89466
|
89466
89466-30010
Gasket(For Exhaust Manifold Plate)
[08.1983 - 08.1987] MS12#,YS120 |
89466-30010 |
— | ||
| replacement | |||||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[08.1983 - 08.1987] MS12#,YS120 |
89466-20020 |
from US $13.88 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
|
9046106086
|
9046106086
90461-06086 New Genuine Part |
90461-06086 |
US $6.99 |
||
|
9098901010
|
9098901010
90989-01010 New Genuine Part |
90989-01010 |
US $18.64 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.88 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
