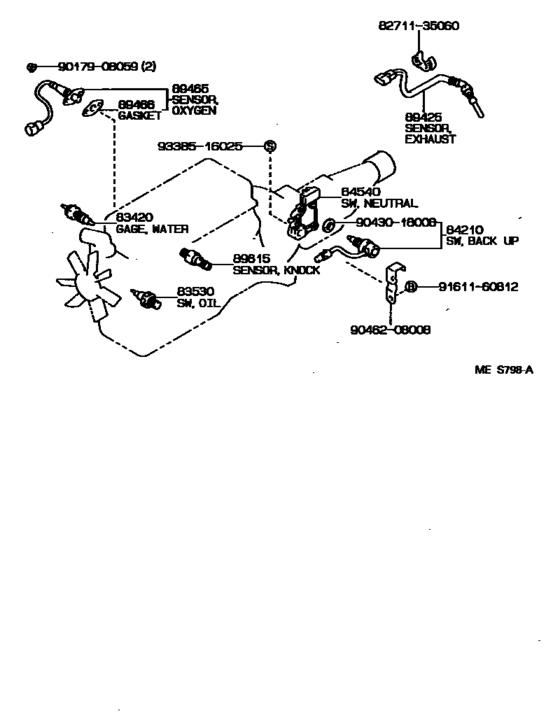

Switch & Relay & Computer ([12.1991 - 12.1995] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9112-9512)YS130) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- YS130
- grade
- DLX
- body
- SED
- ENGINE
- 3YPE
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 12.1991
- To
- 12.1995
- Gear Shift Type
- 4H
- Fuel Induction
- LPEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1993 -] GS13#,JZS13#,LS13#,YS130..DSL,HTWC,LPEFI,TDE,TWC ＤＥＮＳＯ |
83420-16040 |
from US $32.68 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1991 - 08.1992] GS13#,JZS13#,LS13#,YS130 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-14030
Switch Assy, Oil Pressure (For Engine)
[12.1991 - 08.1993] YS130 |
83530-14030 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[12.1991 - 08.1993] YS130 |
83530-28030 |
from US $26.05 |
||
|
83530
|
83530
83530-14070
Switch Assy, Oil Pressure (For Engine)
[08.1993 - 12.1995] YS130 |
83530-14070 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[08.1993 - 12.1995] YS130 |
83530-28010 |
US $25.68 |
||
|
84210
|
84210
84210-30060 Switch Assy, Back-Up Lamp[10.1991 -] GS130,136,LS136,YS130..MTM |
84210-30060 |
from US $38.08 |
||
|
89425
|
89425
89425-20190
Sensor, Exhaust Gas Temperature
[12.1991 - 08.1993] YS130 |
89425-20190 |
— | ||
| replacement | |||||
|
89425
|
89425
89425-43010
Sensor, Exhaust Gas Temperature
[12.1991 - 08.1993] YS130 |
89425-43010 |
— | ||
|
89425
|
89425
89425-30190 Sensor, Exhaust Gas Temperature[08.1993 - 12.1995] YS130 |
89425-30190 |
US $298.48 |
||
|
89465
|
89465
89465-29445
Sensor, Oxygen
[12.1991 - 08.1993] JZS130,131,YS130 |
89465-29445 |
— | ||
|
89465
|
89465
89465-39715 Sensor, Oxygen[08.1993 - 12.1995] YS130 |
89465-39715 |
US $142.69 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[12.1991 - 12.1995] GS130,JZS130,131,YS130..LPEFI,TWC,TWLPG |
89466-20020 |
from US $13.42 |
||
|
89615
|
89615
89615-30050 Sensor, Knock Control[12.1991 - 12.1995] YS130 |
89615-30050 |
from US $132.93 |
||
|
8271135060
|
8271135060
82711-35060 Clamp, Wiring Harness |
82711-35060 |
US $3.84 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
