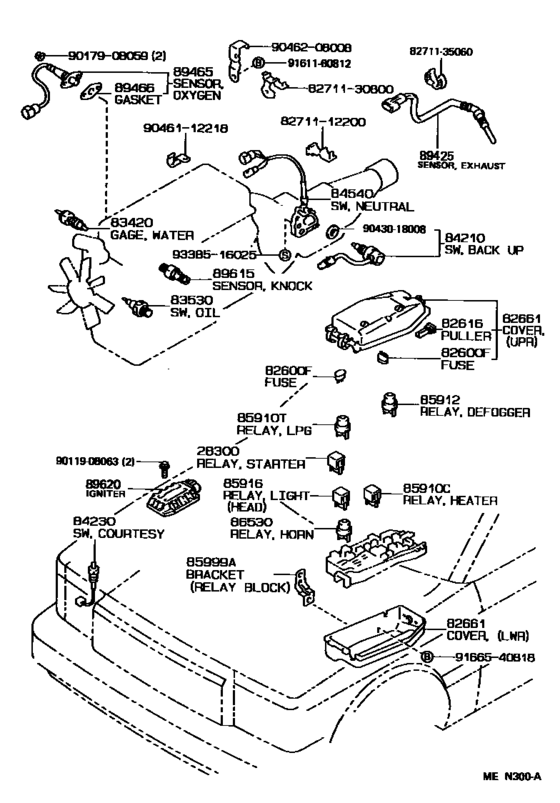

Switch & Relay & Computer ([08.1989 - ] (8908- )YS130) Diagram Toyota CROWN/ MAJESTA
- Year
- 1989 - 1991
- Sales region
- Japan
- Frame
- YS130
- grade
- DLX
- body
- SED
- ENGINE
- 3YPE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1989
- To
- 10.1991
- Gear Shift Type
- 4HC
- Body Shape
- NOB
- Fuel Induction
- LPEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-16010
Relay Assy, Starter
[08.1989 - 10.1991] 1GFE,1GG#,1JZGE,7MGE,1UZFE,3YPE..GS13#,JZS13#,MS13#,UZS131,YS130 |
28300-16010 |
— | ||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1989 - 12.1989] GS13#,LS13#,MS13#,UZS131,YS130 １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[09.1987 - 12.1989] GS13#,LS13#,MS13#,UZS131,YS130 ７．５Ａ |
90982-09005 |
from US $1.09 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
82616-12010 |
from US $3.04 |
||
|
82661
|
82661
82662-30031 Cover, Relay Block, No.1[08.1989 - 10.1991] GS130,YS130..LPEFI,TWLPG UPPER |
82662-30031 |
US $62.17 |
||
|
82661
|
82661
82663-30010 Cover, Relay Block, No.1[09.1987 - 10.1991] GS130,MS130,YS130..LPEFI,LPG,TWLPG LOWER |
82663-30010 |
US $115.02 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,YS130 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-14030
Switch Assy, Oil Pressure (For Engine)
[09.1987 - 10.1991] YS130 |
83530-14030 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[09.1987 - 10.1991] YS130 |
83530-28030 |
from US $26.05 |
||
|
84230
|
84230
84231-30060 Switch Assy, Courtesy Lamp (For Engine Room)[09.1987 - 10.1991] GS130,MS130,YS130..LPEFI,LPG,TWLPG; LS130..4H..STD |
84231-30060 |
US $14.56 |
||
|
84540
|
84540
84540-22180
Switch Assy, Neutral Start
[09.1987 -] YS130..4HC |
84540-22180 |
— | ||
| replacement | |||||
|
84540
|
84540
84540-22181
Switch Assy, Neutral Start
[09.1987 -] YS130..4HC |
84540-22181 |
— | ||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
90987-04002 |
from US $25.27 |
||
|
85910T
|
85910T
28380-73010
Relay Assy, Fuel Pump
[08.1989 - 10.1991] GS130,YS130..LPEFI,TWLPG |
28380-73010 |
— | ||
|
85912
|
85912
90987-02004 Relay Assy, Starter[09.1987 - 10.1991] GS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85912
|
85912
909870200483 [09.1987 - 10.1991] GS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130 |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1989 - 10.1991] YS130;GS130,136,LS130,136..STD HAZARD,NIPPONDENSO |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85916
|
85916
909870200483 [08.1989 - 10.1991] YS130;GS130,136,LS130,136..STD HAZARD,NIPPONDENSO |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-02006 Relay[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 HEADLAMP |
90987-02006 |
from US $27.65 |
||
|
85916
|
85916
90987-02008 Relay, Defogger[08.1989 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TAIL LAMP; GS130..SED..SDX;GS130..ROY,SALEX;GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL ,SALEX,SDX,SPE,SSL FRONT FOG LAMP |
90987-02008 |
US $57.08 |
||
|
85916
|
85916
90987-04002 Relay, Ignition, No.1[09.1987 - 10.1991] YS130;GS130,136,LS130,136..STD HAZARD MAIN |
90987-04002 |
from US $25.27 |
||
|
85999A
|
85999A
85999-30250 Bracket, Relay, No.2[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE UPPER |
85999-30250 |
US $12.38 |
||
|
85999A
|
85999A
85999-30261 Bracket, Relay, No.2[08.1989 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 RH COWL SIDE LOWER |
85999-30261 |
US $6.99 |
||
|
85999A
|
85999A
85999-30280 Bracket, Relay, No.2[09.1987 - 03.1990] GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
85999-30280 |
US $68.72 |
||
| replacement | |||||
|
85999A
|
85999A
85999-30281 Bracket, Relay, No.2[09.1987 - 03.1990] GS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
85999-30281 |
US $68.43 |
||
|
85999A
|
85999A
85999-30281 Bracket, Relay, No.2[03.1990 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 CONTROL UNIT |
85999-30281 |
US $68.43 |
||
|
85999A
|
85999A
85999-30290 Bracket, Relay, No.2[08.1988 - 10.1991] GS13#,JZS13#,LS130,131,MS13#,YS130..DSL,EFI,HTWC,LPEFI,LPG,SPC,TD,TDE,TWC E/G RELAY BLOCK |
85999-30290 |
US $5.24 |
||
|
86530
|
86530
90987-02004 Relay Assy, Starter[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
86530
|
86530
909870200483 [09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
909870200483 |
US $53.75 |
||
|
89425
|
89425
89425-12210
Sensor, Exhaust Gas Temperature
[08.1989 - 07.1991] YS130 |
89425-12210 |
— | ||
| replacement | |||||
|
89425
|
89425
89425-32110
Sensor, Exhaust Gas Temperature
[08.1989 - 07.1991] YS130 |
89425-32110 |
— | ||
|
89425
|
89425
89425-32090
Sensor, Exhaust Gas Temperature
[07.1991 - 10.1991] YS130 |
89425-32090 |
— | ||
| replacement | |||||
|
89425
|
89425
89425-32110
Sensor, Exhaust Gas Temperature
[07.1991 - 10.1991] YS130 |
89425-32110 |
— | ||
|
89465
|
89465
89465-39385 Sensor, Oxygen[08.1989 - 10.1991] YS130 |
89465-39385 |
US $138.32 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[11.1988 - 10.1991] JZS13#,MS135,137;GS130,131,MS130,YS130..LPEFI,LPG,SPC,TWLPG |
89466-20020 |
from US $13.42 |
||
|
89615
|
89615
89615-30040 Sensor, Knock Control[08.1989 - 10.1991] YS130 |
89615-30040 |
US $227.14 |
||
|
89620
|
89620
89620-30300 Igniter Assy[08.1989 - 10.1991] YS130 |
89620-30300 |
US $441.17 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8271130800
|
8271130800
82711-30800 New Genuine Part |
82711-30800 |
US $5.97 |
||
| replacement | |||||
|
8271130800
|
8271130800
90461-08312 New Genuine Part |
90461-08312 |
US $4.89 |
||
|
8271135060
|
8271135060
82711-35060 Clamp, Wiring Harness |
82711-35060 |
US $3.84 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9046112218
|
9046112218
90461-12218 New Genuine Part |
90461-12218 |
US $4.51 |
||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9166540818
|
9166540818
91665-40818 New Genuine Part |
91665-40818 |
US $2.18 |
||
| replacement | |||||
|
9166540818
|
9166540818
91661-60814 New Genuine Part |
91661-60814 |
US $1.02 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
