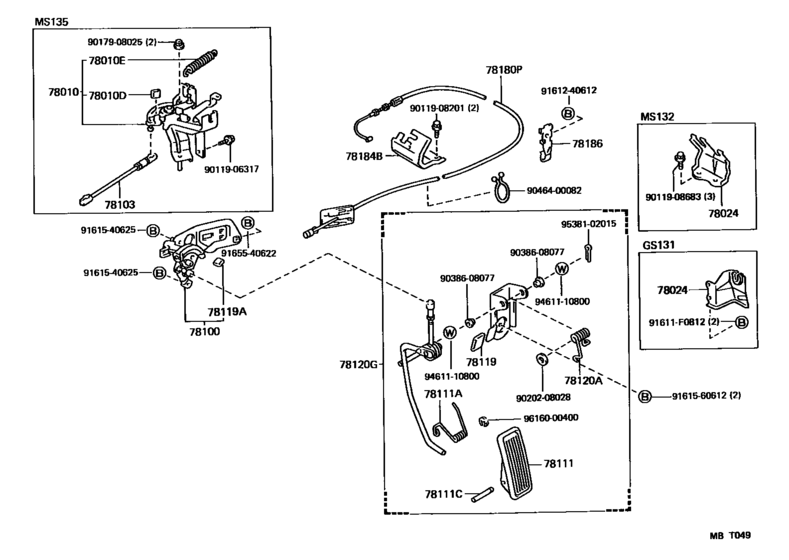

Accelerator Link ([08.1989 - ] (8908- )GS131,MS13#,YS132..LHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- YS132
- grade
- STD
- body
- SED
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-30500 Link Assy, AcceleratorACCELERATOR [09.1987 - 10.1991] GS131,MS13#,YS132..LHD |
78100-30500 |
US $60.42 |
||
|
78111
|
78111
78111-30090 Pedal, Accelerator[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..LHD |
78111-30090 |
US $16.16 |
||
|
78111A
|
78111A
90508-18071 Spring (For Accelerator Pedal)[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..LHD |
90508-18071 |
US $2.62 |
||
|
78111C
|
78111C
90249-05043 Pin (For Accelerator Pedal)[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..LHD |
90249-05043 |
US $2.33 |
||
|
78119
|
78119
78119-30040 Stopper (For Accelerator Pedal)[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..LHD |
78119-30040 |
US $3.49 |
||
|
78119
|
78119
78119-30050 Stopper (For Accelerator Pedal)[09.1987 - 08.1989] LS130,MS13#,YS132..LHD |
78119-30050 |
US $2.77 |
||
|
78119A
|
78119A
78119-30050 Stopper (For Accelerator Pedal)[08.1989 - 10.1991] GS131,LS130,MS13#,YS132..LHD |
78119-30050 |
US $2.77 |
||
|
78120A
|
78120A
90508-35008 Spring (For Accelerator Pedal Rod)[09.1987 - 10.1991] GS131,LS130,MS132,133,YS132..LHD..MTM |
90508-35008 |
US $4.08 |
||
|
78120G
|
78120G
78120-30680 Rod Assy, Accelerator PedalACCELERATOR PEDAL [09.1987 - 10.1991] GS131,LS130,MS132,YS132..LHD..MTM |
78120-30680 |
US $43.10 |
||
|
78180P
|
78180P
78180-3A090 Cable Assy, Accelerator ControlACCELERATOR CONTROL [09.1987 - 10.1991] YS132 |
78180-3A090 |
US $45.57 |
||
|
78184B
|
78184B
78184-95J00 Bracket Sub-Assy, Accelerator Control Cable[09.1987 - 10.1991] YS132 |
78184-95J00 |
US $16.95 |
||
|
78186
|
78186
78186-30080 Support, Accelerator Control Cable, No.1ACCELERATOR CONTROL CABLE, NO.1 [09.1987 - 12.1987] LS130,YS132..LHD |
78186-30080 |
US $5.10 |
||
|
91611F0812
|
91611F0812
91611-F0812
New Genuine Part
|
91611-F0812 |
— | ||
| replacement | |||||
|
91611F0812
|
91611F0812
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.12 |
||
|
9011906317
|
9011906317
90119-06317 New Genuine Part |
90119-06317 |
US $2.18 |
||
| replacement | |||||
|
9011906317
|
9011906317
91611-60665 New Genuine Part |
91611-60665 |
US $1.31 |
||
|
9011908201
|
9011908201
90119-08201
Bolt (for Transmission Control Cable Bracket)
|
90119-08201 |
— | ||
| replacements | |||||
|
9011908201
|
9011908201
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9011908201
|
9011908201
90119-A0310 Bolt (For Transmission Control Cable Bracket) |
90119-A0310 |
US $1.95 |
||
|
9011908683
|
9011908683
90119-08683
New Genuine Part
|
90119-08683 |
— | ||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9161240612
|
9161240612
91612-40612 Bolt(for Dust Cover To Steering Knuckle Arm Setting) |
91612-40612 |
US $2.18 |
||
| replacement | |||||
|
9161240612
|
9161240612
91611-G0612 Bolt |
91611-G0612 |
from US $0.78 |
||
|
9161540625
|
9161540625
91615-40625 Bolt, W/washer (for Parking Cove & Case) |
91615-40625 |
US $1.89 |
||
| replacement | |||||
|
9161540625
|
9161540625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
|
9161560612
|
9161560612
91615-60612
New Genuine Part
|
91615-60612 |
— | ||
|
9165540622
|
9165540622
91655-40622
New Genuine Part
|
91655-40622 |
— | ||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.88 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
