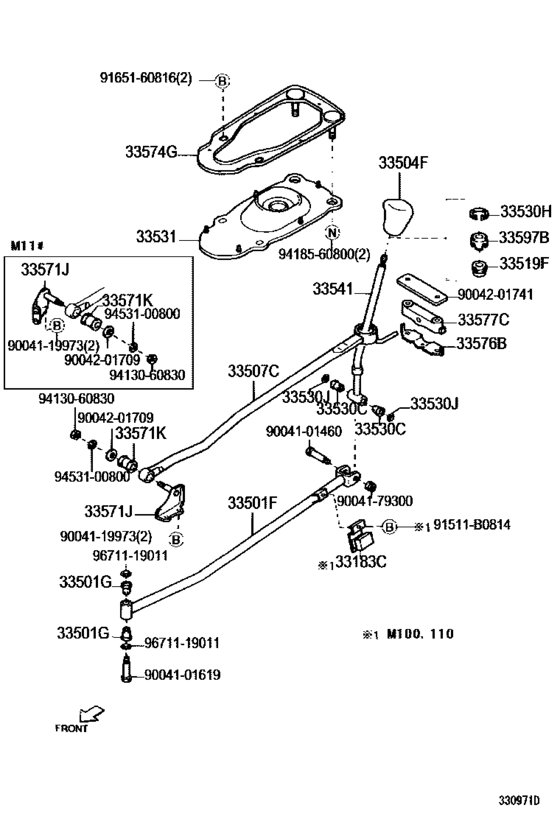

Shift Lever & Retainer ([09.1998 - ] (9809- )5F) Diagram Toyota DUET
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- M111A
- grade
- VS
- ENGINE
- K3VE
- TRANSMISSION
- MTM
- From
- 05.2000
- To
- 05.2004
- Gear Shift Type
- 5F
- Fuel Induction
- WVVT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501F
|
33501F
33501-97401 Shaft Sub-Assy, Control (For Floor Shift)[05.2000 - 12.2001] M11#..5F |
33501-97401 |
US $42.81 |
||
| replacement | |||||
|
33501F
|
33501F
33501-97403 Shaft Sub-Assy, Control (For Floor Shift)[05.2000 - 12.2001] M11#..5F |
33501-97403 |
US $68.29 |
||
|
33501F
|
33501F
33501-97403 Shaft Sub-Assy, Control (For Floor Shift)[12.2001 -] M11#..5F |
33501-97403 |
US $68.29 |
||
|
33501G
|
33501G
90043-86119
Bush (For Floor Shift Control Shaft)
[09.1998 - 07.2002] M10#,11#..5F |
90043-86119 |
— | ||
| replacement | |||||
|
33501G
|
33501G
90043-86124 Bush (For Floor Shift Control Shaft)[09.1998 - 07.2002] M10#,11#..5F |
90043-86124 |
US $3.04 |
||
|
33501G
|
33501G
90043-86124 Bush (For Floor Shift Control Shaft)[08.2002 -] M10#,11#..5F |
90043-86124 |
US $3.04 |
||
|
33504F
|
33504F
33504-87218-23 Knob Sub-Assy, Shift Lever[09.1998 -] M10#,11#..5F DARK GRAY,TRIMS6,S8 |
33504-87218-23 |
US $39.75 |
||
| replacement | |||||
|
33504F
|
33504F
33504-B2050-B1 Knob Sub-Assy, Shift Lever[09.1998 -] M10#,11#..5F DARK GRAY,TRIMS6,S8 |
33504-B2050-B1 |
US $18.05 |
||
|
33504F
|
33504F
33504-87218-33 Knob Sub-Assy, Shift Lever[05.2000 -] M10#,11#..5F GRAY,TRIMS8 |
33504-87218-33 |
US $46.59 |
||
| replacement | |||||
|
33504F
|
33504F
33504-B2050-B1 Knob Sub-Assy, Shift Lever[05.2000 -] M10#,11#..5F GRAY,TRIMS8 |
33504-B2050-B1 |
US $18.05 |
||
|
33507C
|
33507C
33507-97202 Rod Sub-Assy, Extension[09.1998 -] M11#..5F |
33507-97202 |
US $152.88 |
||
|
33519F
|
33519F
33519-87705 Boot, Control Shaft Dust[09.1998 -] M10#,11#..5F |
33519-87705 |
US $11.71 |
||
|
33530C
|
33530C
90043-86105 Bush (For Shift Lever)[09.1998 -] M10#,11#..5F |
90043-86105 |
US $3.52 |
||
|
33530H
|
33530H
96151-03200 Ring, Snap (For Shift Lever)[09.1998 -] M10#,11#..5F |
96151-03200 |
US $2.24 |
||
|
33530J
|
33530J
96711-19014 O-Ring[09.1998 -] M10#,11#..5F |
96711-19014 |
from US $2.26 |
||
|
33531
|
33531
33531-97201 Boot, Dust (For Control Shift Lever)[09.1998 -] M10#,11#..5F |
33531-97201 |
US $15 |
||
|
33541
|
33541
33541-97401 Lever, Shift[05.2000 -] M101,111..5F |
33541-97401 |
US $82.99 |
||
|
33571J
|
33571J
33571-97405 Support Bracket, Control Shaft[05.2000 -] M111..5F |
33571-97405 |
US $33.05 |
||
|
33571K
|
33571K
90043-85159 Bush(For Control Shaft Support Bracket)[05.2000 -] M101,111..5F |
90043-85159 |
US $3.93 |
||
|
33574G
|
33574G
33574-97202 Retainer, Shift Lever Boot[09.1998 -] M10#,11#..5F |
33574-97202 |
US $23.73 |
||
| replacement | |||||
|
33574G
|
33574G
33574-97201 Retainer, Shift Lever Boot[09.1998 -] M10#,11#..5F |
33574-97201 |
US $24.90 |
||
|
33576B
|
33576B
33576-97201 Bracket, Floor Shift Support[09.1998 -] M10#,11#..5F |
33576-97201 |
US $23.44 |
||
|
33577C
|
33577C
33577-97201 Support, Floor Shift No.1[09.1998 -] M10#,11#..5F |
33577-97201 |
US $23.44 |
||
|
33597B
|
33597B
33597-87702 Seat, Shift Lever, No.1 (For Floor Shift)[09.1998 -] M10#,11#..5F |
33597-87702 |
US $6.64 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9004101460
|
9004101460
90041-01460 Bolt |
90041-01460 |
US $5.92 |
||
|
9004101619
|
9004101619
90041-01619 New Genuine Part |
90041-01619 |
US $4.54 |
||
|
9004119973
|
9004119973
90041-19973 New Genuine Part |
90041-19973 |
US $2.48 |
||
|
9004179300
|
9004179300
90041-79300 Nut, Booster |
90041-79300 |
US $2.08 |
||
|
9004201709
|
9004201709
90042-01709 New Genuine Part |
90042-01709 |
US $1.92 |
||
|
9004201741
|
9004201741
90042-01741 New Genuine Part |
90042-01741 |
US $6.12 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9413060830
|
9413060830
94130-60830 New Genuine Part |
94130-60830 |
US $1.12 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
US $1.60 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $1.93 |
||
|
9671119011
|
9671119011
96711-19011 Ring, O(For Front Absorber Control Solenoid Valve Rh) |
96711-19011 |
US $4.32 |
||
