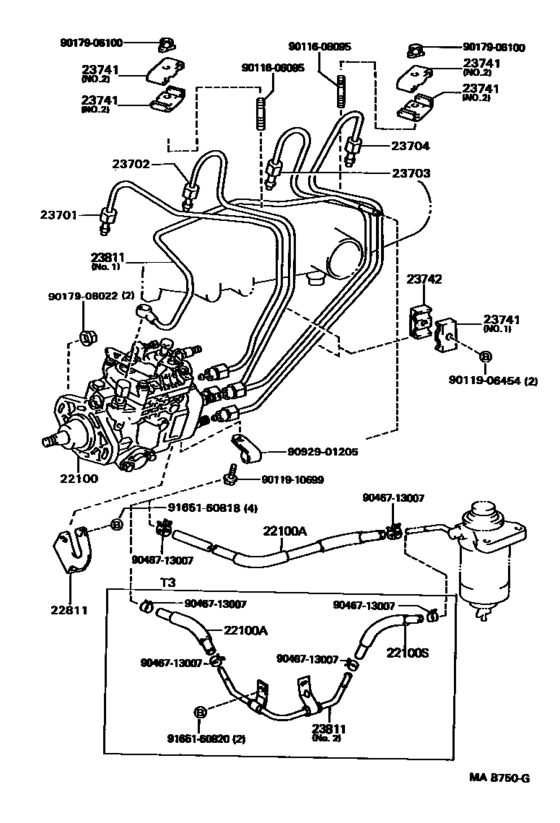

Injection Pump Assembly ([08.1988 - ] (8808- )2L) Diagram Toyota DYNA 100
- Year
- 1987 - 1995
- Sales region
- Europe
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 08.1987
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- LHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-54311
Pump Assy, Injection Or Supply
[08.1987 - 08.1988] 2L..LH80..EUR,GEN |
22100-54311 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-54341 Pump Assy, Injection Or Supply[08.1987 - 08.1988] 2L..LH80..EUR,GEN |
22100-54341 |
US $4,397.12 |
||
|
22100
|
22100
22100-54341 Pump Assy, Injection Or Supply[08.1987 - 08.1988] 2L..LH80..EUR W(TACHO METER PIC UP) |
22100-54341 |
US $4,397.12 |
||
|
22100
|
22100
22100-54750 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [08.1988 - 10.1989] 2L..LH80..EUR |
22100-54750 |
US $4,135.04 |
||
| replacement | |||||
|
22100
|
22100
22100-54760 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [08.1988 - 10.1989] 2L..LH80..EUR |
22100-54760 |
US $4,280.64 |
||
|
22100
|
22100
22100-54760 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [08.1988 - 10.1989] 2L..LH80..EUR W(TACHO METER PIC UP) |
22100-54760 |
US $4,280.64 |
||
|
22100
|
22100
22100-5B170 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [10.1989 - 04.1994] 2L..LH80..EUR |
22100-5B170 |
US $4,222.40 |
||
|
22100
|
22100
22100-5B290 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [10.1989 - 04.1994] 2L..LH80..EUR W(TACHO METER PIC UP) |
22100-5B290 |
US $4,324.32 |
||
|
22100
|
22100
22100-5B320
Pump Assy, Injection Or Supply
[10.1992 - 04.1994] 2L..LH80..EUR..CBU NORWAY SPEC; 2L..LH80..T3..EUR..IV FINLAND SPEC |
22100-5B320 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-5B360
Pump Assy, Injection Or Supply
[10.1992 - 04.1994] 2L..LH80..EUR..CBU NORWAY SPEC; 2L..LH80..T3..EUR..IV FINLAND SPEC |
22100-5B360 |
— | ||
|
22100A
|
22100A
90447-14045
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1987 - 08.1988] 2L..LH80..T3 |
90447-14045 |
— | ||
|
22100A
|
22100A
90447-14059 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1988 - 05.1995] 2L..LH80..T3 L=380 |
90447-14059 |
US $19.80 |
||
|
22100S
|
22100S
90447-14023
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1988 - 05.1995] 2L..LH80..T3 |
90447-14023 |
— | ||
|
22811
|
22811
22811-54040 Stay, Injection Pump, No.1[08.1987 - 08.1988] 2L..LH80 |
22811-54040 |
US $11.79 |
||
| replacement | |||||
|
22811
|
22811
22811-54042 Stay, Injection Pump, No.1[08.1987 - 08.1988] 2L..LH80 |
22811-54042 |
US $6.99 |
||
|
22811
|
22811
22811-54041
Stay, Injection Pump, No.1
[08.1988 - 05.1995] 2L..LH80 |
22811-54041 |
— | ||
| replacement | |||||
|
22811
|
22811
22811-54042 Stay, Injection Pump, No.1[08.1988 - 05.1995] 2L..LH80 |
22811-54042 |
US $6.99 |
||
|
23701
|
23701
23701-54082
Pipe Sub-Assy, Injection, No.1
[08.1987 - 08.1988] 2L..LH80 |
23701-54082 |
— | ||
| replacement | |||||
|
23701
|
23701
23701-54072
Pipe Sub-Assy, Injection, No.1
[08.1987 - 08.1988] 2L..LH80 |
23701-54072 |
— | ||
|
23701
|
23701
23701-54110
Pipe Sub-Assy, Injection, No.1
[08.1988 - 08.1989] 2L..LH80 |
23701-54110 |
— | ||
| replacement | |||||
|
23701
|
23701
23701-54140 Pipe Sub-Assy, Injection, No.1[08.1988 - 08.1989] 2L..LH80 |
23701-54140 |
from US $25.99 |
||
|
23701
|
23701
23701-54140 Pipe Sub-Assy, Injection, No.1[08.1989 - 05.1995] 2L..LH80 |
23701-54140 |
from US $25.99 |
||
|
23702
|
23702
23702-54081
Pipe Sub-Assy, Injection, No.2
[08.1987 - 08.1988] 2L..LH80 |
23702-54081 |
— | ||
| replacement | |||||
|
23702
|
23702
23702-54071
Pipe Sub-Assy, Injection, No.2
[08.1987 - 08.1988] 2L..LH80 |
23702-54071 |
— | ||
|
23702
|
23702
23702-54110 Pipe Sub-Assy, Injection, No.2[08.1988 - 08.1989] 2L..LH80 |
23702-54110 |
US $36.69 |
||
| replacement | |||||
|
23702
|
23702
23702-54140 Pipe Sub-Assy, Injection, No.2[08.1988 - 08.1989] 2L..LH80 |
23702-54140 |
US $25.99 |
||
|
23702
|
23702
23702-54140 Pipe Sub-Assy, Injection, No.2[08.1989 - 05.1995] 2L..LH80 |
23702-54140 |
US $25.99 |
||
|
23703
|
23703
23703-54050
Pipe Sub-Assy, Injection, No.3
[08.1987 - 08.1988] 2L..LH80 |
23703-54050 |
— | ||
|
23703
|
23703
23703-54090
Pipe Sub-Assy, Injection, No.3
[08.1988 - 03.1989] 2L..LH80 |
23703-54090 |
— | ||
| replacement | |||||
|
23703
|
23703
23703-54100 Pipe Sub-Assy, Injection, No.3[08.1988 - 03.1989] 2L..LH80 |
23703-54100 |
US $25.99 |
||
| replacement | |||||
|
23703
|
23703
23703-05011
Pipe Sub-Assy, Injection, No.3
[08.1988 - 03.1989] 2L..LH80 |
23703-05011 |
— | ||
|
23703
|
23703
23703-54091 Pipe Sub-Assy, Injection, No.3[03.1989 - 08.1989] 2L..LH80 |
23703-54091 |
US $36.69 |
||
| replacement | |||||
|
23703
|
23703
23703-54100 Pipe Sub-Assy, Injection, No.3[03.1989 - 08.1989] 2L..LH80 |
23703-54100 |
US $25.99 |
||
| replacement | |||||
|
23703
|
23703
23703-05011
Pipe Sub-Assy, Injection, No.3
[03.1989 - 08.1989] 2L..LH80 |
23703-05011 |
— | ||
|
23703
|
23703
23703-54100 Pipe Sub-Assy, Injection, No.3[08.1989 - 05.1995] 2L..LH80 |
23703-54100 |
US $25.99 |
||
| replacement | |||||
|
23703
|
23703
23703-05011
Pipe Sub-Assy, Injection, No.3
[08.1989 - 05.1995] 2L..LH80 |
23703-05011 |
— | ||
|
23704
|
23704
23704-54050
Pipe Sub-Assy, Injection, No.4
[08.1987 - 08.1988] 2L..LH80 |
23704-54050 |
— | ||
|
23704
|
23704
23704-54090 Pipe Sub-Assy, Injection, No.4[08.1988 - 08.1989] 2L..LH80 |
23704-54090 |
US $36.69 |
||
| replacement | |||||
|
23704
|
23704
23704-54100 Pipe Sub-Assy, Injection, No.4[08.1988 - 08.1989] 2L..LH80 |
23704-54100 |
US $25.99 |
||
| replacement | |||||
|
23704
|
23704
23704-05010
Pipe Sub-Assy, Injection, No.4
[08.1988 - 08.1989] 2L..LH80 |
23704-05010 |
— | ||
|
23704
|
23704
23704-54100 Pipe Sub-Assy, Injection, No.4[08.1989 - 05.1995] 2L..LH80 |
23704-54100 |
US $25.99 |
||
| replacement | |||||
|
23704
|
23704
23704-05010
Pipe Sub-Assy, Injection, No.4
[08.1989 - 05.1995] 2L..LH80 |
23704-05010 |
— | ||
|
23741
|
23741
23741-54010 Clamp, Injection Pipe, No.1[08.1987 - 05.1995] 2L..LH80 NO.1 |
23741-54010 |
US $20.22 |
||
|
23741
|
23741
23741-56010 Clamp, Injection Pipe, No.1[08.1987 - 05.1995] 2L..LH80 NO.2 |
23741-56010 |
from US $6.49 |
||
|
23742
|
23742
23742-54010 Clamp, Injection Pipe, No.2[08.1987 - 05.1995] 2L..LH80 |
23742-54010 |
US $20.22 |
||
|
23811
|
23811
23801-54030 Pipe, Fuel(For Fuel Filter To Injection Pump)[08.1987 - 08.1988] 2L..LH80..T3 |
23801-54030 |
US $31.30 |
||
|
23811
|
23811
23801-54050
Pipe Sub-Assy, Fuel(For Fuel Filter To Injection Pump)
[08.1988 - 05.1995] 2L..LH80..T3 NO.2 |
23801-54050 |
— | ||
|
23811
|
23811
23811-54140 Pipe, Fuel(For Fuel Filter To Injection Pump)[08.1987 - 08.1988] 2L..LH80 NO.1 |
23811-54140 |
US $51.40 |
||
|
23811
|
23811
23811-54160 Pipe, Fuel(For Fuel Filter To Injection Pump)[08.1988 - 05.1995] 2L..LH80 NO.1 |
23811-54160 |
US $22.01 |
||
|
9011606095
|
9011606095
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9011906454
|
9011906454
90119-06454 Bolt |
90119-06454 |
US $1.75 |
||
|
9011910699
|
9011910699
90119-10699
BOLT WWASHER
|
90119-10699 |
— | ||
|
9017906100
|
9017906100
90179-06100
New Genuine Part
|
90179-06100 |
— | ||
| replacement | |||||
|
9017906100
|
9017906100
90179-06204 NUT |
90179-06204 |
US $1.92 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.56 |
||
|
9092901205
|
9092901205
90929-01205 CLAMP |
90929-01205 |
US $6.08 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
US $2.72 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
