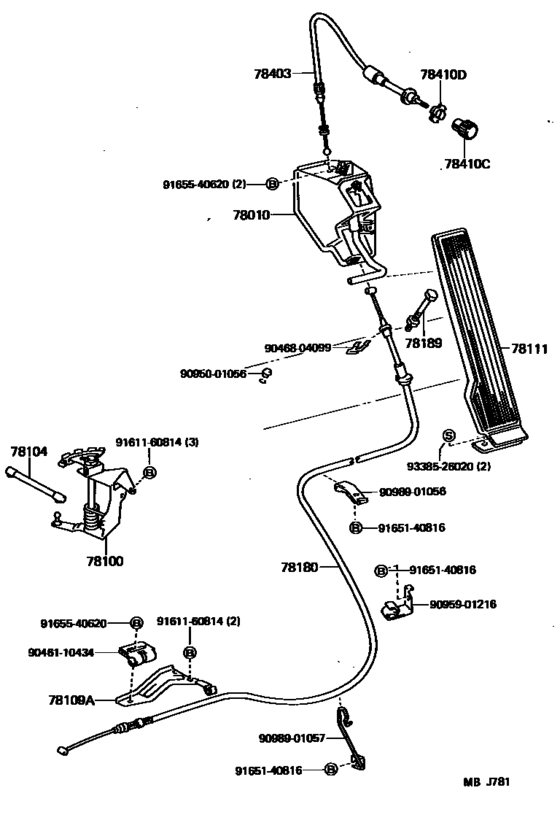

Accelerator Link ([08.1985 - ] (8508- )LH80..RHD) Diagram Toyota DYNA 100
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- DYNA 100
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78202-95010 Link, Accelerator[08.1985 - 08.1987] LH80,YH8#..RHD |
78202-95010 |
US $113.57 |
||
|
78100
|
78100
78100-95J06 Link Assy, Accelerator[08.1985 - 08.1987] LH80..RHD..5F |
78100-95J06 |
US $51.11 |
||
|
78104
|
78104
78104-30120
Rod Sub-Assy, Accelerator Connecting, No.2
[08.1985 - 08.1987] LH80 |
78104-30120 |
— | ||
|
78109A
|
78109A
78109-95J00 Bracket Sub-Assy, Accelerator Wire Clamp[08.1985 - 08.1987] LH80..RHD |
78109-95J00 |
US $22.57 |
||
|
78111
|
78111
78110-95410 Pedal, Accelerator[08.1985 - 08.1987] LH80,YH8#..RHD |
78110-95410 |
from US $19.91 |
||
|
78180
|
78180
78150-95056 Wire Assy, Accelerator Flexible[08.1985 - 08.1987] LH80..RHD |
78150-95056 |
US $91.73 |
||
|
78189
|
78189
78208-95400 Bolt, Accelerator Pedal Stopper[08.1985 - 08.1987] LH80,YH8#..RHD |
78208-95400 |
US $4.22 |
||
| replacement | |||||
|
78189
|
78189
78208-95406 Bolt, Accelerator Pedal StopperACCELERATOR PEDAL STOPPER [08.1985 - 08.1987] LH80,YH8#..RHD |
78208-95406 |
US $4.22 |
||
|
78403
|
78403
78404-95011
Cable Sub-Assy, Throttle Control
[08.1985 - 08.1987] LH80..RHD |
78404-95011 |
— | ||
| replacement | |||||
|
78403
|
78403
78404-37020 Cable Assy, Throttle Control[08.1985 - 08.1987] LH80..RHD |
78404-37020 |
US $30.93 |
||
|
78410C
|
78410C
78411-22010 Knob, Throttle Cable[08.1985 - 08.1987] LH80 |
78411-22010 |
US $8.91 |
||
|
78410D
|
78410D
78314-95010 Nut, Choke[08.1985 - 08.1987] LH80 |
78314-95010 |
from US $1.88 |
||
|
9046110434
|
9046110434
90461-10434 Clamp (For Accelerator Wire Set) |
90461-10434 |
US $3.06 |
||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095901216
|
9095901216
90959-01216 New Genuine Part |
90959-01216 |
US $5.24 |
||
|
9098901056
|
9098901056
90989-01056 New Genuine Part |
90989-01056 |
US $4.37 |
||
|
9098901057
|
9098901057
90989-01057 New Genuine Part |
90989-01057 |
US $4.08 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.99 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9338526020
|
9338526020
93385-26020 New Genuine Part |
93385-26020 |
US $1.44 |
||
