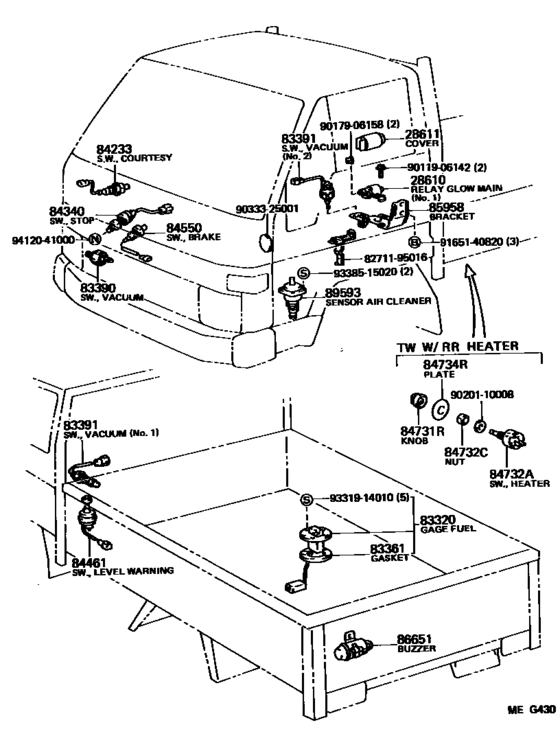

Switch & Relay & Computer ([08.1985 - ] (8508- )) Diagram Toyota DYNA 100
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- LH80
- body
- T3
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- DYNA 100
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 100
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28610
|
28610
28610-54021
Relay Assy, Glow Plug
[08.1985 - 08.1987] 2L..LH80 NO.2 |
28610-54021 |
— | ||
|
28610
|
28610
28610-68030
Relay Assy, Glow Plug
[08.1985 - 08.1987] 2L..LH80..T3..CBU;2L..LH80..TW..EUR;2L..LH80..(ARL,EUR)..IV NO.1 |
28610-68030 |
— | ||
|
28611
|
28611
28611-58020 Cover, Glow Plug Relay[08.1985 - 08.1987] 2L..LH80..T3..CBU;2L..LH80..TW..EUR;2L..LH80..(ARL,EUR)..IV |
28611-58020 |
US $15 |
||
|
83320
|
83320
83320-39565 Gage Assy, Fuel Sender[08.1985 - 08.1987] LH80,YH8# |
83320-39565 |
US $56.61 |
||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[08.1985 - 08.1987] LH80,YH8# |
83361-20030 |
from US $5.12 |
||
|
83390
|
83390
83390-30020
Switch Assy, Vacuum Warning
[08.1985 - 08.1987] LH80 |
83390-30020 |
— | ||
|
84233
|
84233
84231-20080
Switch Assy, Courtesy Lamp (For Front Door)
[08.1985 - 08.1987] LH80,YH8# |
84231-20080 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-28010 Switch Assy, Courtesy Lamp[08.1985 - 08.1987] LH80,YH8# |
84231-28010 |
from US $16.26 |
||
|
84340
|
84340
84340-22072 Switch Assy, Stop Lamp[08.1985 - 08.1987] LH80,YH8# |
84340-22072 |
from US $26.38 |
||
|
84461
|
84461
84461-14030 Switch, Level Warning[08.1985 - 08.1986] LH80 |
84461-14030 |
US $84.45 |
||
|
84461
|
84461
84461-35030 Switch, Level Warning[08.1986 - 08.1987] LH80 |
84461-35030 |
US $38.09 |
||
|
84550
|
84550
84550-20030 Switch Assy, Courtesy Lamp (For Parking Brake)[08.1985 - 08.1987] LH80,YH8# |
84550-20030 |
from US $14.24 |
||
|
85958
|
85958
85958-95010 Bracket, Main Relay[08.1985 - 08.1987] LH80,YH8#..T3 |
85958-95010 |
US $23.30 |
||
|
86651
|
86651
86650-95A04 Buzzer Assy, Reverse Warning[08.1985 - 08.1987] LH80,YH8# |
86650-95A04 |
US $88.82 |
||
|
89593
|
89593
89593-26010
Sensor, Air Cleaner Warning
[08.1985 - 08.1987] LH80 |
89593-26010 |
— | ||
|
8271195016
|
8271195016
82711-95016 Wire, Fuse To Fuse(for Combustion Heater) |
82711-95016 |
US $12.81 |
||
| replacement | |||||
|
8271195016
|
8271195016
82711-95025 Wire, Fuse To Fuse(for Combustion Heater) |
82711-95025 |
US $12.67 |
||
|
9011906142
|
9011906142
90119-06142 Bolt A/C |
90119-06142 |
US $1.92 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9020110008
|
9020110008
90201-10008 Washer, No.2 (For Center Support Bearing) |
90201-10008 |
US $1.76 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.31 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9338515020
|
9338515020
93385-15020 New Genuine Part |
93385-15020 |
US $1.49 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
