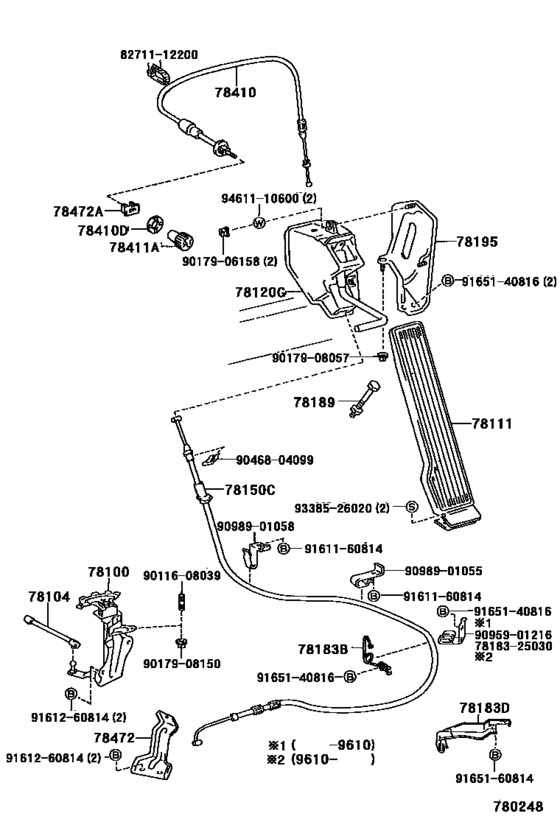

Accelerator Link ([05.1995 - ] (9505- )LY100..LHD) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-25011 Link Assy, Accelerator[05.1995 -] LY100 |
78100-25011 |
US $54.02 |
||
|
78104
|
78104
78104-22140 Rod Sub-Assy, Accelerator Connecting, No.2[05.1995 -] LY100 |
78104-22140 |
from US $7.08 |
||
|
78111
|
78111
78010-37010 Pedal, AcceleratorACCELERATOR [05.1995 -] LY100,YY100..LHD |
78010-37010 |
US $10.83 |
||
|
78120G
|
78120G
78202-95011 Link, AcceleratorACCELERATOR PEDAL [05.1995 -] LY100,YY100..LHD |
78202-95011 |
US $113.57 |
||
|
78150C
|
78150C
78150-25051 Wire Assy, Accelerator FlexibleACCELERATOR FLEXIBLE [05.1995 -] LY100..LHD |
78150-25051 |
US $58.24 |
||
|
78183B
|
78183B
78183-25010 Clamp, Accelerator Control Cable[05.1995 - 10.1996] LY100,YY100 |
78183-25010 |
US $4.22 |
||
|
78183D
|
78183D
78183-95011 Clamp, Accelerator Control Cable[05.1995 - 10.1996] LY100 |
78183-95011 |
US $9.03 |
||
|
78189
|
78189
78208-37050 Bolt, Accelerator Pedal StopperACCELERATOR PEDAL STOPPER [03.2000 -] LY100..LHD |
78208-37050 |
US $3.93 |
||
|
78189
|
78189
78208-95402 Bolt, Accelerator Pedal StopperACCELERATOR PEDAL STOPPER [05.1995 - 03.2000] LY100,YY100..LHD |
78208-95402 |
US $4.37 |
||
|
78195
|
78195
78195-37020 Bracket, Accelerator LinkACCELERATOR LINK [05.1995 -] LY100,YY100..LHD |
78195-37020 |
US $21.69 |
||
|
78410
|
78410
78404-25010 Cable Assy, Throttle ControlTHROTTLE CONTROL [05.1995 - 10.1996] LY100..TW2..CBU;LY100..T3..EUR..IV DENMARK SPEC |
78404-25010 |
US $31.74 |
||
|
78410
|
78410
78404-37030 Cable Assy, Throttle ControlTHROTTLE CONTROL [05.1995 - 10.1996] LY100..LHD |
78404-37030 |
US $38.44 |
||
| replacements | |||||
|
78410
|
78410
78404-37070 Cable Assy, Throttle ControlTHROTTLE CONTROL [05.1995 - 10.1996] LY100..LHD |
78404-37070 |
US $38.44 |
||
|
78410
|
78410
78411-95J01 Knob, Throttle Cable[05.1995 - 10.1996] LY100..LHD |
78411-95J01 |
from US $5.07 |
||
|
78410
|
78410
78404-37070 Cable Assy, Throttle ControlTHROTTLE CONTROL [10.1996 -] LY100..LHD |
78404-37070 |
US $38.44 |
||
|
78410D
|
78410D
78314-95010 Nut, Choke[05.1995 -] LY100 |
78314-95010 |
from US $1.88 |
||
|
78411A
|
78411A
78411-22010 Knob, Throttle Cable[05.1995 - 10.1996] LY100 |
78411-22010 |
US $8.91 |
||
|
78411A
|
78411A
78411-95J00 Knob, Throttle CableTHROTTLE CONTROL CABLE [05.1995 - 10.1996] LY100..TW2..CBU;LY100..T3..EUR..IV DENMARK SPEC |
78411-95J00 |
US $8.59 |
||
|
78411A
|
78411A
78411-95J01 Knob, Throttle Cable[10.1996 -] LY100 |
78411-95J01 |
from US $5.07 |
||
|
78472
|
78472
78472-25011 Support, Throttle Control Cable[05.1995 -] LY100 |
78472-25011 |
US $22.42 |
||
|
78472A
|
78472A
78472-95700-B0 Support, Throttle Control Cable[05.1995 -] LY100,YY100 BLUISH GRAY,TRIM1# |
78472-95700-B0 |
US $5.82 |
||
| replacement | |||||
|
78472A
|
78472A
78472-95700-C0 Support, Throttle Control CableTHROTTLE CONTROL CABLE [05.1995 -] LY100,YY100 BLUISH GRAY,TRIM1# |
78472-95700-C0 |
US $5.82 |
||
|
7818325030
|
7818325030
78183-25030 Clamp, Accelerator Control Cable |
78183-25030 |
US $6.26 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $3.67 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017908057
|
9017908057
90179-08057 NUT |
90179-08057 |
from US $0.78 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.01 |
||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9095901216
|
9095901216
90959-01216 New Genuine Part |
90959-01216 |
US $5.24 |
||
|
9098901055
|
9098901055
90989-01055 New Genuine Part |
90989-01055 |
US $5.24 |
||
|
9098901058
|
9098901058
90989-01058 New Genuine Part |
90989-01058 |
US $6.84 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.88 |
||
|
9161260814
|
9161260814
91612-60814
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91612-60814 |
— | ||
| replacement | |||||
|
9161260814
|
9161260814
91611-60814 Bolt |
91611-60814 |
from US $0.88 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.99 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9338526020
|
9338526020
93385-26020 New Genuine Part |
93385-26020 |
US $1.44 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
