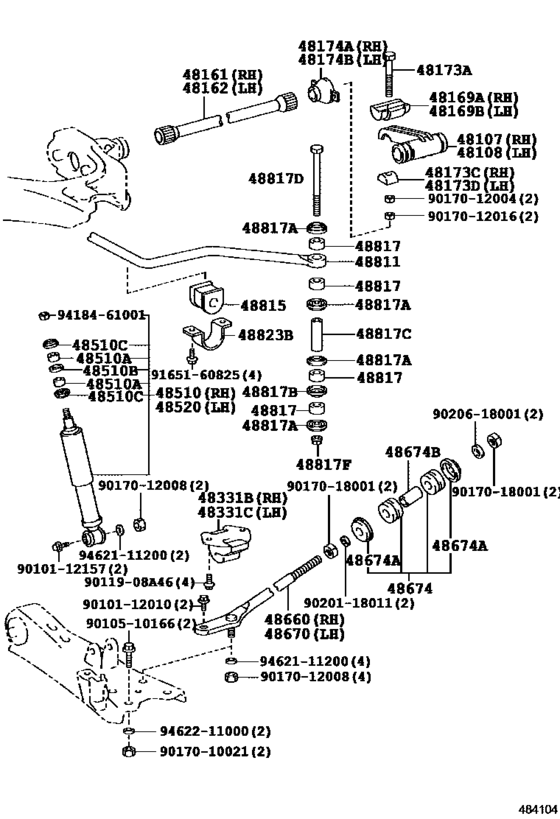

Front Spring & Shock Absorber ([05.1995 - ] (9505- )) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48107
|
48107
48107-26020
Arm Sub-Assy, Anchor, Rh
[05.1995 -] LY100,YY100 |
48107-26020 |
— | ||
|
48108
|
48108
48108-26020 Arm Sub-Assy, Anchor, Lh[05.1995 -] LY100,YY100 |
48108-26020 |
US $50.23 |
||
|
48161
|
48161
48161-26070
Spring, Torsion Bar, Rh
[05.1995 -] LY100,YY100 |
48161-26070 |
— | ||
|
48162
|
48162
48162-26070 Spring, Torsion Bar, Lh[05.1995 -] LY100,YY100 |
48162-26070 |
US $155.79 |
||
|
48169A
|
48169A
48169-26020 Swivel, Anchor Arm[05.1995 -] LY100,YY100 |
48169-26020 |
US $13.10 |
||
|
48169B
|
48169B
48169-26020 Swivel, Anchor Arm[05.1995 -] LY100,YY100 |
48169-26020 |
US $13.10 |
||
|
48173A
|
48173A
90101-12104 Bolt, Hexagon(For Anchor Arm Adjusting)[05.1995 -] LY100,YY100 |
90101-12104 |
from US $4.47 |
||
|
48173C
|
48173C
48173-27010 Seat, Anchor Arm Adjuster[05.1995 -] LY100,YY100 |
48173-27010 |
from US $7.04 |
||
|
48173D
|
48173D
48173-27010 Seat, Anchor Arm Adjuster[05.1995 -] LY100,YY100 |
48173-27010 |
from US $7.04 |
||
|
48174A
|
48174A
48174-26010 Cover, Torsion Bar Dust[05.1995 - 10.1996] LY100,YY100 |
48174-26010 |
US $10.08 |
||
|
48174A
|
48174A
48174-34010 Cover, Torsion Bar Dust[10.1996 -] LY100,YY100 |
48174-34010 |
US $5.12 |
||
|
48174B
|
48174B
48174-26010 Cover, Torsion Bar Dust[05.1995 - 10.1996] LY100,YY100 |
48174-26010 |
US $10.08 |
||
|
48174B
|
48174B
48174-34010 Cover, Torsion Bar Dust[10.1996 -] LY100,YY100 |
48174-34010 |
US $5.12 |
||
|
48331B
|
48331B
48331-26030 Bumper, Front Spring, No.1[05.1995 -] LY100..EUR |
48331-26030 |
US $12.23 |
||
|
48331C
|
48331C
48331-26030 Bumper, Front Spring, No.1[05.1995 -] LY100..EUR |
48331-26030 |
US $12.23 |
||
|
48510
|
48510
48511-29365 Absorber Assy, Shock, Front Rh[05.1995 - 01.1996] LY100..EUR |
48511-29365 |
US $94.64 |
||
| replacement | |||||
|
48510
|
48510
48511-29416 Absorber Assy, Shock, Front Rh[05.1995 - 01.1996] LY100..EUR |
48511-29416 |
US $105.08 |
||
|
48510
|
48510
48511-29366 Absorber Assy, Shock, Front Rh[01.1996 -] LY100..EUR |
48511-29366 |
US $91.73 |
||
| replacement | |||||
|
48510
|
48510
48511-29416 Absorber Assy, Shock, Front Rh[01.1996 -] LY100..EUR |
48511-29416 |
US $105.08 |
||
|
48510A
|
48510A
90948-01003 Rubber Cushion[05.1995 -] LY100,YY100 |
90948-01003 |
from US $1.72 |
||
|
48510B
|
48510B
90948-02017 Retainer, Cushion, No.1(For Front Shock Absorber)[05.1995 -] LY100,YY100 |
90948-02017 |
from US $1.37 |
||
|
48510C
|
48510C
90948-02002 Retainer, Steering Damper Cushion[05.1995 -] LY100,YY100 |
90948-02002 |
from US $1.74 |
||
|
48520
|
48520
48511-29365 Absorber Assy, Shock, Front Rh[05.1995 - 01.1996] LY100..EUR |
48511-29365 |
US $94.64 |
||
| replacement | |||||
|
48520
|
48520
48511-29416 Absorber Assy, Shock, Front Rh[05.1995 - 01.1996] LY100..EUR |
48511-29416 |
US $105.08 |
||
|
48520
|
48520
48511-29366 Absorber Assy, Shock, Front Rh[01.1996 -] LY100..EUR |
48511-29366 |
US $91.73 |
||
| replacement | |||||
|
48520
|
48520
48511-29416 Absorber Assy, Shock, Front Rh[01.1996 -] LY100..EUR |
48511-29416 |
US $105.08 |
||
|
48660
|
48660
48660-26011
Bar Assy, Strut, Rh
[05.1995 -] LY100,YY100 |
48660-26011 |
— | ||
|
48670
|
48670
48670-26011 Bar Assy, Strut, Lh[05.1995 -] LY100,YY100 |
48670-26011 |
US $59.55 |
||
|
48674
|
48674
48674-26010 Cushion, Strut Bar[05.1995 -] LY100,YY100 |
48674-26010 |
from US $12.77 |
||
|
48674A
|
48674A
90948-02062 Retainer, Cushion(For Strut Bar Cushion)[05.1995 -] LY100,YY100 |
90948-02062 |
from US $5.56 |
||
|
48674B
|
48674B
90387-18005 Collar(For Strut Bar Cushion)[05.1995 -] LY100,YY100 |
90387-18005 |
from US $5.27 |
||
|
48811
|
48811
48811-26050 Bar, Stabilizer, Front[05.1995 -] LY100..EUR |
48811-26050 |
US $171.81 |
||
|
48815
|
48815
48815-26040 Bush, Front Stabilizer Bar, No.1[05.1995 -] LY100..EUR |
48815-26040 |
from US $12.96 |
||
|
48817
|
48817
90948-01002 Cushion[05.1995 -] LY100,YY100 |
90948-01002 |
from US $2.75 |
||
|
48817A
|
48817A
90948-02004 Cushion Retainer[05.1995 -] LY100,YY100 |
90948-02004 |
from US $1.56 |
||
|
48817B
|
48817B
90948-02005 Retainer No.2[05.1995 -] LY100,YY100 |
90948-02005 |
from US $1.19 |
||
|
48817C
|
48817C
90440-14004 Collar(For Stabilizer Bar)[05.1995 -] LY100,YY100 |
90440-14004 |
US $9.44 |
||
|
48817D
|
48817D
90101-10090 Bolt(For Front Stabilizer)[05.1995 -] LY100,YY100 |
90101-10090 |
US $6.08 |
||
|
48817F
|
48817F
94184-61001 Nut(For Front Stabilizer Bar)[05.1995 -] LY100,YY100 |
94184-61001 |
from US $0.78 |
||
|
48823B
|
48823B
48823-26050
Cover, Front Stabilizer Bracket
[05.1995 -] LY100,YY100 |
48823-26050 |
— | ||
| replacement | |||||
|
48823B
|
48823B
48823-26120 Cover, Stabilizer Link(For Rear)[05.1995 -] LY100,YY100 |
48823-26120 |
US $13.92 |
||
|
9011908A46
|
9011908A46
90119-08A46 BOLT WWASHER |
90119-08A46 |
US $1.28 |
||
|
9010112010
|
9010112010
90101-12010 Bolt, Hexagon(For Front Disc Brake Caliper) |
90101-12010 |
US $4.02 |
||
|
9010112157
|
9010112157
90101-12157 New Genuine Part |
90101-12157 |
US $4.96 |
||
|
9010510166
|
9010510166
90105-10166 BOLT |
90105-10166 |
US $3.20 |
||
|
9017010021
|
9017010021
90170-10021 Nut(For Steering Center Arm) |
90170-10021 |
from US $0.74 |
||
|
9017012004
|
9017012004
90170-12004 NUT |
90170-12004 |
from US $1.23 |
||
|
9017012008
|
9017012008
90170-12008 NUT |
90170-12008 |
from US $1.40 |
||
|
9017012016
|
9017012016
90170-12016 New Genuine Part |
90170-12016 |
US $5.76 |
||
|
9017018001
|
9017018001
90170-18001 NUT |
90170-18001 |
from US $2.34 |
||
|
9020118011
|
9020118011
90201-18011 WASHER |
90201-18011 |
US $8.32 |
||
|
9020618001
|
9020618001
90206-18001 WASHER |
90206-18001 |
from US $2.56 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.78 |
||
|
9462111200
|
9462111200
94621-11200 New Genuine Part |
94621-11200 |
US $3.20 |
||
|
9462211000
|
9462211000
94622-11000 WASHER |
94622-11000 |
from US $1.42 |
||
