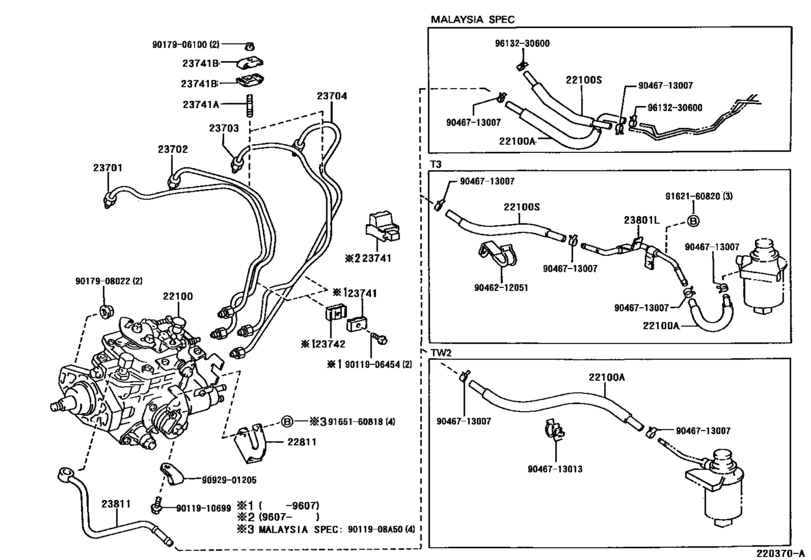

Injection Pump Assembly ([05.1995 - ] (9505- )2L) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-5B360
Pump Assy, Injection Or Supply
[05.1995 - 05.1998] 2L..LY100..EUR |
22100-5B360 |
— | ||
|
22100
|
22100
22100-5B580 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [10.1996 - 05.1998] 2L..LY100..LHD..EUR SWITZERLAND SPEC |
22100-5B580 |
US $4,746.56 |
||
|
22100
|
22100
22100-5B840 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [05.1998 -] 2L..LY100..LHD..EUR SWITZERLAND SPEC |
22100-5B840 |
US $5,503.68 |
||
|
22100
|
22100
22100-5D030 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [05.1998 -] 2L..LY100..EUR |
22100-5D030 |
US $4,950.40 |
||
|
22100A
|
22100A
90447-14060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[05.1995 -] 2L..LY100..TW2 L=550 |
90447-14060 |
US $27.66 |
||
|
22811
|
22811
22811-54041
Stay, Injection Pump, No.1
[05.1995 - 04.1998] 2L..LY100 |
22811-54041 |
— | ||
| replacement | |||||
|
22811
|
22811
22811-54042 Stay, Injection Pump, No.1[05.1995 - 04.1998] 2L..LY100 |
22811-54042 |
US $6.99 |
||
|
22811
|
22811
22811-54042 Stay, Injection Pump, No.1[04.1998 -] 2L..LY100 |
22811-54042 |
US $6.99 |
||
|
23701
|
23701
23701-54140 Pipe Sub-Assy, Injection, No.1[05.1995 -] 2L..LY100 |
23701-54140 |
US $25.99 |
||
|
23702
|
23702
23702-54140 Pipe Sub-Assy, Injection, No.2[05.1995 -] 2L..LY100 |
23702-54140 |
from US $25.99 |
||
|
23703
|
23703
23703-54100 Pipe Sub-Assy, Injection, No.3[05.1995 -] 2L..LY100 |
23703-54100 |
US $25.99 |
||
| replacement | |||||
|
23703
|
23703
23703-05011
Pipe Sub-Assy, Injection, No.3
[05.1995 -] 2L..LY100 |
23703-05011 |
— | ||
|
23704
|
23704
23704-54100 Pipe Sub-Assy, Injection, No.4[05.1995 -] 2L..LY100 |
23704-54100 |
from US $25.99 |
||
| replacement | |||||
|
23704
|
23704
23704-05010
Pipe Sub-Assy, Injection, No.4
[05.1995 -] 2L..LY100 |
23704-05010 |
— | ||
|
23741
|
23741
23741-54010 Clamp, Injection Pipe, No.1[05.1995 - 07.1996] 2L..LY100 |
23741-54010 |
US $20.22 |
||
|
23741
|
23741
23741-54030 Clamp, Injection Pipe, No.1[07.1996 -] 2L..LY100 |
23741-54030 |
US $7.43 |
||
|
23741A
|
23741A
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)[05.1995 -] 2L..LY100 |
90116-06095 |
US $1.44 |
||
|
23741B
|
23741B
23741-56010 Clamp, Injection Pipe, No.1[05.1995 -] 2L..LY100 |
23741-56010 |
from US $6.49 |
||
|
23742
|
23742
23742-54010 Clamp, Injection Pipe, No.2[05.1995 - 07.1996] 2L..LY100 |
23742-54010 |
US $20.22 |
||
|
23811
|
23811
23811-54160 Pipe, Fuel(For Fuel Filter To Injection Pump)[05.1995 -] 2L..LY100 |
23811-54160 |
US $22.01 |
||
|
9011908A50
|
9011908A50
90119-08A50 New Genuine Part |
90119-08A50 |
US $1.75 |
||
| replacement | |||||
|
9011908A50
|
9011908A50
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.82 |
||
|
9011906454
|
9011906454
90119-06454 Bolt |
90119-06454 |
US $1.75 |
||
|
9011910699
|
9011910699
90119-10699
BOLT WWASHER
|
90119-10699 |
— | ||
|
9017906100
|
9017906100
90179-06100
New Genuine Part
|
90179-06100 |
— | ||
| replacement | |||||
|
9017906100
|
9017906100
90179-06204 NUT |
90179-06204 |
US $1.92 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9046212051
|
9046212051
90462-12051 New Genuine Part |
90462-12051 |
US $8.59 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.60 |
||
|
9046713013
|
9046713013
90467-13013 New Genuine Part |
90467-13013 |
US $1.46 |
||
|
9092901205
|
9092901205
90929-01205 CLAMP |
90929-01205 |
US $6.08 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
US $2.72 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
