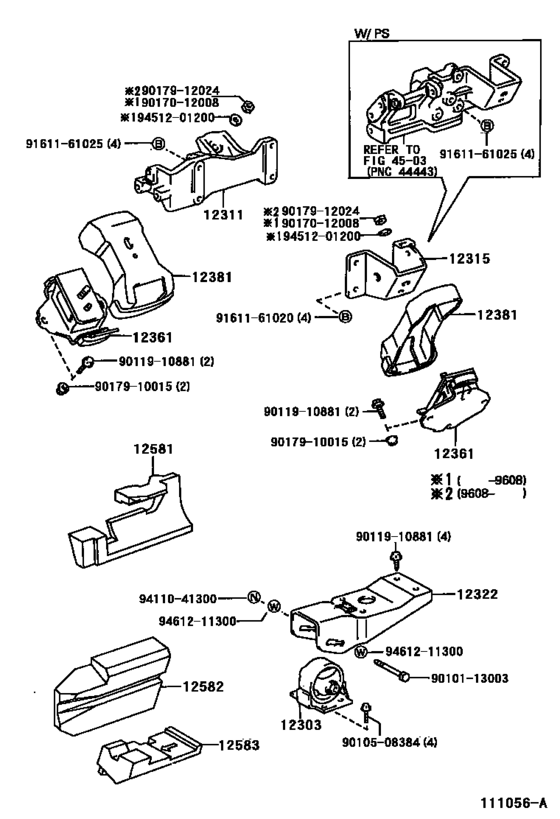

Mounting ([05.1995 - ] (9505- )2L) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12303
|
12303
12303-67020
Bracket Sub-Assy, Engine Mounting, Rear
[05.1995 - 12.1995] 2Y..YY100; 2L..LY100 |
12303-67020 |
— | ||
| replacement | |||||
|
12303
|
12303
12303-67021 Bracket Sub-Assy, Engine Mounting, Rear[05.1995 - 12.1995] 2Y..YY100; 2L..LY100 |
12303-67021 |
from US $51.61 |
||
|
12303
|
12303
12303-67021 Bracket Sub-Assy, Engine Mounting, Rear[12.1995 -] 2L..LY100; 2Y..YY100 |
12303-67021 |
from US $51.61 |
||
|
12311
|
12311
12311-54091 Bracket, Engine Mounting, Front No.1 Rh[05.1995 - 05.1999] 2L..LY100 |
12311-54091 |
US $110.66 |
||
|
12311
|
12311
12311-54260 Bracket, Engine Mounting, Front No.1 Rh[05.1999 -] 2L..LY100 |
12311-54260 |
US $106.29 |
||
|
12322
|
12322
12322-54050 Bracket, Engine Mounting, Rear No.2[05.1995 -] 2L..LY100; 2Y..YY100 |
12322-54050 |
US $44.84 |
||
|
12361
|
12361
12361-54200
Insulator, Engine Mounting, Front
[05.1995 -] 2L..LY100 |
12361-54200 |
— | ||
|
12381
|
12381
12381-54050
Stabilizer, Engine Mounting
[05.1995 -] 2L..LY100 |
12381-54050 |
— | ||
| replacement | |||||
|
12381
|
12381
12381-54052 Stabilizer, Engine Mounting[05.1995 -] 2L..LY100 |
12381-54052 |
US $17.65 |
||
|
12581
|
12581
12581-54010
Insulator, Cylinder Block, No.1
[05.1995 -] 2L..LY100..EUR |
12581-54010 |
— | ||
|
12582
|
12582
12582-54020 Insulator, Cylinder Block, No.2[05.1995 - 09.1995] 2L..LY100..EUR |
12582-54020 |
US $19.80 |
||
| replacement | |||||
|
12582
|
12582
12582-54021 Insulator, Cylinder Block, No.2[05.1995 - 09.1995] 2L..LY100..EUR |
12582-54021 |
US $20.97 |
||
|
12582
|
12582
12582-54021 Insulator, Cylinder Block, No.2[09.1995 -] 2L..LY100..EUR |
12582-54021 |
US $20.97 |
||
|
12583
|
12583
12583-54030 Insulator, Cylinder Block, No.3[05.1995 -] 2L..LY100..EUR |
12583-54030 |
US $22.89 |
||
|
9010113003
|
9010113003
90101-13003 BOLTHEXAGON |
90101-13003 |
US $8.64 |
||
|
9010508384
|
9010508384
90105-08384 New Genuine Part |
90105-08384 |
US $1.75 |
||
|
9011910881
|
9011910881
90119-10881 New Genuine Part |
90119-10881 |
US $1.31 |
||
|
9017012008
|
9017012008
90170-12008 NUT |
90170-12008 |
from US $1.40 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.17 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9411041300
|
9411041300
94110-41300 NUT |
94110-41300 |
from US $2.72 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9461211300
|
9461211300
94612-11300 Washer(For Outer Lever Oil Setting) |
94612-11300 |
from US $0.70 |
||
