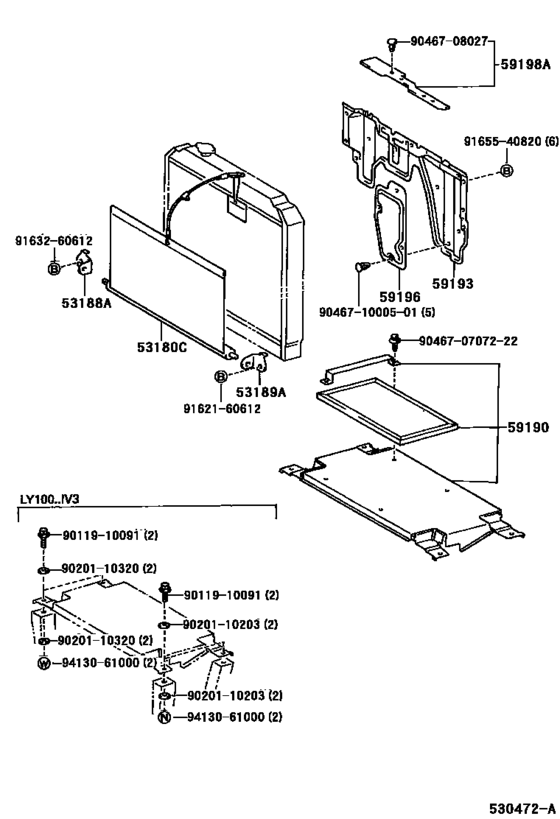

Radiator Support & Wind Guide ([05.1995 - ] (9505- )) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53180C
|
53180C
53180-25020
Shutter Assy, Radiator
[05.1995 -] LY100 |
53180-25020 |
— | ||
|
53188A
|
53188A
53188-37010 Bracket, Radiator Shutter Support, Rh[05.1995 -] LY100 |
53188-37010 |
US $6.84 |
||
|
53189A
|
53189A
53189-37010 Bracket, Radiator Shutter Support, Lh[05.1995 -] LY100 |
53189-37010 |
US $6.84 |
||
|
9011910091
|
9011910091
90119-10091
Bolt, Mounting
|
90119-10091 |
— | ||
|
9020110203
|
9020110203
90201-10203 Washer, Plate |
90201-10203 |
from US $1.70 |
||
|
9020110320
|
9020110320
90201-10320 Retainer, Rear Shock Absober Cushion |
90201-10320 |
from US $3.69 |
||
|
9046708027
|
9046708027
90467-08027 Clip(For Hood Air Intake Duct Seal) |
90467-08027 |
US $2.56 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
|
9163260612
|
9163260612
91632-60612 BOLT WWASHER |
91632-60612 |
US $1.46 |
||
| replacement | |||||
|
9163260612
|
9163260612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.84 |
||
|
904670707222
|
904670707222
90467-07072-22 Clip (For Roof Side Garnish) |
90467-07072-22 |
US $1.92 |
||
|
904671000501
|
904671000501
90467-10005-01 Clip(For Front Fender Apron Seal) |
90467-10005-01 |
US $3.36 |
||
