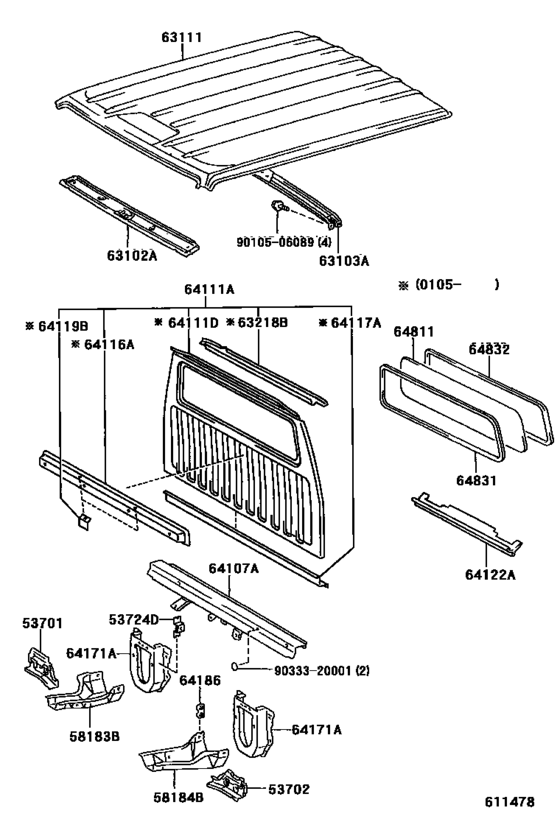

Roof Panel & Back Panel ([05.1995 - ] (9505- )TW2) Diagram Toyota DYNA 100
- Year
- 1995 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- DYNA 100
- From
- 05.1995
- To
- 08.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- TW2
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53701
|
53701
53717-37020 Apron Sub-Assy, Front Fender, Rh[05.1995 -] LY100..TW2 |
53717-37020 |
US $36.69 |
||
|
53702
|
53702
53718-37020 Apron Sub-Assy, Front Fender, Lh[05.1995 -] LY100..TW2 |
53718-37020 |
US $36.69 |
||
|
58183B
|
58183B
58102-25010 Reinforcement, Rear Mounting, Rh[05.1995 -] LY100,YY100 |
58102-25010 |
US $96.10 |
||
| replacement | |||||
|
58183B
|
58183B
58102-25020 Reinforcement, Rear Mounting, RhREAR MOUNTING, RH [05.1995 -] LY100,YY100 |
58102-25020 |
US $96.10 |
||
|
58184B
|
58184B
58103-25010 Reinforcement, Rear Mounting, Lh[05.1995 -] LY100,YY100 |
58103-25010 |
US $99.01 |
||
|
63102A
|
63102A
63132-95418 Panel Sub-Assy, Windshield Header[05.1995 -] LY100,YY100 |
63132-95418 |
US $88.82 |
||
| replacement | |||||
|
63102A
|
63102A
63132-37010 Panel Sub-Assy, Windshield Header[05.1995 -] LY100,YY100 |
63132-37010 |
from US $85.66 |
||
|
63102A
|
63102A
63132-95420 Panel Sub-Assy, Windshield Header[05.1995 -] LY100,YY100 W(ROOF VENTILATOR) |
63132-95420 |
US $88.82 |
||
| replacement | |||||
|
63102A
|
63102A
63132-37010 Panel Sub-Assy, Windshield Header[05.1995 -] LY100,YY100 W(ROOF VENTILATOR) |
63132-37010 |
from US $85.66 |
||
|
63103A
|
63103A
63103-95412 Reinforcement Sub-Assy, Roof Panel[05.1995 -] LY100..TW2 |
63103-95412 |
US $115.02 |
||
|
63111
|
63111
63111-95416 Panel, Roof[05.1995 -] LY100..TW2 W(ROOF VENTILATOR) |
63111-95416 |
US $828.46 |
||
|
63111
|
63111
63111-95417 Panel, Roof[05.1995 -] LY100..TW2 |
63111-95417 |
US $828.46 |
||
|
63218B
|
63218B
63218-95402 Channel, Roof Drip, Rear[05.2001 - 08.2001] LY100..TW2 |
63218-95402 |
US $46.30 |
||
|
64107A
|
64107A
64107-25180 Frame Sub-Assy, BackBACK [05.1995 - 05.1998] LY100..TW2 |
64107-25180 |
US $224.22 |
||
| replacements | |||||
|
64107A
|
64107A
64107-25181
Panel Sub-assy, Quarter Inner, Lower Lh
[05.1995 - 05.1998] LY100..TW2 |
64107-25181 |
— | ||
|
64107A
|
64107A
90333-20001 PLUG[05.1995 - 05.1998] LY100..TW2 |
90333-20001 |
from US $1.12 |
||
|
64107A
|
64107A
64107-25182 Frame Sub-Assy, BackBACK [05.1998 -] LY100..TW2 |
64107-25182 |
US $224.22 |
||
|
64111A
|
64111A
64100-95450 Panel, Back[05.1995 - 08.2001] LY100..TW2 |
64100-95450 |
US $805.17 |
||
| replacements | |||||
|
64111A
|
64111A
63218-95402 Channel, Roof Drip, Rear[05.1995 - 08.2001] LY100..TW2 |
63218-95402 |
US $46.30 |
||
|
64111A
|
64111A
64111-95412 Panel, Upper Back[05.1995 - 08.2001] LY100..TW2 |
64111-95412 |
US $742.56 |
||
|
64111A
|
64111A
64116-95A01 Reinforcement, Back, Lower[05.1995 - 08.2001] LY100..TW2 |
64116-95A01 |
US $96.10 |
||
|
64111A
|
64111A
64117-95400 Reinforcement, Cab Back, Lower[05.1995 - 08.2001] LY100..TW2 |
64117-95400 |
US $64.21 |
||
|
64111A
|
64111A
64119-95A01 Reinforcement, Cab Back Side, Lh[05.1995 - 08.2001] LY100..TW2 |
64119-95A01 |
US $4.95 |
||
|
64111D
|
64111D
64111-95412 Panel, Upper Back[05.2001 - 08.2001] LY100..TW2 |
64111-95412 |
US $742.56 |
||
|
64116A
|
64116A
64116-95A01 Reinforcement, Back, Lower[05.2001 - 08.2001] LY100..TW2 |
64116-95A01 |
US $96.10 |
||
|
64117A
|
64117A
64117-95400 Reinforcement, Cab Back, Lower[05.2001 - 08.2001] LY100..TW2 |
64117-95400 |
US $64.21 |
||
|
64119B
|
64119B
64119-95A01 Reinforcement, Cab Back Side, Lh[05.2001 - 08.2001] LY100..TW2 |
64119-95A01 |
US $4.95 |
||
|
64122A
|
64122A
64122-37061 Baffle, Dust Rear Body[05.1995 -] LY100..TW2..CBU |
64122-37061 |
US $38.88 |
||
|
64171A
|
64171A
64171-95410 Bracket, Cab Rear Mounting[05.1995 -] LY100..TW2 |
64171-95410 |
US $123.76 |
||
|
64186
|
64186
64186-95A00 Retainer, Rear Mounting Bracket[05.1995 -] LY100,YY100..ARL,EUR |
64186-95A00 |
US $4.95 |
||
|
64811
|
64811
64811-37080 Glass, Back Window[10.1996 -] LY100..TW2 *TEM,T=3.5,GREEN |
64811-37080 |
US $264.99 |
||
|
64811
|
64811
64811-95410 Glass, Back Window[05.1995 - 10.1996] LY100..TW2 *TEM,T=3.5 |
64811-95410 |
US $106.29 |
||
| replacement | |||||
|
64811
|
64811
64811-37080 Glass, Back Window[05.1995 - 10.1996] LY100..TW2 *TEM,T=3.5 |
64811-37080 |
US $264.99 |
||
|
64831
|
64831
64831-37050
Weatherstrip, Back Window Glass
[05.1999 -] LY100,YY100 |
64831-37050 |
— | ||
| replacement | |||||
|
64831
|
64831
64831-37051 Weatherstrip, Back Window Glass[05.1999 -] LY100,YY100 |
64831-37051 |
US $75.24 |
||
|
64831
|
64831
64831-95406 Weatherstrip, Back Window Glass[05.1995 - 05.1999] LY100,YY100 |
64831-95406 |
US $66.54 |
||
| replacement | |||||
|
64831
|
64831
64831-37051 Weatherstrip, Back Window Glass[05.1995 - 05.1999] LY100,YY100 |
64831-37051 |
US $75.24 |
||
|
64832
|
64832
64832-37040 Key, Back Window Weatherstrip[05.1999 -] LY100,YY100 |
64832-37040 |
US $11.36 |
||
|
64832
|
64832
64832-95013
Key, Back Window Weatherstrip
[05.1995 - 05.1999] LY100,YY100 |
64832-95013 |
— | ||
| replacement | |||||
|
64832
|
64832
64832-37040 Key, Back Window Weatherstrip[05.1995 - 05.1999] LY100,YY100 |
64832-37040 |
US $11.36 |
||
|
9010506089
|
9010506089
90105-06089 New Genuine Part |
90105-06089 |
US $1.60 |
||
| replacement | |||||
|
9010506089
|
9010506089
91554-80614 New Genuine Part |
91554-80614 |
US $1.12 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
