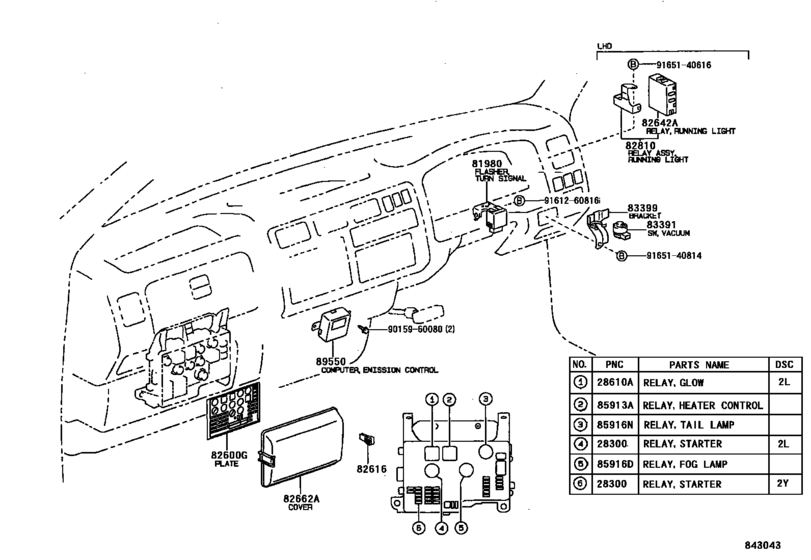

Switch & Relay & Computer ([05.1999 - ] INSTRUMENT PANEL & COWL (9905- )ARL,GEN) Diagram Toyota DYNA 100
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- LY100
- ENGINE
- 2L
- DESTINATION
- GEN
- Model
- DYNA 100
- From
- 12.1997
- To
- 07.2001
- Vehicle Model
- Dyna 100
- Deck,cab
- T3
- Driver's Position
- LHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-46010 Relay Assy, Starter[05.1999 -] 2L..LY100 |
28300-46010 |
from US $57.15 |
||
|
28300
|
28300
28300-54110 Relay Assy, Starter[05.1995 - 05.1998] 2L..LY100 |
28300-54110 |
from US $61.44 |
||
|
28610A
|
28610A
28610-54360 Relay Assy, Glow Plug[05.1999 -] 2L..LY100 |
28610-54360 |
from US $44.69 |
||
|
28610A
|
28610A
28610-64110 Relay Assy, Glow Plug[05.1995 - 05.1998] 2L..LY100 |
28610-64110 |
from US $63.94 |
||
|
81980
|
81980
81980-25090 Flasher Assy, Turn Signal[05.1999 -] LY100,YY100 |
81980-25090 |
US $92.40 |
||
|
81980
|
81980
81980-37041 Flasher Assy, Turn Signal[05.1995 - 05.1999] LY100,YY100 |
81980-37041 |
US $101.92 |
||
| replacement | |||||
|
81980
|
81980
81980-25090 Flasher Assy, Turn Signal[05.1995 - 05.1999] LY100,YY100 |
81980-25090 |
US $92.40 |
||
|
82600G
|
82600G
82683-25070 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [08.1997 - 05.1998] LY100,YY100 |
82683-25070 |
US $3.64 |
||
|
82600G
|
82600G
82683-25110 Plate, Caution(For Fuse)CAUTION(FOR FUSE) [05.1999 -] LY100..GEN |
82683-25110 |
US $3.64 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[08.1997 -] YY100;LY100..RHD;LY100..LHD..IV |
82616-20010 |
from US $2.36 |
||
|
82662A
|
82662A
82662-37010-B0 Cover, Relay Block, Upper[05.1995 -] LY100,YY100 BLUISH GRAY,TRIM1# |
82662-37010-B0 |
US $22.89 |
||
|
85913A
|
85913A
90987-04002 Relay, Ignition, No.1[05.1995 -] LY100,YY100 |
90987-04002 |
from US $24.67 |
||
|
85916D
|
85916D
90987-02004 Relay Assy, Starter[05.1995 -] LY100,YY100..GEN |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
85916D
|
85916D
909870200483 [05.1995 -] LY100,YY100..GEN |
909870200483 |
US $53.75 |
||
|
85916N
|
85916N
90987-02004 Relay Assy, Starter[05.1995 -] LY100,YY100 |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
85916N
|
85916N
909870200483 [05.1995 -] LY100,YY100 |
909870200483 |
US $53.75 |
||
|
9015960080
|
9015960080
90159-60080 SCREW |
90159-60080 |
US $3.52 |
||
|
9161260816
|
9161260816
91612-60816
Bolt, Exhaust Valve Cover
|
91612-60816 |
— | ||
| replacement | |||||
|
9161260816
|
9161260816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
