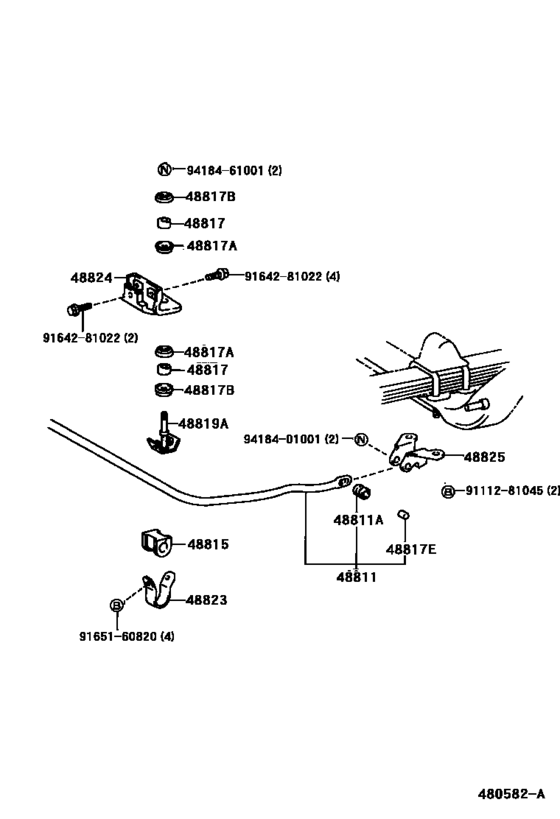

Front Spring & Shock Absorber ([05.1995 - ] (9505- )LY20#,21#,YY201,211) Diagram Toyota DYNA 150/ TOYOACE G15
- Year
- 1995 - 1996
- Sales region
- Japan
- Frame
- LY201
- ENGINE
- 3L
- TRANSMISSION
- MTM
- Model
- DYNA 150/ TOYOACE G15
- From
- 05.1995
- To
- 10.1996
- Deck,cab
- T3
- Loading Capacity
- 15T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48811
|
48811
48804-25010 Bar, Stabilizer, Front[05.1995 -] LY20#,21#,YY201,211 |
48804-25010 |
US $206.75 |
||
|
48811A
|
48811A
90385-13004 Bush(For Front Suspension Torque Arm)[05.1995 -] LY20#,21#,YY201,211 |
90385-13004 |
from US $4.04 |
||
|
48815
|
48815
48815-26060 Bush, Front Stabilizer Bar, No.1[05.1995 -] LY20#,21#,YY201,211 |
48815-26060 |
from US $13.94 |
||
|
48817
|
48817
90948-01002 Cushion[05.1995 -] LY20#,21#,YY201,211 |
90948-01002 |
from US $2.75 |
||
|
48817A
|
48817A
90948-02004 Cushion Retainer[05.1995 -] LY161..MTM..DSL;LY121,131,151,20#,21#,YY121,131,201,211 |
90948-02004 |
from US $1.60 |
||
|
48817B
|
48817B
90948-02005 Retainer No.2[05.1995 -] LY161..MTM..DSL;LY121,131,151,20#,21#,YY121,131,201,211 |
90948-02005 |
from US $1.40 |
||
|
48817E
|
48817E
90560-10044 Collar(For Front Suspension Torque Arm)[05.1995 -] LY20#,21#,YY201,211 |
90560-10044 |
from US $2.08 |
||
|
48819A
|
48819A
48819-25010 Bolt, Front Stabilizer[05.1995 -] LY20#,21#,YY201,211 |
48819-25010 |
US $19.36 |
||
|
48823
|
48823
48823-26090 Cover, Stabilizer Link(For Front)[05.1995 -] LY20#,21#,YY201,211 |
48823-26090 |
from US $11.91 |
||
|
48824
|
48824
48824-25010 Bracket, Stabilizer, Front[05.1995 -] LY20#,21#,YY201,211 |
48824-25010 |
US $40.33 |
||
|
48825
|
48825
48825-25010 Bracket, Stabilizer, No.2[05.1995 -] LY20#,21#,YY201,211..T1,T2,T3,TW2 |
48825-25010 |
US $17.47 |
||
|
9111281045
|
9111281045
91112-81045 Bolt(For Rear Stabilizer) |
91112-81045 |
US $2.72 |
||
|
9164281022
|
9164281022
91642-81022 BOLT WWASHER |
91642-81022 |
US $2.33 |
||
| replacement | |||||
|
9164281022
|
9164281022
91642-H1022 BOLT W-WASHER |
91642-H1022 |
US $2.24 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9418401001
|
9418401001
94184-01001 Nut |
94184-01001 |
from US $1.37 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.82 |
||
