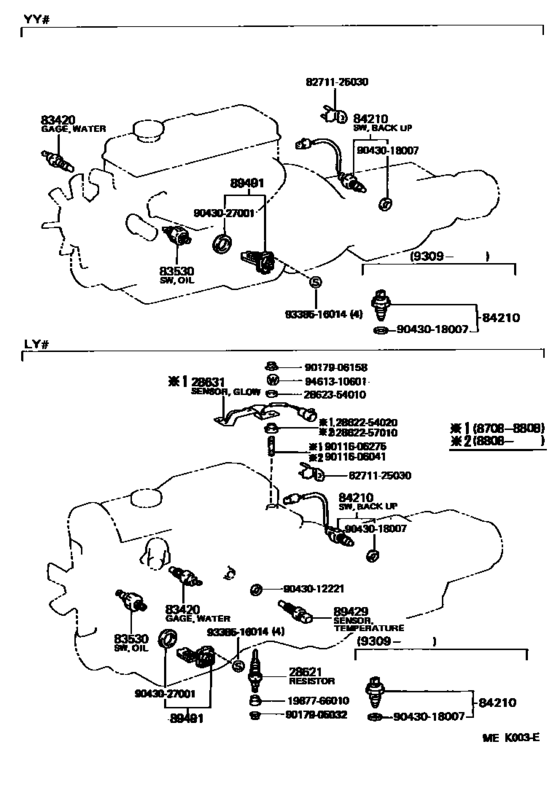

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota DYNA 150/ TOYOACE G15
- Year
- 1988 - 1995
- Sales region
- General
- Frame
- LY61
- ENGINE
- 3L
- DESTINATION
- GEN
- Model
- DYNA 150
- From
- 08.1988
- To
- 05.1995
- Vehicle Model
- Dyna 150
- Deck,cab
- T3
- Driver's Position
- RHD
- Building Condition
- IV
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28621
|
28621
28621-54080
Resistor, Glow Plug
[08.1988 - 10.1989] 3L..LY61..GEN..IV IRELAND SPEC |
28621-54080 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[01.1993 - 05.1995] LY61 NIPPONDENSO |
83420-16040 |
from US $32.68 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1987 - 08.1990] LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[08.1987 - 05.1995] LY6# |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[08.1987 - 05.1995] LY6# |
83530-60030 |
from US $25.68 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[09.1993 - 05.1995] LY61,YY52,61 |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[09.1993 - 05.1995] LY61,YY52,61 |
84210-52050 |
from US $20.67 |
||
|
84210
|
84210
84210-60021 Switch Assy, Back-Up Lamp[08.1987 - 09.1993] LY6#,YY52,61 |
84210-60021 |
from US $47.40 |
||
|
89429
|
89429
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1988 - 10.1989] LY61..GEN..IV IRELAND SPEC |
89422-20010 |
from US $36.78 |
||
|
89491
|
89491
89491-26090
Sensor, Engine Oil Level
[10.1989 - 03.1990] LY61 |
89491-26090 |
— | ||
| replacement | |||||
|
89491
|
89491
89491-26091 Sensor, Engine Oil Level[10.1989 - 03.1990] LY61 |
89491-26091 |
US $295.28 |
||
|
89491
|
89491
89491-36100 Sensor, Engine Oil Level[03.1992 - 05.1995] LY61 |
89491-36100 |
US $304.30 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862254020
|
2862254020
28622-54020
Insulator, Glow Plug Resistor, No.1
|
28622-54020 |
— | ||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
8271125030
|
8271125030
82711-25030 Wire, Fuse To Fuse(for Combustion Heater) |
82711-25030 |
US $5.10 |
||
|
9011606041
|
9011606041
90116-06041
Bolt, Stud(For Intake Manifold To Glow Plug Connector No.1)
|
90116-06041 |
— | ||
| replacement | |||||
|
9011606041
|
9011606041
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.80 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.09 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.28 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
