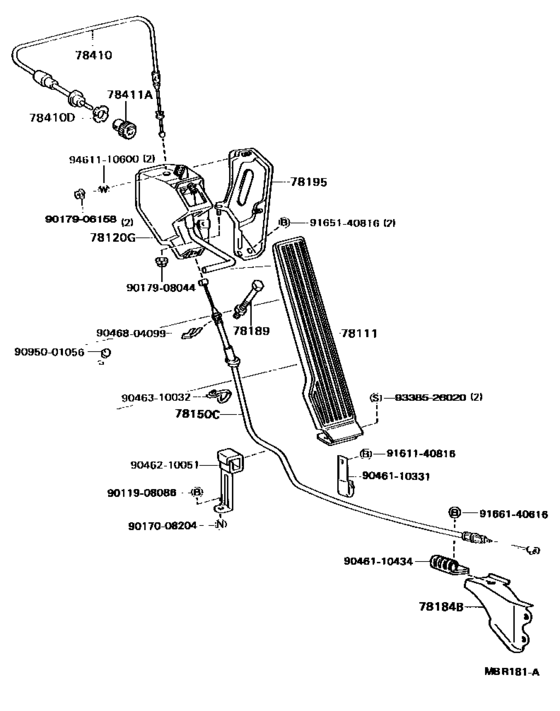

Accelerator Link ([08.1988 - ] (8808- )BU60,70,83..LHD) Diagram Toyota DYNA 200/ TOYOACE G25
- Year
- 1988 - 1995
- Sales region
- General
- Frame
- BU70
- body
- BUS
- ENGINE
- B
- DESTINATION
- GEN
- Model
- DYNA 200
- From
- 08.1988
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Dyna 200
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78111
|
78111
78110-95014 Pedal, AcceleratorACCELERATOR [08.1988 - 05.1995] BU6#,70,83,84..LHD |
78110-95014 |
US $29.70 |
||
|
78120G
|
78120G
78202-95401 Link, AcceleratorACCELERATOR PEDAL [08.1988 - 10.1989] BU6#,70,83,84,88,91,96..LHD |
78202-95401 |
US $113.57 |
||
|
78150C
|
78150C
78150-37080 Wire Assy, Accelerator FlexibleACCELERATOR FLEXIBLE [09.1991 - 05.1995] BU60,70,83..LHD |
78150-37080 |
US $61.88 |
||
|
78150C
|
78150C
78150-95480 Wire Assy, Accelerator Flexible[08.1988 - 09.1991] BU60,70,83..LHD |
78150-95480 |
US $62.32 |
||
| replacement | |||||
|
78150C
|
78150C
78150-37080 Wire Assy, Accelerator FlexibleACCELERATOR FLEXIBLE [08.1988 - 09.1991] BU60,70,83..LHD |
78150-37080 |
US $61.88 |
||
|
78184B
|
78184B
78184-90B02 Bracket Sub-Assy, Accelerator Control Cable[08.1988 - 05.1995] BU60,70,83 |
78184-90B02 |
US $26.94 |
||
|
78189
|
78189
78208-95402 Bolt, Accelerator Pedal StopperACCELERATOR PEDAL STOPPER [08.1988 - 05.1995] BU6#,70,83,84..LHD |
78208-95402 |
US $4.37 |
||
|
78195
|
78195
78195-95401 Bracket, Accelerator LinkACCELERATOR LINK [08.1988 - 05.1995] BU6#,70,83,84,88,91,96..LHD |
78195-95401 |
US $27.52 |
||
|
78410
|
78410
78404-95012 Cable Sub-Assy, Throttle ControlTHROTTLE CONTROL [08.1988 - 05.1995] BU6#,70,83,84,88,91,96..LHD |
78404-95012 |
US $34.94 |
||
|
78410D
|
78410D
78314-95010 Nut, Choke[08.1988 - 03.1997] BU6#,70,8#,9# |
78314-95010 |
from US $1.88 |
||
|
78411A
|
78411A
78411-22010 Knob, Throttle Cable[08.1988 - 03.1997] BU6#,70,8#,9# |
78411-22010 |
US $8.91 |
||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.84 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9046110331
|
9046110331
90461-10331 New Genuine Part |
90461-10331 |
US $7.28 |
||
|
9046110434
|
9046110434
90461-10434 Clamp (For Accelerator Wire Set) |
90461-10434 |
US $3.06 |
||
|
9046210051
|
9046210051
90462-10051 New Genuine Part |
90462-10051 |
US $7.72 |
||
|
9046310032
|
9046310032
90463-10032 New Genuine Part |
90463-10032 |
US $3.06 |
||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9338526020
|
9338526020
93385-26020 New Genuine Part |
93385-26020 |
US $1.44 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
