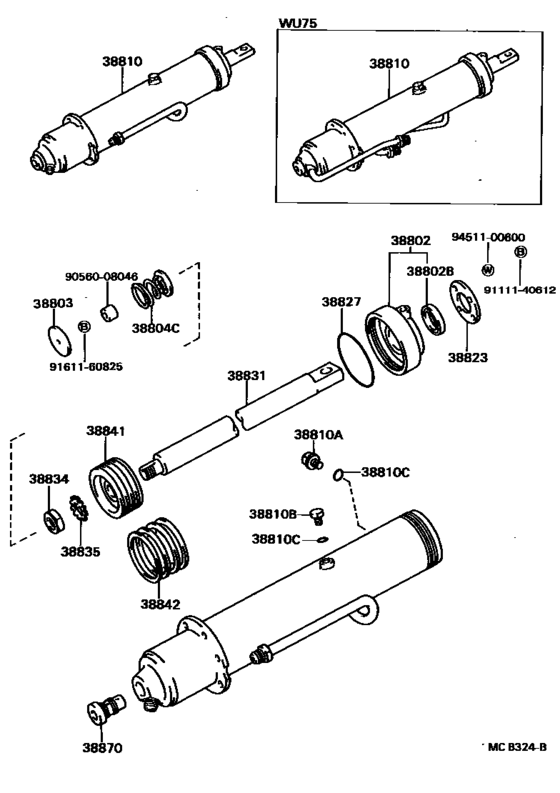

Hoist Cylinder ([09.1984 - ] (8409- )DM1,DM2,DM4) Diagram Toyota DYNA/ TOYOACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- BU64
- body
- DMP
- ENGINE
- 13B
- Model
- DYNA/TOYOACE
- From
- 09.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- DM4
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38802
|
38802
38806-96301 Head Sub-Assy, Cylinder[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
38806-96301 |
US $224.22 |
||
|
38802B
|
38802B
90311-50130
Seal, Oil (For Cylinder Head)
[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
90311-50130 |
— | ||
|
38803
|
38803
38803-96302 Valve Sub-Assy, Slow Return[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
38803-96302 |
US $24.32 |
||
|
38804C
|
38804C
38804-96304 Retainer Sub-Assy, Slow Return Spring[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
38804-96304 |
US $29.27 |
||
|
38810
|
38810
38810-96306 Cylinder Assy, Hoist[09.1984 - 08.1985] BU64..DMP..CBU |
38810-96306 |
US $6,566.56 |
||
| replacement | |||||
|
38810
|
38810
38810-96312
Cylinder Assy, Hoist
[09.1984 - 08.1985] BU64..DMP..CBU |
38810-96312 |
— | ||
|
38810
|
38810
38810-96309 Cylinder Assy, Hoist[08.1985 - 02.1986] BU64..DMP..CBU |
38810-96309 |
US $6,872.32 |
||
| replacement | |||||
|
38810
|
38810
38810-96313 Cylinder Assy, Hoist[08.1985 - 02.1986] BU64..DMP..CBU |
38810-96313 |
US $6,886.88 |
||
|
38810
|
38810
38810-96313 Cylinder Assy, Hoist[02.1986 - 08.1987] BU64..DMP..CBU |
38810-96313 |
US $6,886.88 |
||
|
38810A
|
38810A
38829-96301 Plug, No.1 (For Hoist Cylinder)[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
38829-96301 |
US $8.30 |
||
|
38810B
|
38810B
90341-10019 Plug, No.1 (For Hoist Cylinder)[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
90341-10019 |
US $3.64 |
||
|
38810C
|
38810C
38764-96301 Ring, O (For Oil Pump Valve Set)[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU ID=21.8 |
38764-96301 |
US $3.93 |
||
|
38810C
|
38810C
90301-10005 Ring, O (For Check Valve Spring)[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU ID=10.8 |
90301-10005 |
US $3.20 |
||
|
38823
|
38823
38823-96302 Cover, Cylinder Head[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
38823-96302 |
US $29.99 |
||
|
38827
|
38827
96711-31135
Ring, O (For Hoist Cylinder)
[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
96711-31135 |
— | ||
|
38831
|
38831
38833-96302 Rod, Hoist Cylinder Piston[09.1984 - 08.1987] BU64..DMP..CBU |
38833-96302 |
US $688.69 |
||
|
38834
|
38834
90170-35188 Nut, Dismounting[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
90170-35188 |
US $9.76 |
||
|
38835
|
38835
38835-96301 Washer, Lock (For Hoist Piston Set Nut)[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
38835-96301 |
US $2.77 |
||
|
38841
|
38841
38831-96307 Piston, Hoist Cylinder[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
38831-96307 |
US $125.22 |
||
|
38842
|
38842
38842-96301
Ring, Hoist Cylinder Piston
[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
38842-96301 |
— | ||
|
38870
|
38870
38470-96300 Valve Assy, Dump Flow Control[09.1984 - 08.1987] BU62,64..(DM1,DM2,DM4)..CBU |
38470-96300 |
US $165.98 |
||
|
9056008046
|
9056008046
90560-08046 New Genuine Part |
90560-08046 |
US $2.33 |
||
|
9111140612
|
9111140612
91111-40612
New Genuine Part
|
91111-40612 |
— | ||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
