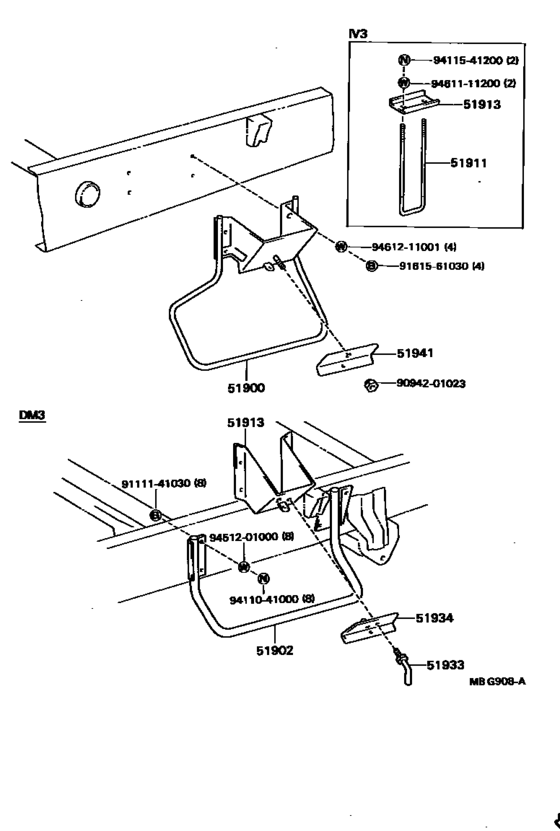

Spare Wheel Carrier ([09.1984 - ] (8409- )L2 ; (8409- )DM3,DM4) Diagram Toyota DYNA/ TOYOACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- BU64
- body
- DMP
- ENGINE
- 13B
- Model
- DYNA/TOYOACE
- From
- 09.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- DM4
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900
|
51900
51900-93100 Carrier Assy, Spare Wheel[09.1984 - 08.1987] BU64..L2; BU64..DM4 |
51900-93100 |
US $177.63 |
||
|
51941
|
51941
51912-93100 Retainer Sub-Assy, Spare Tire Carrier[09.1984 - 08.1987] BU64..L2; BU64..DM4 |
51912-93100 |
US $32.18 |
||
|
9094201023
|
9094201023
90942-01023 Nut, Hub (For Axle) |
90942-01023 |
US $13.60 |
||
|
9111141030
|
9111141030
91111-41030 Bolt(For Clutch Pedal Stopper) |
91111-41030 |
US $2.18 |
||
| replacement | |||||
|
9111141030
|
9111141030
91112-41030 Bolt(For Clutch Pedal Stopper) |
91112-41030 |
US $3.35 |
||
|
9161561030
|
9161561030
91615-61030 Bolt (for Transmission Control Cable Bracket) |
91615-61030 |
US $2.33 |
||
| replacement | |||||
|
9161561030
|
9161561030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.84 |
||
|
9461111200
|
9461111200
94611-11200 New Genuine Part |
94611-11200 |
US $2.56 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
