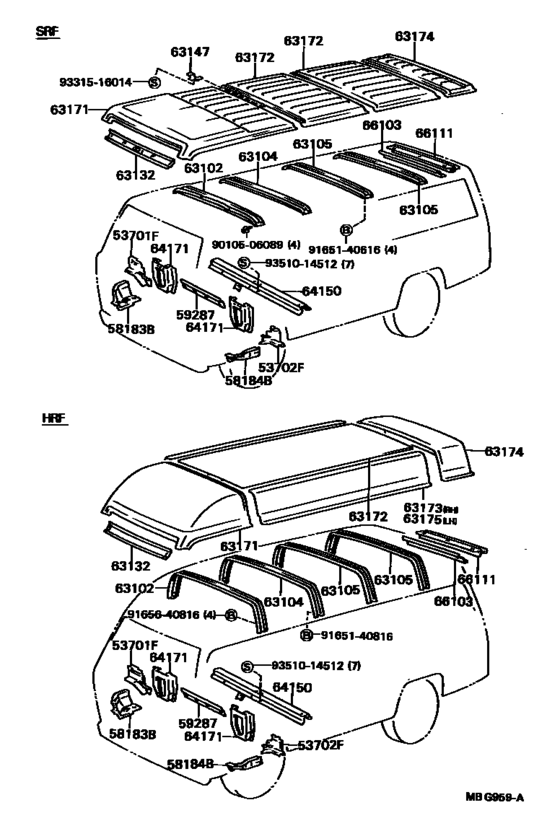

Roof Panel & Back Panel ([09.1984 - ] (8409- )BU70) Diagram Toyota DYNA/ TOYOACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- BU70
- body
- V
- ENGINE
- B
- Model
- DYNA/TOYOACE
- From
- 09.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- SRF
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53701F
|
53701F
53703-92604
Apron Sub-Assy, Front Fender, No.2 Rh
[09.1984 - 08.1987] BU60,62,70,82..HRF,SRF,TW1,TW2,TW4 |
53703-92604 |
— | ||
|
53702F
|
53702F
53704-92604
Apron Sub-Assy, Front Fender, No.2 Lh
[09.1984 - 08.1987] BU60,62,70,82..HRF,SRF,TW1,TW2,TW4 |
53704-92604 |
— | ||
|
58183B
|
58183B
58183-95402 Reinforcement, Rear Mounting, Rh[09.1984 - 08.1987] BU6#,70,80,81,82; BU85..06S |
58183-95402 |
US $55.62 |
||
| replacement | |||||
|
58183B
|
58183B
58183-95405 Reinforcement, Rear Mounting, Rh[09.1984 - 08.1987] BU6#,70,80,81,82; BU85..06S |
58183-95405 |
US $55.47 |
||
|
58184B
|
58184B
58184-95401 Reinforcement, Rear Mounting, Lh[09.1984 - 08.1987] BU6#,70,80,81,82; BU85..06S |
58184-95401 |
US $55.62 |
||
| replacement | |||||
|
58184B
|
58184B
58184-95404 Reinforcement, Rear Mounting, Lh[09.1984 - 08.1987] BU6#,70,80,81,82; BU85..06S |
58184-95404 |
US $55.47 |
||
|
59287
|
59287
59287-92602 Base, Transmission Cover, Center[09.1984 - 08.1987] BU60,62,70,82..HRF,SRF,TW1,TW2,TW4 |
59287-92602 |
US $77.17 |
||
|
63102
|
63102
63021-92604 Reinforcement Sub-Assy, Roof Panel, Front[09.1984 - 08.1987] BU70..SRF |
63021-92604 |
US $99.01 |
||
|
63104
|
63104
63301-92605 Reinforcement Sub-Assy, Roof Panel, Center[09.1984 - 08.1987] BU70..SRF |
63301-92605 |
US $149.97 |
||
|
63105
|
63105
63322-92605 Reinforcement Sub-Assy, Roof Panel, Rear[09.1984 - 08.1987] BU70..SRF |
63322-92605 |
US $91.73 |
||
|
63132
|
63132
63132-95417 Panel, Windshield Header, Inner[09.1984 - 03.1986] BU70..SRF; BU6#,80,81,82..CBU,IV3 |
63132-95417 |
US $91.73 |
||
| replacements | |||||
|
63132
|
63132
63132-37010 Panel Sub-Assy, Windshield Header[09.1984 - 03.1986] BU70..SRF; BU6#,80,81,82..CBU,IV3 |
63132-37010 |
US $90.27 |
||
|
63132
|
63132
90950-06047 New Genuine Part[09.1984 - 03.1986] BU70..SRF; BU6#,80,81,82..CBU,IV3 |
90950-06047 |
US $3.49 |
||
|
63132
|
63132
63132-95418 Panel Sub-Assy, Windshield Header[03.1986 - 08.1987] BU70..SRF; BU6#,80,81,82..CBU,IV3 |
63132-95418 |
US $88.82 |
||
| replacement | |||||
|
63132
|
63132
63132-37010 Panel Sub-Assy, Windshield Header[03.1986 - 08.1987] BU70..SRF; BU6#,80,81,82..CBU,IV3 |
63132-37010 |
US $90.27 |
||
|
63147
|
63147
63201-92605 Bracket, Roof Panel Reinforcement[09.1984 - 08.1987] BU70..SRF |
63201-92605 |
US $46.01 |
||
|
63171
|
63171
63115-92612 Panel, Roof[09.1984 - 08.1987] BU70..SRF |
63115-92612 |
US $870.69 |
||
|
63172
|
63172
63113-92605 Panel, Roof[09.1984 - 08.1987] BU70..SRF |
63113-92605 |
US $538.72 |
||
|
63174
|
63174
63115-92605 Panel, Roof[09.1984 - 08.1987] BU70..SRF |
63115-92605 |
US $412.05 |
||
|
64150
|
64150
64107-92603 Frame Assy, Back[08.1985 - 08.1987] BU70..03S,06S |
64107-92603 |
US $132.50 |
||
|
64150
|
64150
64107-92619
Frame Assy, Back
[09.1984 - 08.1985] BU70..03S,06S |
64107-92619 |
— | ||
|
64171
|
64171
64171-95410 Bracket, Cab Rear Mounting[09.1984 - 08.1987] BU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4 |
64171-95410 |
US $123.76 |
||
|
66103
|
66103
66103-92605 Rail Sub-Assy, Roof Back, Inner[09.1984 - 08.1987] BU70 |
66103-92605 |
US $99.01 |
||
|
66111
|
66111
63106-92605 Rail Sub-Assy, Roof Back Outer[09.1984 - 08.1987] BU70 |
63106-92605 |
US $145.60 |
||
|
9010506089
|
9010506089
90105-06089 New Genuine Part |
90105-06089 |
US $1.60 |
||
| replacement | |||||
|
9010506089
|
9010506089
91554-80614 New Genuine Part |
91554-80614 |
US $1.12 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9331516014
|
9331516014
93315-16014 Screw |
93315-16014 |
from US $1.16 |
||
|
9351014512
|
9351014512
93510-14512 New Genuine Part |
93510-14512 |
US $1.46 |
||
