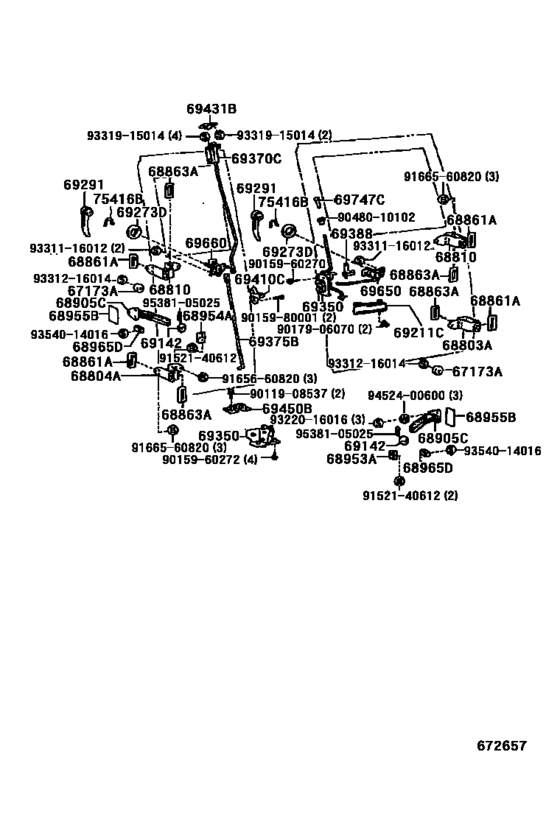

Back Door Lock & Hinge ([08.1988 - ] (8808- )V) Diagram Toyota DYNA/ TOYOACE
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- BU70
- body
- V
- ENGINE
- B
- Model
- DYNA/TOYOACE
- From
- 08.1988
- To
- 09.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 09S
- Vehicle Model
- DYN
- Deck,cab
- SRF
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67173A
|
67173A
67173-92605 Cushion, Back Door[08.1988 - 05.1995] BU70 |
67173-92605 |
US $8.74 |
||
|
68803A
|
68803A
68803-92601 Hinge Sub-Assy, Back Door, Lower Rh[08.1988 - 05.1995] BU70 |
68803-92601 |
US $110.66 |
||
|
68804A
|
68804A
68803-92601 Hinge Sub-Assy, Back Door, Lower Rh[08.1988 - 05.1995] BU70 |
68803-92601 |
US $110.66 |
||
|
68810
|
68810
68801-92602 Hinge Assy, Back Door, Upper[08.1988 - 05.1995] BU70 |
68801-92602 |
US $100.46 |
||
|
68861A
|
68861A
68861-92601 Hold, Back Door Hinge[08.1988 - 05.1995] BU70 |
68861-92601 |
US $5.82 |
||
|
68863A
|
68863A
68863-92600 Hold, Back Door Hinge[08.1988 - 05.1995] BU70 |
68863-92600 |
US $6.84 |
||
|
68905C
|
68905C
68905-92607 Stopper Sub-Assy, Back Door Open[08.1988 - 05.1995] BU70 |
68905-92607 |
US $59.70 |
||
|
68953A
|
68953A
68953-92605 Plate, Back Door Open Stopper Arm Guide[08.1988 - 12.1993] BU70 |
68953-92605 |
US $12.67 |
||
| replacement | |||||
|
68953A
|
68953A
68954-92605 Plate, Back Door Open Stopper Arm Guide[08.1988 - 12.1993] BU70 |
68954-92605 |
US $18.78 |
||
|
68954A
|
68954A
68954-92605 Plate, Back Door Open Stopper Arm Guide[08.1988 - 05.1995] BU70 |
68954-92605 |
US $18.78 |
||
|
68955B
|
68955B
68955-92605 Silencer, Back Door Open Stopper[08.1988 - 05.1995] BU70 |
68955-92605 |
US $8.74 |
||
|
68965D
|
68965D
68965-92605 Guide, Back Door Open Stopper[08.1988 - 05.1995] BU70 |
68965-92605 |
US $12.38 |
||
|
69142
|
69142
69142-92606 Cushion, Door Open Stopper[08.1988 - 05.1995] BU70 |
69142-92606 |
US $4.37 |
||
|
69211C
|
69211C
69210-92601 Handle, Back Door Outside, Rh[08.1988 - 05.1995] BU70 |
69210-92601 |
US $37.27 |
||
|
69273D
|
69273D
69273-92600 Plate, Door Inside[08.1988 - 05.1995] BU70 |
69273-92600 |
US $3.93 |
||
|
69291
|
69291
69271-95110 Handle Assy, Back Door Inside[08.1988 - 05.1995] BU70 |
69271-95110 |
US $23.73 |
||
|
69350
|
69350
69330-92605 Lock Assy, Back Door[08.1988 - 05.1995] BU70 上側 |
69330-92605 |
US $151.42 |
||
|
69350
|
69350
69350-95A00
Lock Sub-Assy, Back Door, Lower
[08.1988 - 05.1995] BU70 下側 |
69350-95A00 |
— | ||
|
69370C
|
69370C
69370-92605 Lock Sub-Assy, Back Door, Upper[08.1988 - 05.1995] BU70 |
69370-92605 |
US $85.90 |
||
|
69375B
|
69375B
69375-92605 Link, Back Door Lower[08.1988 - 05.1995] BU70 |
69375-92605 |
US $29.99 |
||
|
69388
|
69388
69388-12010 Snap, Rod(For Door Lock)[08.1988 - 05.1995] BU70 |
69388-12010 |
US $5.39 |
||
|
69410C
|
69410C
69410-37010 Plate Assy, Rear Door Lock Striker[09.1991 - 05.1995] BU70 |
69410-37010 |
US $17.76 |
||
|
69410C
|
69410C
69410-95010 Striker, Tail Gate Lock[08.1988 - 09.1991] BU70 |
69410-95010 |
US $17.18 |
||
| replacement | |||||
|
69410C
|
69410C
69410-37010 Plate Assy, Rear Door Lock Striker[08.1988 - 09.1991] BU70 |
69410-37010 |
US $17.76 |
||
|
69431B
|
69431B
69431-92605 Check, Back Door[08.1988 - 05.1995] BU70 |
69431-92605 |
US $31.74 |
||
|
69450B
|
69450B
69450-95A00 Striker Assy, Back Door[08.1988 - 05.1995] BU70 |
69450-95A00 |
US $14.41 |
||
|
69650
|
69650
69650-92605 Control Assy, Back Door Lock Remote, Rh[08.1988 - 05.1995] BU70 |
69650-92605 |
US $49.94 |
||
|
69660
|
69660
69660-92606 Control Assy, Back Door Lock Remote, Lh[08.1988 - 05.1995] BU70 |
69660-92606 |
US $66.54 |
||
|
69747C
|
69747C
69747-20020-01
Button, Door Locking
[08.1988 - 09.1991] BU70 BLACK,TRIM4# |
69747-20020-01 |
— | ||
| replacement | |||||
|
69747C
|
69747C
69747-20020-C0 Button, Door Locking(For Front Door)[08.1988 - 09.1991] BU70 BLACK,TRIM4# |
69747-20020-C0 |
US $4 |
||
|
75416B
|
75416B
90520-01192 Ring, Snap (For Back Door Inside Handle)[08.1988 - 05.1995] BU70 |
90520-01192 |
US $1.89 |
||
|
9011908537
|
9011908537
90119-08537 New Genuine Part |
90119-08537 |
US $2.18 |
||
|
9015960270
|
9015960270
90159-60270 New Genuine Part |
90159-60270 |
US $1.05 |
||
|
9015960272
|
9015960272
90159-60272
New Genuine Part
|
90159-60272 |
— | ||
|
9015980001
|
9015980001
90159-80001
SCREW
|
90159-80001 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9048010102
|
9048010102
90480-10102
Grommet(For Door Panel Lock Button)
|
90480-10102 |
— | ||
| replacement | |||||
|
9048010102
|
9048010102
90480-10102-01 Grommet(For Rear Door Panel Lock Button) |
90480-10102-01 |
from US $1.31 |
||
|
9152140612
|
9152140612
91521-40612 New Genuine Part |
91521-40612 |
US $1.46 |
||
| replacement | |||||
|
9152140612
|
9152140612
91511-A0612 New Genuine Part |
91511-A0612 |
US $0.96 |
||
|
9165660820
|
9165660820
91656-60820
New Genuine Part
|
91656-60820 |
— | ||
| replacement | |||||
|
9165660820
|
9165660820
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9166560820
|
9166560820
91665-60820
New Genuine Part
|
91665-60820 |
— | ||
| replacement | |||||
|
9166560820
|
9166560820
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
|
9322016016
|
9322016016
93220-16016 SCREW |
93220-16016 |
from US $0.90 |
||
|
9331116012
|
9331116012
93311-16012 Screw, Rear Axle Bearing Lock Nut |
93311-16012 |
from US $0.88 |
||
|
9331216014
|
9331216014
93312-16014 SCREW W/WASHER |
93312-16014 |
US $0.52 |
||
|
9331915014
|
9331915014
93319-15014 Screw, Cover Set, No.1 |
93319-15014 |
from US $0.96 |
||
|
9354014016
|
9354014016
93540-14016 SCREW |
93540-14016 |
US $1.60 |
||
|
9452400600
|
9452400600
94524-00600 New Genuine Part |
94524-00600 |
US $2.72 |
||
|
9538105025
|
9538105025
95381-05025 New Genuine Part |
95381-05025 |
US $1.75 |
||
