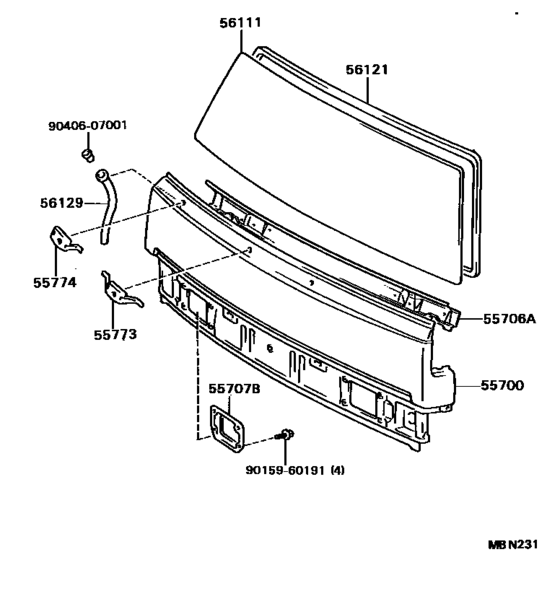

Front Panel & Windshield Glass ([08.1987 - ] (8708- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1987 - 1988
- Sales region
- Europe
- Frame
- BU75
- body
- TR
- ENGINE
- B
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- LHD
- Deck(Material)
- TB
- Incomplete Vehicles
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55700
|
55700
55701-95448 Panel Assy, FrontFRONT [08.1987 - 08.1988] BU75,85 |
55701-95448 |
US $739.65 |
||
|
55706A
|
55706A
55706-95408 Reinforcement Sub-Assy, Front Panel, UpperFRONT PANEL, UPPER [08.1987 - 08.1988] BU75,85 |
55706-95408 |
US $187.82 |
||
|
55707B
|
55707B
55723-95404 Shutter Sub-Assy, Front Air[08.1987 - 08.1988] BU75,85 |
55723-95404 |
US $24.90 |
||
|
55773
|
55773
55773-95407 Retainer, Wiper Shaft, Center[08.1987 - 08.1988] BU75,85 RH |
55773-95407 |
US $18.78 |
||
|
55773
|
55773
55773-95408 Retainer, Wiper Shaft, Center[08.1987 - 08.1988] BU75,85 LH |
55773-95408 |
US $18.78 |
||
|
55774
|
55774
55774-95407 Retainer, Wiper Shaft SideWIPER SHAFT SIDE [08.1987 - 08.1988] BU75,85 |
55774-95407 |
US $12.67 |
||
|
56111
|
56111
56111-95418
Glass, Windshield
[08.1987 - 08.1988] BU75,85 *ZT,T=5.0 |
56111-95418 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-37030 Glass, Windshield[08.1987 - 08.1988] BU75,85 *ZT,T=5.0 |
56111-37030 |
US $1,374.46 |
||
|
56111
|
56111
56111-95419 Glass, Windshield[08.1987 - 08.1988] BU75,85 *LAM,T=5.7 |
56111-95419 |
US $1,368.64 |
||
| replacement | |||||
|
56111
|
56111
56111-37030 Glass, Windshield[08.1987 - 08.1988] BU75,85 *LAM,T=5.7 |
56111-37030 |
US $1,374.46 |
||
|
56121
|
56121
56121-95411
Weatherstrip, Windshield
[08.1987 - 08.1988] BU75,85 |
56121-95411 |
— | ||
|
56129
|
56129
56129-95400 Hose, Windshield Drain[08.1987 - 08.1988] BU75,85 |
56129-95400 |
US $9.90 |
||
| replacement | |||||
|
56129
|
56129
56129-95J00 Hose, Windshield Drain[08.1987 - 08.1988] BU75,85 |
56129-95J00 |
US $10.46 |
||
|
9015960191
|
9015960191
90159-60191 New Genuine Part |
90159-60191 |
US $0.87 |
||
|
9040607001
|
9040607001
90406-07001 New Genuine Part |
90406-07001 |
US $3.32 |
||
