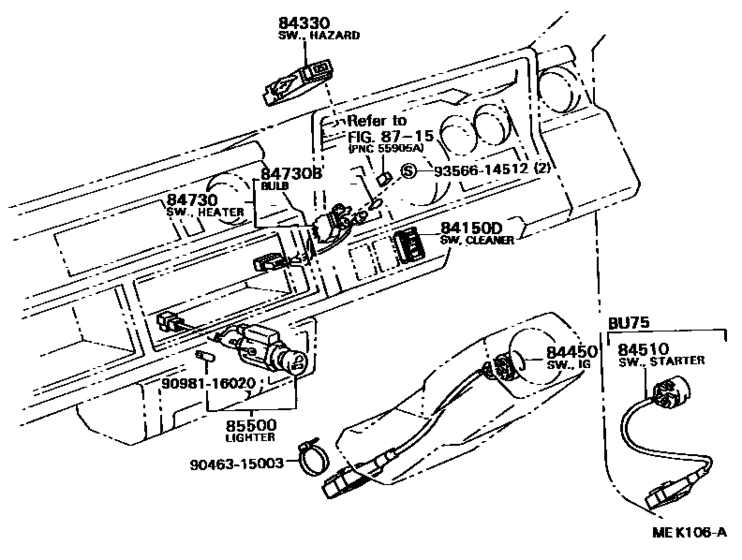

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1987 - 1988
- Sales region
- Europe
- Frame
- BU75
- body
- TR
- ENGINE
- B
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- LHD
- Deck(Material)
- TB
- Incomplete Vehicles
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84150D
|
84150D
84150-95400 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [08.1987 - 08.1988] BU75,85 |
84150-95400 |
US $63.04 |
||
|
84330
|
84330
84332-95400 Switch Assy, Hazard Warning Signal[08.1987 - 08.1988] BU75,85 |
84332-95400 |
US $45.72 |
||
|
84510
|
84510
84510-36110
Switch Assy, Starter
[08.1987 - 08.1988] BU75 |
84510-36110 |
— | ||
|
84730
|
84730
84732-95405 Switch Assy, Heater Blower[08.1987 - 08.1988] BU75,85 |
84732-95405 |
US $48.19 |
||
|
84730B
|
84730B
90981-16020 Bulb, Position Indicator Lamp[08.1987 - 08.1988] BU75,85 24V 1.8W |
90981-16020 |
US $5.44 |
||
|
85500
|
85500
85500-95402 Lighter Assy, Cigarette[08.1987 - 08.1988] BU75,85 |
85500-95402 |
US $66.54 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.56 |
||
|
9098116020
|
9098116020
90981-16020 Bulb, Position Indicator Lamp |
90981-16020 |
US $5.44 |
||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
