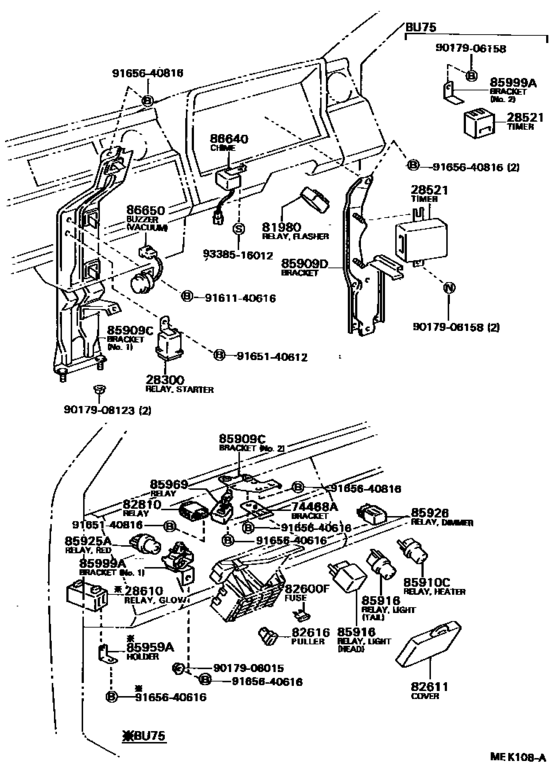

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1987 - 1988
- Sales region
- Europe
- Frame
- BU75
- body
- TR
- ENGINE
- B
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- LHD
- Deck(Material)
- TB
- Incomplete Vehicles
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-56010 Relay Assy, Starter[08.1987 - 08.1988] B,13B..BU75,85 |
28300-56010 |
US $106.56 |
||
|
28521
|
28521
28521-54031 Timer, PreheatingPREHEATING [08.1987 - 08.1988] B..BU75 DENSO |
28521-54031 |
US $182 |
||
| replacement | |||||
|
28521
|
28521
28521-56020 Timer, PreheatingPREHEATING [08.1987 - 08.1988] B..BU75 DENSO |
28521-56020 |
US $171.81 |
||
|
28521
|
28521
28521-57040 Timer, PreheatingPREHEATING [08.1987 - 08.1988] B..BU75 TEN |
28521-57040 |
US $173.26 |
||
| replacement | |||||
|
28521
|
28521
28521-56020 Timer, PreheatingPREHEATING [08.1987 - 08.1988] B..BU75 TEN |
28521-56020 |
US $171.81 |
||
|
28610
|
28610
28610-57040
Relay Assy, Glow Plug
[08.1987 - 08.1988] B..BU75 |
28610-57040 |
— | ||
|
74468A
|
74468A
74468-95700 Bracket, Relay Block[08.1987 - 08.1988] BU75,85 |
74468-95700 |
US $3.35 |
||
|
81980
|
81980
81980-36060 Flasher Assy, Turn Signal[08.1987 - 08.1988] BU75,85 |
81980-36060 |
US $116.92 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1987 - 08.1988] BU75,85 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1987 - 08.1988] BU75,85 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1987 - 08.1988] BU75 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1987 - 08.1988] BU75 7.5A |
90982-09005 |
from US $1.09 |
||
|
82611
|
82611
82611-95410 Cover, Fuse BlockFUSE BLOCK [08.1987 - 08.1988] BU75,85 |
82611-95410 |
US $24.17 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[08.1987 - 08.1988] BU75,85 |
82616-12010 |
from US $3.04 |
||
|
82810
|
82810
82810-95400
Relay, Running Light
[08.1987 - 08.1988] BU75,85 |
82810-95400 |
— | ||
|
85909C
|
85909C
85909-95403 Bracket Sub-Assy, Relay, No.1RELAY, NO.1 [08.1987 - 08.1988] BU75,85 NO.1 |
85909-95403 |
US $39.46 |
||
|
85909C
|
85909C
85909-95404 Bracket Sub-Assy, Relay BlockRELAY BLOCK [08.1987 - 08.1988] BU75,85 NO.2 |
85909-95404 |
US $7.43 |
||
|
85909D
|
85909D
85907-95401 Bracket Sub-Assy, Relay, No.2RELAY, NO.2 [08.1987 - 08.1988] BU75,85 |
85907-95401 |
US $29.85 |
||
|
85910C
|
85910C
90987-02005 Relay, Ignition, No.1[08.1987 - 08.1988] BU75,85 |
90987-02005 |
US $34.66 |
||
|
85916
|
85916
90987-01004 Relay, Heater Pump[08.1987 - 08.1988] BU75,85 TAIL LAMP |
90987-01004 |
US $32.38 |
||
|
85916
|
85916
90987-02007 Relay, Light Control[08.1987 - 08.1988] BU75,85 HEADLAMP |
90987-02007 |
from US $37.30 |
||
|
85925A
|
85925A
90987-03002 Relay, Turbo Indicator[08.1987 - 08.1988] BU75,85 |
90987-03002 |
US $20.67 |
||
|
85926
|
85926
85926-90K00 Relay, Headlamp Dimmer[08.1987 - 08.1988] BU75,85 |
85926-90K00 |
US $55.56 |
||
|
85959A
|
85959A
85959-36010 Holder, Relay[08.1987 - 08.1988] BU75 |
85959-36010 |
US $3.64 |
||
|
85969
|
85969
85969-95400
Relay, Light Reminder
[08.1987 - 08.1988] BU75,85 |
85969-95400 |
— | ||
|
85999A
|
85999A
85999-14150 Bracket, Relay, No.2[08.1987 - 08.1988] BU75,85 NO.1 |
85999-14150 |
US $8.30 |
||
|
85999A
|
85999A
85999-89101 Bracket Sub-Assy, Flasher[08.1987 - 08.1988] BU75 NO.2 |
85999-89101 |
US $2.77 |
||
|
86650
|
86650
86650-25040 Buzzer Assy, Vacuum Indicator[08.1987 - 08.1988] BU75,85 |
86650-25040 |
US $30.14 |
||
|
9017906015
|
9017906015
90179-06015 New Genuine Part |
90179-06015 |
US $4.66 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.84 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.96 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $1.02 |
||
