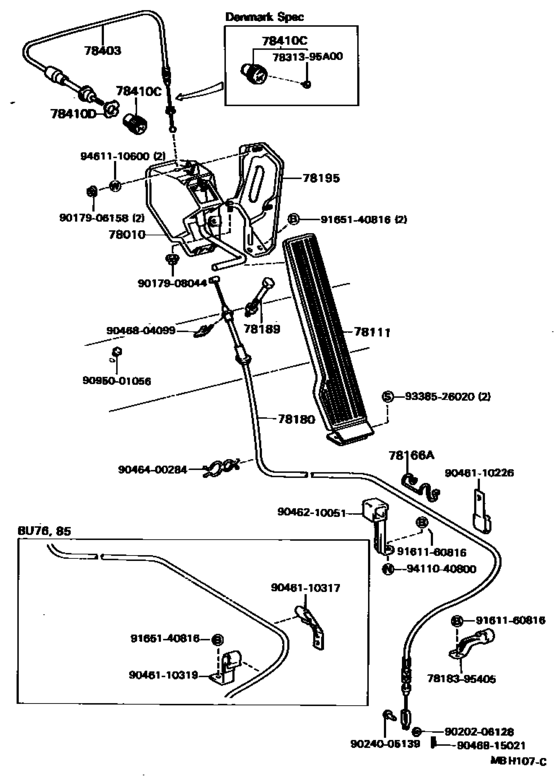

Accelerator Link ([09.1984 - ] (8409- )BU61,62,65,76,81,85..LHD) Diagram Toyota DYNA/ TOYOACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- BU85
- body
- TR
- ENGINE
- 13B
- DESTINATION
- GEN
- From
- 09.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- LHD
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78202-95401 Link, AcceleratorACCELERATOR PEDAL [09.1984 - 08.1987] BU60,61,62,65,7#,80,81,85..LHD |
78202-95401 |
US $113.57 |
||
|
78111
|
78111
78010-95400 Pedal, AcceleratorACCELERATOR [09.1984 - 08.1987] BU75,76,85..LHD |
78010-95400 |
US $28.54 |
||
|
78180
|
78180
78150-95469 Wire Assy, Accelerator FlexibleACCELERATOR FLEXIBLE [09.1984 - 08.1987] BU76,85..LHD |
78150-95469 |
US $107.74 |
||
|
78189
|
78189
78208-95403 Bolt, Accelerator Pedal StopperACCELERATOR PEDAL STOPPER [09.1984 - 08.1987] BU75,76,85..LHD |
78208-95403 |
US $4.22 |
||
| replacement | |||||
|
78189
|
78189
78208-95406 Bolt, Accelerator Pedal StopperACCELERATOR PEDAL STOPPER [09.1984 - 08.1987] BU75,76,85..LHD |
78208-95406 |
US $4.22 |
||
|
78195
|
78195
78195-95401 Bracket, Accelerator LinkACCELERATOR LINK [09.1984 - 08.1987] BU60,61,62,65,7#,80,81,85..LHD |
78195-95401 |
US $27.52 |
||
|
78403
|
78403
78404-95012 Cable Sub-Assy, Throttle ControlTHROTTLE CONTROL [08.1985 - 08.1987] BU60,61,62,65,7#,80,81,85..LHD |
78404-95012 |
US $34.94 |
||
|
78403
|
78403
78404-95401 Cable Sub-Assy, Throttle ControlTHROTTLE CONTROL [09.1984 - 08.1985] BU60,61,62,7#,80,81,85..LHD |
78404-95401 |
US $48.34 |
||
|
78410C
|
78410C
78411-22010 Knob, Throttle Cable[09.1984 - 08.1987] BU6#,7#,8# |
78411-22010 |
US $8.91 |
||
|
78410D
|
78410D
78314-95010 Nut, Choke[08.1985 - 08.1987] BU6#,7#,8# |
78314-95010 |
from US $1.88 |
||
|
78410D
|
78410D
78413-95J00 Nut, Choke[09.1984 - 08.1985] BU6#,7#,8# |
78413-95J00 |
US $3.35 |
||
|
7831395A00
|
7831395A00
78313-95A00 Screw |
78313-95A00 |
US $3.20 |
||
| replacement | |||||
|
7831395A00
|
7831395A00
78313-95702 Screw |
78313-95702 |
US $7.72 |
||
|
7818395405
|
7818395405
78183-95405
Clamp, Accelerator Control Cable
|
78183-95405 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9020206128
|
9020206128
90202-06128 New Genuine Part |
90202-06128 |
US $3.20 |
||
|
9024005139
|
9024005139
90240-05139 Pin, Throttle Cable |
90240-05139 |
US $2.48 |
||
|
9046110226
|
9046110226
90461-10226 New Genuine Part |
90461-10226 |
US $8.88 |
||
| replacement | |||||
|
9046110226
|
9046110226
90461-10331 New Genuine Part |
90461-10331 |
US $7.28 |
||
|
9046110317
|
9046110317
90461-10317 New Genuine Part |
90461-10317 |
US $7.13 |
||
|
9046110319
|
9046110319
90461-10319 New Genuine Part |
90461-10319 |
US $8.88 |
||
|
9046210051
|
9046210051
90462-10051 New Genuine Part |
90462-10051 |
US $7.72 |
||
|
9046400284
|
9046400284
90464-00284 New Genuine Part |
90464-00284 |
US $6.99 |
||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9046815021
|
9046815021
90468-15021 Clip(For Front Disc Brake Anti-Rattle) |
90468-15021 |
US $1.75 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9338526020
|
9338526020
93385-26020 New Genuine Part |
93385-26020 |
US $1.44 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.03 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
