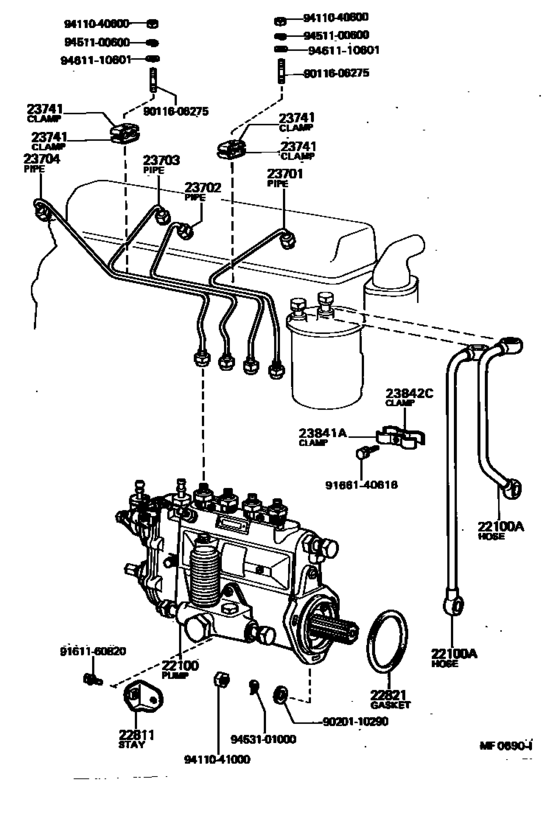

Injection Pump Assembly ([08.1977 - 08.1980] (7708-8008)2J) Diagram Toyota DYNA/ TOYOACE
- Year
- 1977 - 1979
- Sales region
- Japan
- Frame
- JU20
- body
- TR
- ENGINE
- 2J
- DECK
- TS
- Model
- DYNA/TOYOACE
- From
- 08.1977
- To
- 04.1979
- Gear Shift Type
- 5H
- Seating Capacity
- 03S
- Deck,cab
- T1
- Loading Capacity
- 20T
- Building Condition
- CBU
- Transmission Model
- M51
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-48031
Pump Assy, Injection Or Supply
[08.1977 - 08.1980] 2J..JU20 |
22100-48031 |
— | ||
|
22100
|
22100
22100-48120
Pump Assy, Injection Or Supply
[12.1978 - 08.1980] 2J..JU20 COLD SPEC |
22100-48120 |
— | ||
|
22100A
|
22100A
23801-48010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)FUEL(FOR INJECTION PUMP TO FUEL FILTER) [08.1977 - 08.1980] 2J..JU20 FEED PUMP |
23801-48010 |
US $26.79 |
||
|
22100A
|
22100A
23802-48010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)FUEL(FOR INJECTION PUMP TO FUEL FILTER) [08.1977 - 08.1980] 2J..JU20 INJECTION PUMP |
23802-48010 |
US $26.21 |
||
|
22811
|
22811
22811-48010
Stay, Injection Pump, No.1
[08.1977 - 02.1979] 2J..JU20 |
22811-48010 |
— | ||
|
22811
|
22811
22811-48020
Stay, Injection Pump, No.1
[02.1979 - 08.1980] 2J..JU20 |
22811-48020 |
— | ||
|
22821
|
22821
90301-77001
Gasket, Injection Pump
[11.1978 - 08.1980] H..HU30; 2J..JU20 |
90301-77001 |
— | ||
|
22821
|
22821
90301-78177
Gasket, Injection Pump
[08.1977 - 11.1978] H..HU30; 2J..JU20 |
90301-78177 |
— | ||
|
23701
|
23701
23701-48011 Pipe Sub-Assy, Injection, No.1INJECTION, NO.1 [08.1977 - 08.1980] 2J..JU20 |
23701-48011 |
US $29.85 |
||
|
23702
|
23702
23702-48011 Pipe Sub-Assy, Injection, No.2INJECTION, NO.2 [08.1977 - 08.1980] 2J..JU20 |
23702-48011 |
US $29.85 |
||
|
23703
|
23703
23703-48011 Pipe Sub-Assy, Injection, No.3INJECTION, NO.3 [08.1977 - 08.1980] 2J..JU20 |
23703-48011 |
US $29.85 |
||
|
23704
|
23704
23704-48011 Pipe Sub-Assy, Injection, No.4INJECTION, NO.4 [08.1977 - 08.1980] 2J..JU20 |
23704-48011 |
US $29.85 |
||
|
23741
|
23741
23741-56010 Clamp, Injection Pipe, No.1[08.1977 - 08.1980] H..HU30; 2J..JU20 |
23741-56010 |
from US $6.36 |
||
|
23841A
|
23841A
23841-56010
Clamp, Fuel Hose, No.1
[08.1977 - 08.1980] H..HU30; 2J..JU20 |
23841-56010 |
— | ||
|
23842C
|
23842C
23842-56010
Clamp, Fuel Hose, No.2
[08.1977 - 08.1980] H..HU30; 2J..JU20 |
23842-56010 |
— | ||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9020110290
|
9020110290
90201-10290 Washer, No.1 (For Propeller Shaft & Differential Setting)PLATE(FOR CYLINDER HEAD SET) |
90201-10290 |
US $2.91 |
||
| replacement | |||||
|
9020110290
|
9020110290
90201-11013 Washer, No.1 (For Propeller Shaft & Differential Setting) |
90201-11013 |
from US $0.72 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
|
9461110601
|
9461110601
94611-10601 WASHER |
94611-10601 |
US $0.52 |
||
