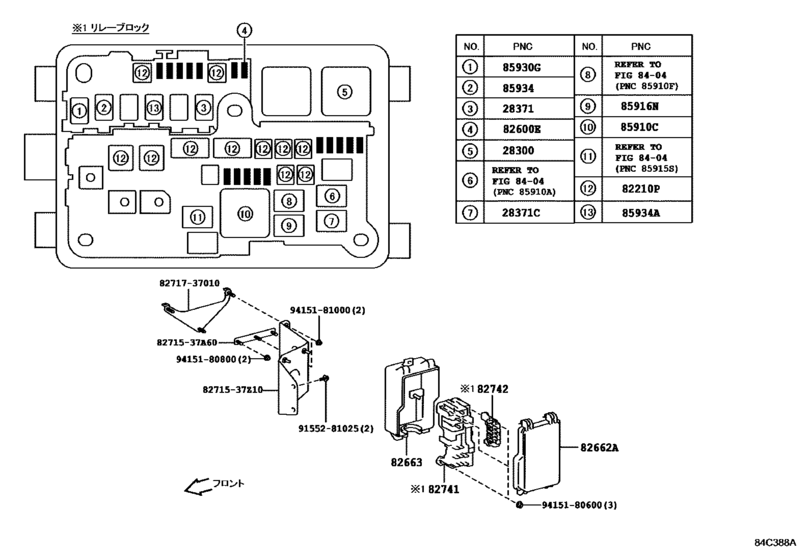

Switch & Relay & Computer ([07.2011 - 05.2016] ﾘﾚｰﾌﾞﾛｯｸ(12V) (1107-1605)TRC600..DCB) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2016
- Sales region
- Japan
- Frame
- TRC600
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- CAB
- DCB
- Model
- DYNA/TOYOACE
- From
- 07.2011
- To
- 05.2016
- Gear Shift Type
- 5F
- Deck,cab
- T4
- Loading Capacity
- 20T
- Fuel Induction
- EFI
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
90987-02025 Relay[07.2011 -] 1BZFPE,2TRFE..BZU600,TRC600,TRU600 |
90987-02025 |
from US $44.54 |
||
|
28371
|
28371
90987-02027 Relay[07.2011 -] 1BZFPE,2TRFE..BZU600,TRC600,TRU600 |
90987-02027 |
from US $44.54 |
||
|
28371C
|
28371C
90987-02027 Relay[07.2011 - 05.2016] 2TRFE..TRC600..T4;2TRFE..TRU600..T4..IV3 |
90987-02027 |
from US $44.54 |
||
|
82210P
|
82210P
82627-37030 Engine Room Fusible Link[07.2011 -] BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650 ,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI ２０Ａ，メス端子 |
82627-37030 |
US $6.40 |
||
|
82210P
|
82210P
90982-08223 Fusible Link[07.2011 - 05.2016] TRC600..DM5;TRC600..DCB;TRU600..CBU;TRU600..T3..IV3 ３０Ａ，オス端子 |
90982-08223 |
US $11.36 |
||
|
82210P
|
82210P
90982-08282 Fusible Link[07.2011 - 05.2016] TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F;XZU650..6FC..20T;XZU640..T3..6FC..IV3;X ZU650..T3..6FC..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(SCB,VAN)..(06S,T2,T3,T4 ,T5)..6FC..WT..(CBU,IV3) ５０Ａ，メス端子,マーク ３２Ｖ |
90982-08282 |
from US $7.04 |
||
|
82210P
|
82210P
90982-08286 Fusible Link[07.2011 -] XZU620..6FC;XZU645,655..30T;BZU600,TRC600,TRU600 １４０Ａ，オス端子 |
90982-08286 |
from US $7.68 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[07.2011 -] TRC600..DM5;TRC600..DCB;TRU600..CBU;TRU600..T3..IV3;BZU600,XZC60#,610,630,645,655, 675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,LPG ３０Ａ，メス端子 |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[07.2011 - 05.2016] TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F;XZU650..6FC..20T;XZU640..T3..6FC..IV3;X ZU650..T3..6FC..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(SCB,VAN)..(06S,T2,T3,T4 ,T5)..6FC..WT..(CBU,IV3) ５０Ａ，メス端子,マーク ５８Ｖ |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08302 Fusible Link[07.2011 -] BZU600,TRC600,TRU600 ５０Ａ−３０Ａ−５０Ａ，メス端子 |
90982-08302 |
from US $6.24 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[07.2011 -] BZU600,TRC600;TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650 ,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,EFI) １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[07.2011 -] BZU600,TRC600;TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650 ,655,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,EFI) １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[07.2011 -] TRC600..DM5;TRC600..DCB;TRU600..CBU;TRU600..T3..IV3;BZU600,XZC60#,610,630,645,655, 675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,LPG ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[07.2011 -] BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650 ,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.96 |
||
|
82662A
|
82662A
82662-37490 Cover, Relay Block, Upper, No.1[07.2011 - 10.2015] TRC600..DCB |
82662-37490 |
US $40.04 |
||
| replacement | |||||
|
82662A
|
82662A
82662-37491
Cover, Relay Block, Upper, No.1
[07.2011 - 10.2015] TRC600..DCB |
82662-37491 |
— | ||
|
82662A
|
82662A
82662-37491
Cover, Relay Block, Upper, No.1
[11.2015 - 05.2016] TRC600..DCB |
82662-37491 |
— | ||
|
82663
|
82663
82663-37150 Cover, Relay Block, Lower[07.2011 - 05.2017] TRC600,XZU60#,640,655,685,695..DCB |
82663-37150 |
US $48.78 |
||
|
82741
|
82741
82741-37050 Block, Engine Room Relay[07.2011 -] BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650 ,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
82741-37050 |
US $96.10 |
||
|
82742
|
82742
82742-37030 Block, Engine Room Relay, No.2[07.2011 -] BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650 ,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
82742-37030 |
US $42.95 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[07.2011 -] BZU600,TRC600,TRU600 |
90987-04010 |
from US $42.71 |
||
|
85916N
|
85916N
90987-02027 Relay[07.2011 -] BZU600,TRC600,TRU600 |
90987-02027 |
from US $44.54 |
||
|
85930G
|
85930G
90987-02027 Relay[07.2011 -] BZU600,TRC600,TRU600 |
90987-02027 |
from US $44.54 |
||
|
85934
|
85934
90987-02012 Relay, Ignition, No.1[07.2011 -] BZU600,TRC600,TRU600 |
90987-02012 |
from US $27.85 |
||
|
85934A
|
85934A
90987-02012 Relay, Ignition, No.1[07.2011 -] BZU600,TRC600,TRU600 |
90987-02012 |
from US $27.85 |
||
|
8271537A60
|
8271537A60
82715-37A60 Bracket,wiring Harness Clamp |
82715-37A60 |
US $5.68 |
||
|
8271537Z10
|
8271537Z10
82715-37Z10 Bracket,wiring Harness Clamp |
82715-37Z10 |
US $174.72 |
||
|
8271737010
|
8271737010
82717-37010 New Genuine Part |
82717-37010 |
US $22.42 |
||
|
9155281025
|
9155281025
91552-81025 BOLT TLANGE |
91552-81025 |
US $1.60 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.60 |
||
