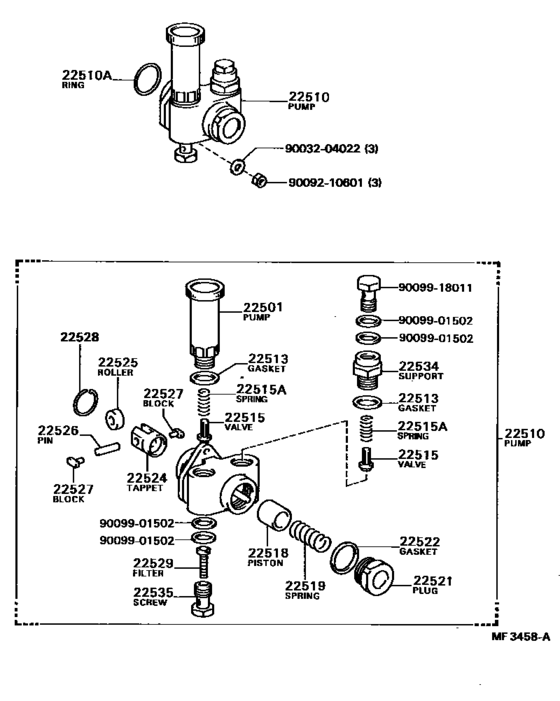

Fuel Feed Pump ([08.1987 - ] (8708- )1W) Diagram Toyota DYNA/ TOYOACE
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- WU75
- body
- DMP
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- DM1
- Loading Capacity
- 35T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22501
|
22501
22501-77021 Pump Sub-Assy, Priming[08.1987 - 08.1988] 1W..WU75,9# |
22501-77021 |
US $32.15 |
||
|
22510
|
22510
22510-78030 Pump Assy, Fuel Feed[08.1987 - 08.1988] 1W..WU75,9# |
22510-78030 |
US $152.88 |
||
|
22510A
|
22510A
90099-14050
Ring, O(For Fuel Feed Pump)
[08.1987 - 08.1988] 1W..WU75,9# |
90099-14050 |
— | ||
|
22513
|
22513
22513-77020 Gasket, Check Valve Chamber Plug[08.1987 - 08.1988] 1W..WU75,9# |
22513-77020 |
from US $3.30 |
||
|
22515
|
22515
22515-77021 Valve, Feed Pump Check[08.1987 - 08.1988] 1W..WU75,9# |
22515-77021 |
US $1.12 |
||
|
22515A
|
22515A
90501-05141 Spring, Feed Pump Check Valve[08.1987 - 08.1988] 1W..WU75,9# |
90501-05141 |
US $0.84 |
||
|
22518
|
22518
22518-56012
Piston, Feed Pump
[08.1987 - 08.1988] 1W..WU75,9# グリーン |
22518-56012 |
— | ||
| replacement | |||||
|
22518
|
22518
22518-77020 Piston, Feed Pump[08.1987 - 08.1988] 1W..WU75,9# グリーン |
22518-77020 |
US $22.89 |
||
|
22518
|
22518
22518-77020 Piston, Feed Pump[08.1987 - 08.1988] 1W..WU75,9# ブルー |
22518-77020 |
US $22.89 |
||
|
22519
|
22519
22519-78030
Spring, Feed Pump Piston
[08.1987 - 08.1988] 1W..WU75,9# |
22519-78030 |
— | ||
|
22521
|
22521
22521-77021
Plug, Feed Pump Piston Chamber
[08.1987 - 08.1988] 1W..WU75,9# |
22521-77021 |
— | ||
|
22522
|
22522
90099-01432
Gasket, Feed Pump Piston Plug
[08.1987 - 08.1988] 1W..WU75,9# |
90099-01432 |
— | ||
|
22524
|
22524
22524-77021 Tappet, Feed Pump[08.1987 - 08.1988] 1W..WU75,9# |
22524-77021 |
US $27.26 |
||
|
22525
|
22525
22525-77020 Roller, Feed Pump Tappet[08.1987 - 08.1988] 1W..WU75,9# |
22525-77020 |
US $5.59 |
||
|
22526
|
22526
22526-77020 Pin, Feed Pump Tappet Roller[08.1987 - 08.1988] 1W..WU75,9# |
22526-77020 |
US $3.49 |
||
|
22527
|
22527
22527-56010
Block, Feed Pump Tappet Sliding
[08.1987 - 08.1988] 1W..WU75,9# |
22527-56010 |
— | ||
|
22528
|
22528
90099-01501
Ring, Feed Pump Tappet Snap
[08.1987 - 08.1988] 1W..WU75,9# |
90099-01501 |
— | ||
|
22529
|
22529
22529-67010 Filter, Fuel Pump[08.1987 - 08.1988] 1W..WU75,9# |
22529-67010 |
US $2.62 |
||
|
22534
|
22534
22534-77121 Support, Valve[08.1987 - 08.1988] 1W..WU75,9# |
22534-77121 |
US $6.70 |
||
|
22535
|
22535
22535-46010
Screw, Fuel Pipe Follow
[08.1987 - 08.1988] 1W..WU75,9# |
22535-46010 |
— | ||
|
9003204022
|
9003204022
90032-04022
New Genuine Part
|
90032-04022 |
— | ||
|
9009210601
|
9009210601
90092-10601
Nut, Rock
|
90092-10601 |
— | ||
| replacement | |||||
|
9009210601
|
9009210601
90092-10101
Nut (For Front Wiper Arm Setting)
|
90092-10101 |
— | ||
|
9009901502
|
9009901502
90099-01502 Washer(For Inlet Follow Screw) |
90099-01502 |
US $1.60 |
||
|
9009918011
|
9009918011
90099-18011
Screw, Fuel Pipe Follow
|
90099-18011 |
— | ||
