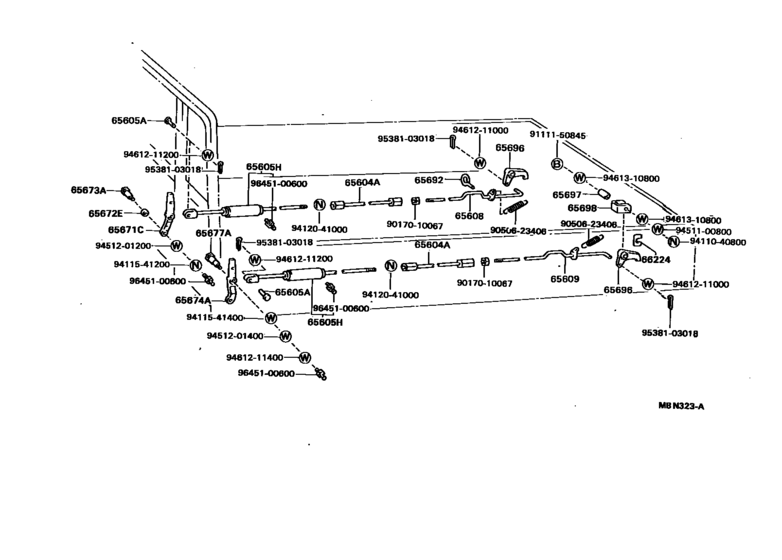

Rear Body Side Gate Lock & Tail Gate Lock ([08.1987 - ] (8708- )WU75) Diagram Toyota DYNA/ TOYOACE
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- WU75
- body
- DMP
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- DM1
- Loading Capacity
- 35T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65604A
|
65604A
65604-96304 Link Sub-Assy, Tail Gate Lock Connecting[08.1987 - 08.1988] WU75..CBU |
65604-96304 |
US $225.68 |
||
|
65605A
|
65605A
90240-12045 Pin, W/hole(For Intermediate Lever)[08.1987 - 08.1988] WU75..CBU |
90240-12045 |
US $2.48 |
||
|
65605H
|
65605H
65605-96310 Link Sub-Assy, Tail Gate Lock[08.1987 - 08.1988] WU75..CBU |
65605-96310 |
US $253.34 |
||
|
65608
|
65608
65608-96304 Link Sub-Assy, Tail Gate Lock, Rear Rh[08.1987 - 08.1988] WU75..CBU |
65608-96304 |
US $70.76 |
||
|
65609
|
65609
65609-96304 Link Sub-Assy, Tail Gate Lock, Rear Lh[08.1987 - 08.1988] WU75..CBU |
65609-96304 |
US $70.76 |
||
|
65671C
|
65671C
65671-96304 Arm, Roller, Rh[08.1987 - 08.1988] WU75..CBU |
65671-96304 |
US $55.47 |
||
|
65672E
|
65672E
65603-96304 Roller, Tail Gate Lock[08.1987 - 08.1988] WU75..CBU |
65603-96304 |
US $97.55 |
||
|
65673A
|
65673A
65673-96305 Shaft, Roller[08.1987 - 08.1988] WU75..CBU |
65673-96305 |
US $20.68 |
||
|
65674A
|
65674A
65674-96304 Arm, Tail Gate Lock Roller[08.1987 - 08.1988] WU75..CBU |
65674-96304 |
US $55.47 |
||
|
65677A
|
65677A
65677-96303 Shaft, Roller Arm[08.1987 - 08.1988] WU75..CBU |
65677-96303 |
US $19.66 |
||
|
65692
|
65692
65692-96301
Guide, Link
[08.1987 - 08.1988] WU75..CBU |
65692-96301 |
— | ||
| replacement | |||||
|
65692
|
65692
65616-93300
Guide, Rod Support
[08.1987 - 08.1988] WU75..CBU |
65616-93300 |
— | ||
|
65696
|
65696
65696-96301 Latch, Tail Gate Lock[08.1987 - 08.1988] WU75..CBU |
65696-96301 |
US $15.58 |
||
|
65697
|
65697
65697-96303 Pin, Latch[08.1987 - 08.1988] WU75..CBU |
65697-96303 |
US $9.17 |
||
|
65698
|
65698
65698-96304 Bracket, Tail Gate Latch[08.1987 - 08.1988] WU75..CBU |
65698-96304 |
US $7.28 |
||
|
66224
|
66224
66224-96303 Support, Tail Gate Hinge Pin[08.1987 - 08.1988] WU75..CBU |
66224-96303 |
US $12.67 |
||
|
9017010067
|
9017010067
90170-10067 Nut, Hexagon(For Gear Shift Rod) |
90170-10067 |
US $2.56 |
||
|
9050623406
|
9050623406
90506-23406 Spring, Back(For Tail Gate Lock Latch) |
90506-23406 |
US $7.43 |
||
|
9111150845
|
9111150845
91111-50845 BOLT |
91111-50845 |
US $3.06 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $2.62 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.60 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $2.72 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.74 |
||
|
9461211400
|
9461211400
94612-11400 WASHERPLATE |
94612-11400 |
US $2.56 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9538103018
|
9538103018
95381-03018 New Genuine Part |
95381-03018 |
US $1.75 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
from US $1.44 |
||
