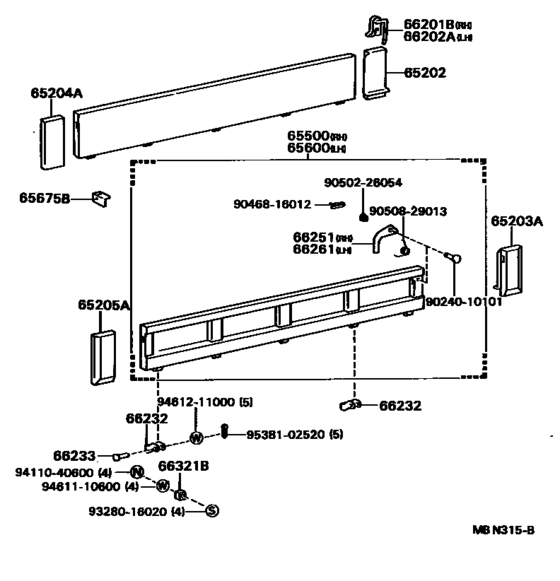

Rear Body Side Panel ([08.1987 - ] (8708- )WU75) Diagram Toyota DYNA/ TOYOACE
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- WU75
- body
- DMP
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- DM1
- Loading Capacity
- 35T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65202
|
65202
65202-96309 Post Sub-Assy, Side Gate, Rear Rh[08.1987 - 08.1988] WU75..CBU |
65202-96309 |
US $285.38 |
||
|
65203A
|
65203A
65203-96309 Post Sub-Assy, Side Gate, Rear Lh[08.1987 - 08.1988] WU75..CBU |
65203-96309 |
US $285.38 |
||
|
65204A
|
65204A
65204-96304 Post Sub-Assy, Side Gate, Rh[08.1987 - 08.1988] WU75..CBU |
65204-96304 |
US $248.98 |
||
|
65205A
|
65205A
65205-96304 Post Sub-Assy, Side Gate, Lh[08.1987 - 08.1988] WU75..CBU |
65205-96304 |
US $248.98 |
||
|
65500
|
65500
65501-96311 Panel Assy, Rear Body Side, Rh[08.1987 - 08.1988] WU75..CBU |
65501-96311 |
US $2,082.08 |
||
|
65600
|
65600
65501-96311 Panel Assy, Rear Body Side, Rh[08.1987 - 08.1988] WU75..CBU |
65501-96311 |
US $2,082.08 |
||
|
65675B
|
65675B
65675-96303 Bracket Sub-Assy, Roller Arm, Rh[08.1987 - 08.1988] WU75..CBU |
65675-96303 |
US $20.68 |
||
|
66201B
|
66201B
66201-96304 Latch, Tail Gate Female, Rh[08.1987 - 08.1988] WU75..CBU |
66201-96304 |
US $199.47 |
||
|
66202A
|
66202A
66202-96303 Latch, Tail Gate Female, Lh[08.1987 - 08.1988] WU75..CBU |
66202-96303 |
US $199.47 |
||
|
66232
|
66232
66232-96304 Hinge, Side Gate, Female[08.1987 - 08.1988] WU75..CBU |
66232-96304 |
US $90.27 |
||
|
66233
|
66233
66233-96304 Pin, Gate Hinge[08.1987 - 08.1988] WU75..CBU |
66233-96304 |
US $9.61 |
||
| replacement | |||||
|
66233
|
66233
90240-10024 Pin, Side Gate Hinge[08.1987 - 08.1988] WU75..CBU |
90240-10024 |
US $4.08 |
||
|
66251
|
66251
66251-96304 Lever, Side Gate Stopper, Rh[08.1987 - 08.1988] WU75..CBU FRONT |
66251-96304 |
US $54.60 |
||
|
66251
|
66251
66261-96304 Lever, Side Gate Stopper, Rh[08.1987 - 08.1988] WU75..CBU REAR |
66261-96304 |
US $54.60 |
||
|
66261
|
66261
66251-96304 Lever, Side Gate Stopper, Rh[08.1987 - 08.1988] WU75..CBU REAR |
66251-96304 |
US $54.60 |
||
|
66261
|
66261
66261-96304 Lever, Side Gate Stopper, Rh[08.1987 - 08.1988] WU75..CBU FRONT |
66261-96304 |
US $54.60 |
||
|
66321B
|
66321B
66321-95013 Bumper, Gate Rubber[08.1987 - 08.1988] WU75..CBU |
66321-95013 |
US $10.92 |
||
|
9024010101
|
9024010101
90240-10101 Pin, Side Gate Stopper |
90240-10101 |
US $2.18 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
US $4.48 |
||
|
9050226054
|
9050226054
90502-26054 Spring, Side Gate Stopper |
90502-26054 |
US $2.77 |
||
|
9050829013
|
9050829013
90508-29013 Spring, Side Gate Lock, Rh |
90508-29013 |
US $13.40 |
||
|
9328016020
|
9328016020
93280-16020 New Genuine Part |
93280-16020 |
US $2.18 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $2.72 |
||
|
9538102520
|
9538102520
95381-02520 PINCOTTER |
95381-02520 |
US $2.08 |
||
