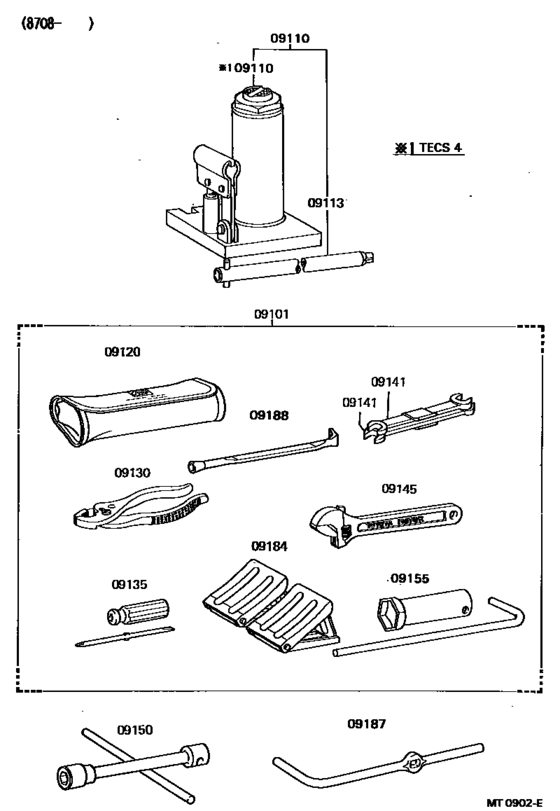

Standard Tool ([08.1987 - ] (8708- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- WU75
- body
- DMP
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- DM1
- Loading Capacity
- 35T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09101
|
09101
09102-36320
Tool Set, Standard W/o Jack
[08.1987 - 08.1988] WU75,9# |
09102-36320 |
— | ||
|
09110
|
09110
09110-36131 Jack Assy[08.1987 - 08.1988] WU75,9# |
09110-36131 |
US $158.70 |
||
| replacements | |||||
|
09110
|
09110
09113-36140 Handle, Jack[08.1987 - 08.1988] WU75,9# |
09113-36140 |
US $19.96 |
||
|
09110
|
09110
09111-36131
New Genuine Part
[08.1987 - 08.1988] WU75,9# |
09111-36131 |
— | ||
|
09113
|
09113
09113-36130 Handle, Jack[08.1987 - 08.1988] WU75,9# |
09113-36130 |
US $16.02 |
||
| replacement | |||||
|
09113
|
09113
09113-36140 Handle, Jack[08.1987 - 08.1988] WU75,9# |
09113-36140 |
US $19.96 |
||
|
09120
|
09120
09120-36070 Bag, Tool[08.1987 - 08.1988] WU75,9# |
09120-36070 |
US $13.10 |
||
|
09130
|
09130
99913-11500 Pliers (China)No Toyota stamp [08.1987 - 08.1988] WU75,9#,YU6#,70 |
99913-11500 |
US $6.40 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [08.1987 - 08.1988] WU75,9#,YU6#,70 |
99915-10700 |
from US $7.36 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [08.1987 - 08.1988] WU75,9#,YU6#,70 |
90089-99009 |
US $7.69 |
||
|
09141
|
09141
99914-11012 Spanner (No Toyota)(China) [08.1987 - 08.1988] WU75,9#,YU6#,70 １０ Ｘ １２ |
99914-11012 |
US $4.72 |
||
|
09141
|
09141
99914-11417 Spanner (No Toyota)(Made in China) [08.1987 - 08.1988] WU75,9#,YU6#,70 １４ Ｘ １７ |
99914-11417 |
US $6.12 |
||
|
09145
|
09145
99911-11200 Monkey Wrench (China) No Toyota Stamp[08.1987 - 08.1988] WU75,9#,YU6#,70 |
99911-11200 |
US $31.92 |
||
|
09150
|
09150
09150-55010 Wrench, Hub Nut Box[08.1987 - 08.1988] WU75,9# |
09150-55010 |
US $68.43 |
||
|
09184
|
09184
09184-00031
Stopper, Wheel
[08.1987 - 08.1988] WU75,9#,YU6#,70 |
09184-00031 |
— | ||
| replacement | |||||
|
09184
|
09184
09184-60010 Stopper, Wheel[08.1987 - 08.1988] WU75,9#,YU6#,70 |
09184-60010 |
US $15.68 |
||
|
09187
|
09187
09187-36070 Handle, Spare Wheel Carrier[08.1987 - 08.1988] WU75,9#,YU60,70 |
09187-36070 |
from US $8 |
||
