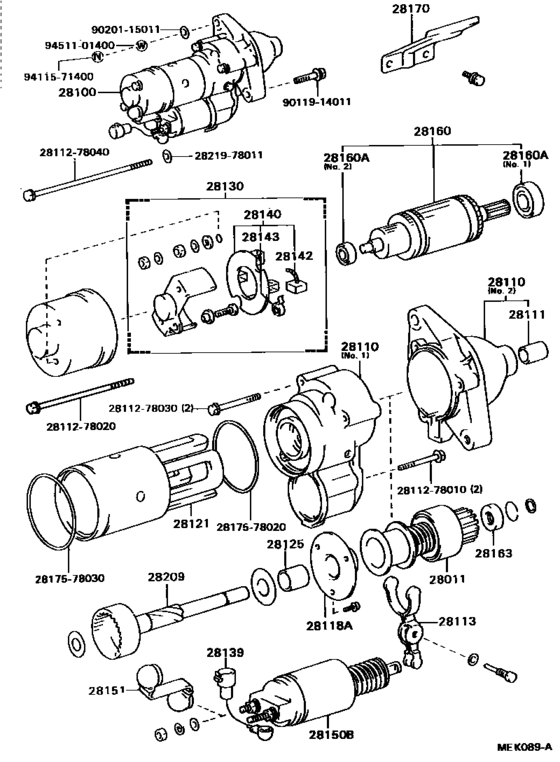

Starter ([08.1987 - ] 24V 4.5KW (8708- )1W) Diagram Toyota DYNA/ TOYOACE
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- WU75
- body
- DMP
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 08.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- DM1
- Loading Capacity
- 35T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-78012 Clutch Sub-Assy, Starter[08.1987 - 08.1988] 1W..WU75,9# |
28011-78012 |
US $499.41 |
||
|
28100
|
28100
28100-78011 Starter Assy[08.1987 - 08.1988] 1W..WU75,9# ２４Ｖ ４．５ＫＷ |
28100-78011 |
US $2,242.24 |
||
|
28110
|
28110
28115-78021 Housing Assy, Starter Drive[08.1987 - 08.1988] 1W..WU75,9# ＮＯ．１ |
28115-78021 |
US $173.26 |
||
|
28110
|
28110
28115-78030 Housing Assy, Starter Drive[08.1987 - 08.1988] 1W..WU75,9# ＮＯ．２ |
28115-78030 |
US $133.95 |
||
|
28111
|
28111
28111-78011 Bush(For Starter Housing)[08.1987 - 08.1988] 1W..WU75,9# |
28111-78011 |
US $31.74 |
||
|
28113
|
28113
28113-78011 Lever, Starter Pinion Drive[08.1987 - 08.1988] 1W..WU75,9# |
28113-78011 |
US $41.64 |
||
|
28118A
|
28118A
28118-78011
Plate(For Starter Yoke)
[08.1987 - 08.1988] 1W..WU75,9# |
28118-78011 |
— | ||
|
28121
|
28121
28121-78010 Coil, Starter Field[08.1987 - 08.1988] 1W..WU75,9# |
28121-78010 |
US $88.82 |
||
|
28125
|
28125
28125-78011 Bush, Starter Center Bearing[08.1987 - 08.1988] 1W..WU75,9# |
28125-78011 |
US $36.84 |
||
|
28130
|
28130
28130-78020 Frame Assy, Starter Commutator End[08.1987 - 08.1988] 1W..WU75,9# |
28130-78020 |
US $74.26 |
||
|
28139
|
28139
28139-78010 Wire, Lead, No.1(For Starter)[08.1987 - 08.1988] 1W..WU75,9# |
28139-78010 |
US $7.43 |
||
|
28140
|
28140
28140-78010 Holder Assy, Starter Brush[08.1987 - 08.1988] 1W..WU75,9# |
28140-78010 |
US $54.75 |
||
|
28142
|
28142
28142-78010 Brush, Starter[08.1987 - 08.1988] 1W..WU75,9# |
28142-78010 |
US $15.43 |
||
|
28143
|
28143
28143-78010
Spring, Starter Brush
[08.1987 - 08.1988] 1W..WU75,9# |
28143-78010 |
— | ||
|
28150B
|
28150B
28150-78021 Switch Assy, Magnet Starter[08.1987 - 08.1988] 1W..WU75,9# |
28150-78021 |
US $436.80 |
||
|
28151
|
28151
28151-78010 Plate, Lead, Switch Connecting[08.1987 - 08.1988] 1W..WU75,9# |
28151-78010 |
US $13.40 |
||
|
28160
|
28160
28160-78010 Armature Assy, Starter[08.1987 - 08.1988] 1W..WU75,9# |
28160-78010 |
US $511.06 |
||
|
28160A
|
28160A
28126-78010 Bearing, Starter Armature[08.1987 - 08.1988] 1W..WU75,9# ＮＯ．１ |
28126-78010 |
US $13.54 |
||
|
28160A
|
28160A
28253-78010 Bearing, Starter Armature[08.1987 - 08.1988] 1W..WU75,9# ＮＯ．２ |
28253-78010 |
US $11.50 |
||
|
28163
|
28163
28163-78010 Nut Or Collar, Pinion Stop, Starter[08.1987 - 08.1988] 1W..WU75,9# |
28163-78010 |
US $17.76 |
||
|
28170
|
28170
28170-78010 Cover Assy, Starter[08.1987 - 08.1988] 1W..WU75,9# |
28170-78010 |
US $5.82 |
||
| replacement | |||||
|
28170
|
28170
S1254-11082
Cover Assy, Starter
[08.1987 - 08.1988] 1W..WU75,9# |
S1254-11082 |
— | ||
|
28209
|
28209
28209-78011 Shaft Sub-Assy, Starter[08.1987 - 08.1988] 1W..WU75,9# |
28209-78011 |
US $238.78 |
||
|
2811278010
|
2811278010
28112-78010
Bolt, Housing Set
|
28112-78010 |
— | ||
|
2811278020
|
2811278020
28112-78020
Bolt, Housing Set
|
28112-78020 |
— | ||
|
2811278030
|
2811278030
28112-78030
Bolt, Housing Set
|
28112-78030 |
— | ||
|
2811278040
|
2811278040
28112-78040
Bolt, Housing Set
|
28112-78040 |
— | ||
|
2817578020
|
2817578020
28175-78020
Packing, Starter Bearing Cover
|
28175-78020 |
— | ||
|
2817578030
|
2817578030
28175-78030
Packing, Starter Bearing Cover
|
28175-78030 |
— | ||
|
2821978011
|
2821978011
28219-78011
Washer, Starter Clutch Spring, A
|
28219-78011 |
— | ||
|
9011914011
|
9011914011
90119-14011 New Genuine Part |
90119-14011 |
US $2.91 |
||
|
9020115011
|
9020115011
90201-15011 New Genuine Part |
90201-15011 |
US $0.73 |
||
|
9411571400
|
9411571400
94115-71400
Nut, Timer Round
|
94115-71400 |
— | ||
| replacement | |||||
|
9411571400
|
9411571400
94130-01402 Nut, Timer Round |
94130-01402 |
US $2.24 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
