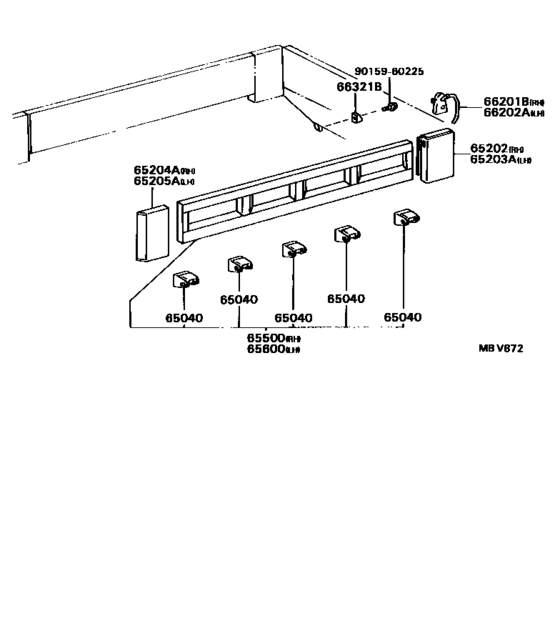

Rear Body Side Panel ([09.1991 - ] (9109- )WU75) Diagram Toyota DYNA/ TOYOACE
- Year
- 1988 - 1995
- Sales region
- Japan
- Frame
- WU75
- body
- DMP
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 08.1988
- To
- 05.1995
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- DM1
- Loading Capacity
- 35T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65040
|
65040
65040-93200 Hinge Assy, Side Gate 1[09.1991 - 05.1995] WU75..CBU ＲＨ−２ＮＤ |
65040-93200 |
US $39.89 |
||
|
65040
|
65040
65050-93200 Hinge Assy, Side Gate 1[09.1991 - 05.1995] WU75..CBU ＬＨ−２ＮＤ |
65050-93200 |
US $39.89 |
||
|
65202
|
65202
65202-93200 Post Sub-Assy, Side Gate, Rear Rh[09.1991 - 05.1995] WU75..CBU |
65202-93200 |
US $264.99 |
||
|
65202
|
65202
65202-96309 Post Sub-Assy, Side Gate, Rear Rh[08.1988 - 09.1991] WU75..CBU |
65202-96309 |
US $285.38 |
||
|
65203A
|
65203A
65203-93200 Post Sub-Assy, Side Gate, Rear Lh[09.1991 - 05.1995] WU75..CBU |
65203-93200 |
US $264.99 |
||
|
65203A
|
65203A
65203-96309 Post Sub-Assy, Side Gate, Rear Lh[08.1988 - 09.1991] WU75..CBU |
65203-96309 |
US $285.38 |
||
|
65204A
|
65204A
65204-96304 Post Sub-Assy, Side Gate, Rh[08.1988 - 09.1991] WU75..CBU |
65204-96304 |
US $248.98 |
||
|
65204A
|
65204A
65233-93200 Post Sub-Assy, Side Gate, Rh[09.1991 - 05.1995] WU75..CBU |
65233-93200 |
US $196.56 |
||
|
65205A
|
65205A
65205-96304 Post Sub-Assy, Side Gate, Lh[08.1988 - 09.1991] WU75..CBU |
65205-96304 |
US $248.98 |
||
|
65205A
|
65205A
65234-93202 Post Sub-Assy, Side Gate, Lh[09.1991 - 05.1995] WU75..CBU |
65234-93202 |
US $196.56 |
||
|
65500
|
65500
65500-93200 Panel Assy, Rear Body Side, Rh[09.1991 - 05.1995] WU75..CBU |
65500-93200 |
US $3,159.52 |
||
|
65500
|
65500
65501-96311 Panel Assy, Rear Body Side, Rh[08.1988 - 09.1991] WU75..CBU |
65501-96311 |
US $2,082.08 |
||
|
65600
|
65600
65501-96311 Panel Assy, Rear Body Side, Rh[08.1988 - 09.1991] WU75..CBU |
65501-96311 |
US $2,082.08 |
||
|
65600
|
65600
65600-93200 Panel Assy, Rear Body Side, Lh[09.1991 - 05.1995] WU75..CBU |
65600-93200 |
US $3,159.52 |
||
|
66201B
|
66201B
66201-93202 Latch Sub-Assy, Tail Gate, Rh[06.1990 - 05.1995] WU75..CBU |
66201-93202 |
US $183.46 |
||
|
66201B
|
66201B
66201-96304 Latch, Tail Gate Female, Rh[08.1988 - 06.1990] WU75..CBU |
66201-96304 |
US $199.47 |
||
|
66202A
|
66202A
66202-93200
Latch Sub-Assy, Tail Gate, Lh
[06.1990 - 07.1990] WU75..CBU |
66202-93200 |
— | ||
|
66202A
|
66202A
66202-93202 Latch Sub-Assy, Tail Gate, Lh[07.1990 - 05.1995] WU75..CBU |
66202-93202 |
US $183.46 |
||
|
66202A
|
66202A
66202-96303 Latch, Tail Gate Female, Lh[08.1988 - 06.1990] WU75..CBU |
66202-96303 |
US $199.47 |
||
|
66321B
|
66321B
66321-93103 Bumper, Gate Rubber[09.1991 - 05.1995] WU75,YU61..CBU |
66321-93103 |
US $8.56 |
||
|
9015960225
|
9015960225
90159-60225 New Genuine Part |
90159-60225 |
US $0.61 |
