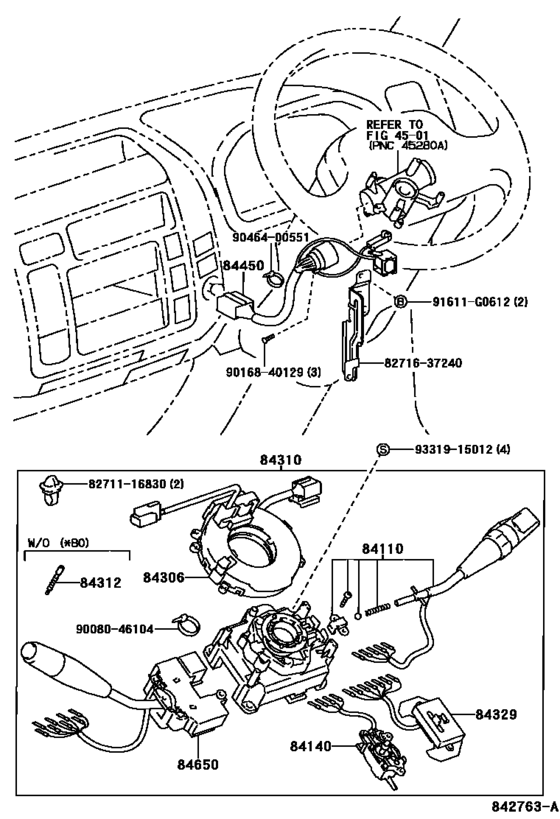

Switch & Relay & Computer ([10.2000 - ] IGNITION SW. & COMBINATION SW. (0010- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2000 - 2002
- Sales region
- General
- Frame
- XZU420
- ENGINE
- J05C
- TRANSMISSION
- MTM
- From
- 10.2000
- To
- 06.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80221 Switch Assy, Light Control, No.1[10.2000 - 06.2002] XZU402,41#,420,430 |
84112-80221 |
US $88.80 |
||
|
84110
|
84110
84112-80222 Switch Assy, Light Control, No.1[10.2000 - 06.2002] XZU402,41#,420,430 W/O(FOG LAMP) |
84112-80222 |
US $78.44 |
||
|
84140
|
84140
84140-37050 Switch Assy, Headlamp Dimmer[10.2000 - 06.2002] XZU402,41#,420,430 |
84140-37050 |
US $57.66 |
||
|
84306
|
84306
84306-37020 Cable Sub-Assy, Spiral[10.2000 - 06.2002] XZU402,41#,420,430 |
84306-37020 |
US $289.80 |
||
|
84310
|
84310
84310-37160
Switch Assy, Turn Signal
[10.2000 - 06.2002] XZU402,41#,420,430 W(*80) |
84310-37160 |
— | ||
| replacement | |||||
|
84310
|
84310
84310-37201 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 W(*80) |
84310-37201 |
US $372.90 |
||
|
84310
|
84310
84310-37170 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 |
84310-37170 |
US $263.54 |
||
| replacement | |||||
|
84310
|
84310
84310-37171 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 |
84310-37171 |
US $248.88 |
||
|
84310
|
84310
84310-37180 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 W/O(FOG LAMP) & W(*80) |
84310-37180 |
US $362.54 |
||
| replacement | |||||
|
84310
|
84310
84310-37181 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 W/O(FOG LAMP) & W(*80) |
84310-37181 |
US $378 |
||
|
84310
|
84310
84310-37190 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 W/O(FOG LAMP) |
84310-37190 |
US $254.80 |
||
| replacement | |||||
|
84310
|
84310
84310-37191 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 W/O(FOG LAMP) |
84310-37191 |
US $176.18 |
||
|
84310
|
84310
84310-37200 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 W(VARIABLE INTERMITTENT WIPER & *80) |
84310-37200 |
US $394.58 |
||
| replacement | |||||
|
84310
|
84310
84310-37201 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 W(VARIABLE INTERMITTENT WIPER & *80) |
84310-37201 |
US $372.90 |
||
|
84310
|
84310
84310-37210 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 W(VARIABLE INTERMITTENT WIPER) |
84310-37210 |
US $285.38 |
||
| replacement | |||||
|
84310
|
84310
84310-37211 Switch Assy, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 W(VARIABLE INTERMITTENT WIPER) |
84310-37211 |
US $283.92 |
||
|
84312
|
84312
84312-20011 Plate, Horn Contact[10.2000 - 06.2002] XZU402,41#,420,430 |
84312-20011 |
from US $5.09 |
||
|
84329
|
84329
84329-37060 Switch, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 W(*80) |
84329-37060 |
US $24.29 |
||
|
84329
|
84329
84329-37070 Switch, Turn Signal[10.2000 - 06.2002] XZU402,41#,420,430 |
84329-37070 |
US $16.02 |
||
|
84450
|
84450
84450-37160
Switch Assy, Ignition Or Starter
[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
84450-37160 |
— | ||
| replacement | |||||
|
84450
|
84450
84450-37161 Switch Assy, Ignition Or Starter[10.2000 - 06.2002] XZU402,41#,420,430..MTM |
84450-37161 |
US $72.05 |
||
|
84650
|
84650
84652-37010 Switch Assy, Windshield Wiper[10.2000 - 06.2002] XZU402,41#,420,430 |
84652-37010 |
US $109.20 |
||
| replacement | |||||
|
84650
|
84650
84652-37011 Switch Assy, Windshield Wiper[10.2000 - 06.2002] XZU402,41#,420,430 |
84652-37011 |
US $119.88 |
||
|
84650
|
84650
84652-37160 Switch Assy, Windshield Wiper[10.2000 - 06.2002] XZU402,41#,420,430 W(VARIABLE INTERMITTENT WIPER) |
84652-37160 |
US $132.50 |
||
| replacement | |||||
|
84650
|
84650
84652-37161 Switch Assy, Windshield Wiper[10.2000 - 06.2002] XZU402,41#,420,430 W(VARIABLE INTERMITTENT WIPER) |
84652-37161 |
US $133.95 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
8271116830
|
8271116830
82711-16830 Clamp, Headlamp Cleaner, No.1 |
82711-16830 |
US $1.60 |
||
|
8271637240
|
8271637240
82716-37240 Bracket, Wiring Harness Clamp, Lh |
82716-37240 |
US $11.79 |
||
| replacement | |||||
|
8271637240
|
8271637240
82716-37241 Bracket, Wiring Harness Clamp, Lh |
82716-37241 |
US $9.17 |
||
|
9008046104
|
9008046104
90080-46104 New Genuine Part |
90080-46104 |
US $1.46 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
