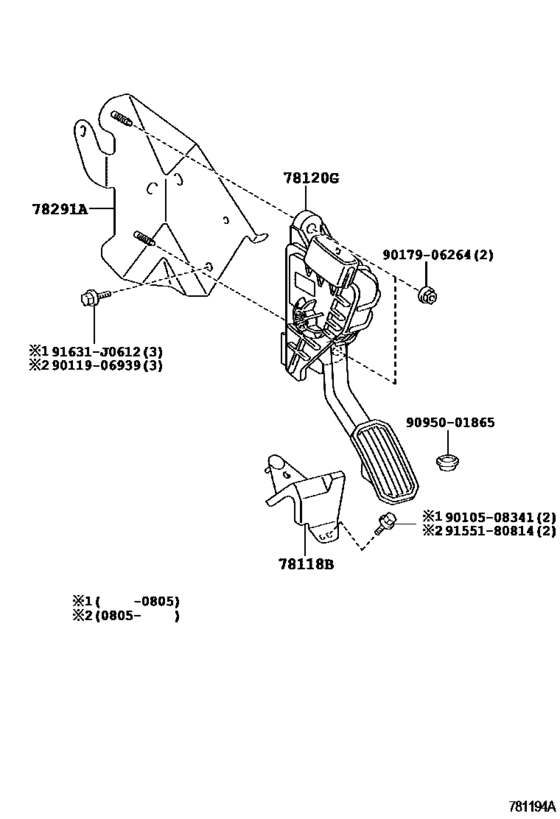

Accelerator Link ([01.2008 - ] (0801- )XZU423,433..SA) Diagram Toyota DYNA/ TOYOACE
- Year
- 2008 - 2008
- Sales region
- Europe
- Frame
- XZU433
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DESTINATION
- SA
- From
- 02.2008
- To
- 12.2008
- Gear Shift Type
- 6F
- Loading Capacity
- 85T
- Driver's Position
- RHD
- Fuel Induction
- DCRTK
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78118B
|
78118B
78118-37020 Stopper, Accelerator Pedal[02.2008 - 12.2008] XZU423,433..SA |
78118-37020 |
US $12.52 |
||
|
78120G
|
78120G
78120-35460
Rod Assy, Accelerator Pedal
[02.2008 - 12.2008] XZU423,433..SA |
78120-35460 |
— | ||
| replacement | |||||
|
78120G
|
78120G
78120-35461 Rod Assy, Accelerator Pedal[02.2008 - 12.2008] XZU423,433..SA |
78120-35461 |
from US $129.25 |
||
|
78291A
|
78291A
78291-37070 Bracket, Accelerator Link[02.2008 - 12.2008] XZU423,433..SA |
78291-37070 |
US $15.58 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.82 |
||
|
9010508341
|
9010508341
90105-08341 BOLT WASHER BASED |
90105-08341 |
US $2.08 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
US $0.96 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.86 |
||
|
9095001865
|
9095001865
90950-01865 PLUG HOLE |
90950-01865 |
from US $1.27 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.28 |
||
