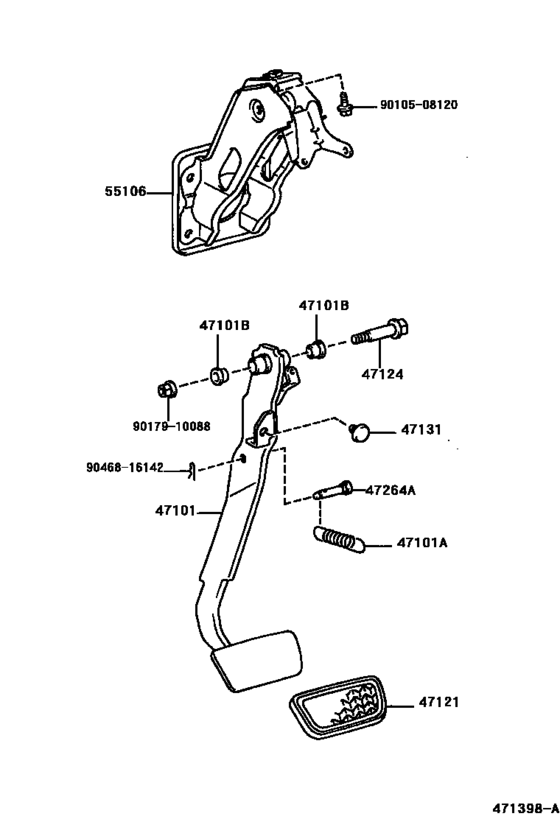

Brake Pedal & Bracket ([08.1999 - ] (9908- )) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-52031 Pedal Sub-Assy, BrakeBRAKE [08.1999 - 08.2002] NCP12..MTM |
47101-52031 |
US $35.24 |
||
|
47101A
|
47101A
90506-14077 Spring(For Brake Pedal Return)[08.1999 - 08.2002] NCP12 |
90506-14077 |
US $1.40 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[08.1999 - 08.2002] NCP12 |
90386-13015 |
from US $0.78 |
||
|
47121
|
47121
31321-52010 Pad, Brake Pedal[08.1999 - 08.2002] NCP12..MTM |
31321-52010 |
from US $2.11 |
||
|
47124
|
47124
90109-10167 Shaft, Clutch Pedal[08.1999 - 08.2002] NCP12 |
90109-10167 |
US $3.04 |
||
|
47131
|
47131
90541-06036 Cushion, No.1(For Clutch Pedal)[08.1999 - 08.2002] NCP12 |
90541-06036 |
from US $0.98 |
||
| replacement | |||||
|
47131
|
47131
90541060361
CUSHION
[08.1999 - 08.2002] NCP12 |
90541060361 |
— | ||
|
47264A
|
47264A
90249-08295 Pin(For Push Rod)[08.1999 - 08.2002] NCP12 |
90249-08295 |
US $1.89 |
||
|
55106
|
55106
55106-52020 Support Sub-Assy, Brake PedalBRAKE PEDAL [08.1999 - 08.2002] NCP12 |
55106-52020 |
US $45.43 |
||
| replacement | |||||
|
55106
|
55106
55106-52021 Support Sub-Assy, Brake PedalBRAKE PEDAL [08.1999 - 08.2002] NCP12 |
55106-52021 |
US $37.86 |
||
|
55106
|
55106
55106-52021 Support Sub-Assy, Brake PedalBRAKE PEDAL [12.2004 - 11.2005] NCP12 |
55106-52021 |
US $37.86 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.13 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.88 |
||
