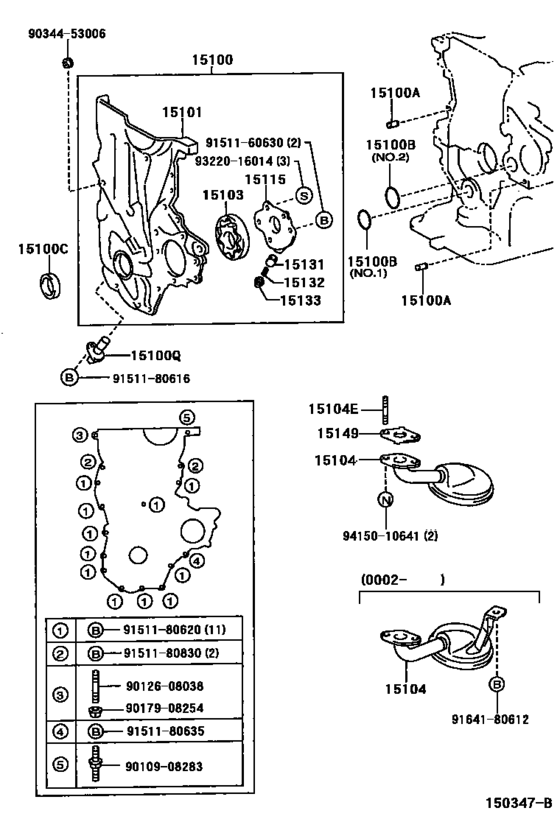

Engine Oil Pump ([08.1999 - 08.2002] (9908-0208)) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-21040
Pump Assy, Oil
[08.1999 - 08.2002] 1NZFE..NCP12 |
15100-21040 |
— | ||
| replacement | |||||
|
15100
|
15100
15100-21042 Pump Assy, Oil[08.1999 - 08.2002] 1NZFE..NCP12 |
15100-21042 |
US $240.48 |
||
|
15100A
|
15100A
90253-08003 Pin, Ring W/head[08.1999 - 08.2002] 1NZFE..NCP12 |
90253-08003 |
US $1.28 |
||
|
15100B
|
15100B
90301-31012
Ring, O(For Oil Pump)
[08.1999 - 08.2002] 1NZFE..NCP12 NO.1 |
90301-31012 |
— | ||
| replacement | |||||
|
15100B
|
15100B
12151-21010 Ring, O(For Oil Pump)[08.1999 - 08.2002] 1NZFE..NCP12 NO.1 |
12151-21010 |
from US $0.80 |
||
|
15100B
|
15100B
90301-42006
Ring, O(For Oil Pump)
[08.1999 - 08.2002] 1NZFE..NCP12 NO.2 |
90301-42006 |
— | ||
| replacement | |||||
|
15100B
|
15100B
11497-21010 Ring, O(For Oil Pump)[08.1999 - 08.2002] 1NZFE..NCP12 NO.2 |
11497-21010 |
from US $3.41 |
||
|
15100C
|
15100C
90311-25021
Seal, Oil(For Timing Chain Or Belt Cover)
[08.1999 - 08.2002] 1NZFE..NCP12 |
90311-25021 |
— | ||
| replacement | |||||
|
15100C
|
15100C
90311-25032 Seal, Oil(For Timing Chain Or Belt Cover)[08.1999 - 08.2002] 1NZFE..NCP12 |
90311-25032 |
from US $4.96 |
||
|
15100Q
|
15100Q
90919-05045
Sensor, Crank Position
[08.1999 - 08.2002] 1NZFE..NCP12 |
90919-05045 |
— | ||
| replacement | |||||
|
15100Q
|
15100Q
90919-05087 Sensor, Crank Position[08.1999 - 08.2002] 1NZFE..NCP12 |
90919-05087 |
from US $41.95 |
||
|
15101
|
15101
15111-21040 Body Sub-Assy, Oil Pump[08.1999 - 08.2002] 1NZFE..NCP12 |
15111-21040 |
US $65.08 |
||
| replacement | |||||
|
15101
|
15101
15111-21042 Body Sub-Assy, Oil Pump[08.1999 - 08.2002] 1NZFE..NCP12 |
15111-21042 |
US $54.16 |
||
|
15103
|
15103
15103-21020 Gear Set, Oil Pump[08.1999 - 08.2002] 1NZFE..NCP12 |
15103-21020 |
US $80.08 |
||
|
15104
|
15104
15104-21020
Strainer Sub-Assy, Oil
[08.1999 - 02.2000] 1NZFE..NCP12 |
15104-21020 |
— | ||
|
15104
|
15104
15104-21021 Strainer Sub-Assy, Oil[02.2000 - 08.2002] 1NZFE..NCP12 |
15104-21021 |
US $41.93 |
||
| replacement | |||||
|
15104
|
15104
15104-21022 Strainer Sub-Assy, Oil[02.2000 - 08.2002] 1NZFE..NCP12 |
15104-21022 |
from US $20.36 |
||
|
15104E
|
15104E
90126-06021 Bolt, Stud(For Oil Strainer)[08.1999 - 08.2002] 1NZFE..NCP12 |
90126-06021 |
US $1.28 |
||
|
15115
|
15115
15115-21030 Cover, Oil Pump[08.1999 - 08.2002] 1NZFE..NCP12 |
15115-21030 |
US $43.53 |
||
|
15131
|
15131
15131-21020 Valve, Oil Pump Relief[08.1999 - 08.2002] 1NZFE..NCP12 |
15131-21020 |
US $4.37 |
||
|
15132
|
15132
15132-21020 Spring, Oil Pump Relief Valve[08.1999 - 08.2002] 1NZFE..NCP12 |
15132-21020 |
US $2.80 |
||
|
15133
|
15133
15133-21020 Plug, Oil Pump Relief Valve[08.1999 - 08.2002] 1NZFE..NCP12 |
15133-21020 |
US $3.84 |
||
|
15133
|
15133
15133-21030 Plug, Oil Pump Relief Valve[05.2004 -] 1NZFE..NCP12 |
15133-21030 |
US $2.91 |
||
|
15149
|
15149
16258-21010
Gasket, Oil Strainer Flange
[08.1999 - 08.2002] 1NZFE..NCP12 |
16258-21010 |
— | ||
| replacement | |||||
|
15149
|
15149
16258-21030 Gasket, Oil Strainer Flange[08.1999 - 08.2002] 1NZFE..NCP12 |
16258-21030 |
from US $2.77 |
||
|
15149
|
15149
16258-21030 Gasket, Oil Strainer Flange[02.2003 -] 1NZFE..NCP12 |
16258-21030 |
from US $2.77 |
||
|
9010908283
|
9010908283
90109-08283 New Genuine Part |
90109-08283 |
US $1.28 |
||
|
9012608038
|
9012608038
90126-08038 New Genuine Part |
90126-08038 |
US $3.36 |
||
|
9017908254
|
9017908254
90179-08254 NUT |
90179-08254 |
US $1.28 |
||
|
9034453006
|
9034453006
90344-53006 Plug, Tight, No.1(For Timing Gear Cover) |
90344-53006 |
from US $2.08 |
||
|
9151160630
|
9151160630
91511-60630 BOLT |
91511-60630 |
from US $1.92 |
||
|
9151180616
|
9151180616
91511-80616 New Genuine Part |
91511-80616 |
US $0.96 |
||
|
9151180620
|
9151180620
91511-80620 Direct |
91511-80620 |
US $1.76 |
||
|
9151180635
|
9151180635
91511-80635
New Genuine Part
|
91511-80635 |
— | ||
| replacement | |||||
|
9151180635
|
9151180635
91511-C0635 BOLT, FLANGE |
91511-C0635 |
US $1.60 |
||
|
9151180830
|
9151180830
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.20 |
||
|
9164180612
|
9164180612
91641-80612 New Genuine Part |
91641-80612 |
US $1.76 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
from US $0.86 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $0.96 |
||
