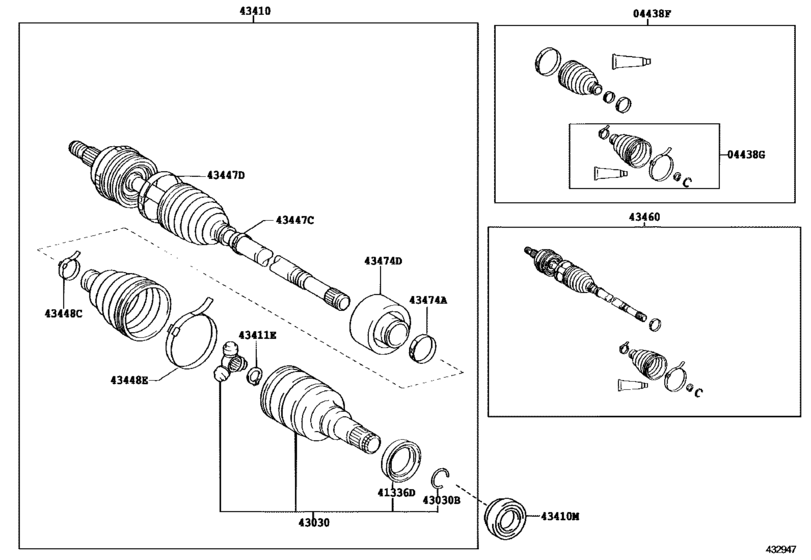

Front Drive Shaft ([08.1999 - ] RH (9908- )) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-52260
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[05.2005 - 10.2005] NCP12 |
04427-52260 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04427-52891
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[05.2005 - 10.2005] NCP12 |
04427-52891 |
— | ||
|
04438F
|
04438F
04438-52040 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.1999 - 04.2002] NCP12 |
04438-52040 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04438-52042 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.1999 - 04.2002] NCP12 |
04438-52042 |
US $141.52 |
||
|
04438F
|
04438F
04438-52041 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2002 - 08.2002] NCP12 |
04438-52041 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04438-52042 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2002 - 08.2002] NCP12 |
04438-52042 |
US $141.52 |
||
|
04438G
|
04438G
04437-52190 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.2005 - 11.2005] NCP12 |
04437-52190 |
US $74.26 |
||
| replacement | |||||
|
04438G
|
04438G
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint[05.2005 - 11.2005] NCP12 |
04437-52191 |
from US $75.70 |
||
|
04438G
|
04438G
04438-52030 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.1999 - 08.2002] NCP12 |
04438-52030 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint[08.1999 - 08.2002] NCP12 |
04437-52191 |
from US $75.70 |
||
|
41336D
|
41336D
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[08.1999 - 08.2002] NCP12 |
41336-12010 |
from US $1.54 |
||
|
43030
|
43030
43403-10011
Joint Assy, Front Drive Inboard
[08.1999 - 08.2002] NCP12 |
43403-10011 |
— | ||
| replacement | |||||
|
43030
|
43030
43403-0W031 JOINT SET, FR AXLE[08.1999 - 08.2002] NCP12 |
43403-0W031 |
US $283.92 |
||
|
43030B
|
43030B
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[08.1999 - 08.2002] NCP12 |
90521-26004 |
from US $1.60 |
||
|
43410
|
43410
43410-52060 Shaft Assy, Front Drive, Rh[08.1999 - 08.2002] NCP12 |
43410-52060 |
US $773.14 |
||
|
43410
|
43410
43410-52070
Shaft Assy, Front Drive, Rh
[08.1999 - 08.2002] NCP12 W(ABS) |
43410-52070 |
— | ||
| replacement | |||||
|
43410
|
43410
4341052071 Shaft Assy, Fr Drive, Rh[08.1999 - 08.2002] NCP12 W(ABS) |
4341052071 |
US $1,172.37 |
||
|
43410M
|
43410M
90311-34016 Seal, Oil, No.2(For Transaxle Case)[08.1999 - 08.2000] NCP12..MTM |
90311-34016 |
from US $4.32 |
||
|
43410M
|
43410M
90311-34023 Seal, Type T Oil, No.2(For Cvt)[08.2000 - 08.2002] NCP12 |
90311-34023 |
from US $4.32 |
||
|
43411E
|
43411E
90520-22001 Ring, Shaft Snap (For Front Drive Inner Shaft Inner)[08.1999 - 08.2002] NCP12 |
90520-22001 |
US $1.02 |
||
|
43447C
|
43447C
42345-52110 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.1999 - 08.2002] NCP12 ID=29.2 |
42345-52110 |
US $4.80 |
||
| replacement | |||||
|
43447C
|
43447C
42345-52260 Clamp (For Front Axle Outboard Joint Boot Rh)[08.1999 - 08.2002] NCP12 ID=29.2 |
42345-52260 |
US $3.52 |
||
|
43447D
|
43447D
42345-52100 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.1999 - 08.2002] NCP12 ID=88.9 |
42345-52100 |
US $6.99 |
||
| replacement | |||||
|
43447D
|
43447D
42345-52250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.1999 - 08.2002] NCP12 ID=88.9 |
42345-52250 |
US $5.28 |
||
|
43448C
|
43448C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.1999 - 08.2002] NCP12 |
90949-01078 |
US $0.61 |
||
|
43448E
|
43448E
90949-01146 Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)[08.1999 - 08.2002] NCP12 |
90949-01146 |
US $4.54 |
||
|
43460
|
43460
43460-59035 Shaft Assy, Front Drive Outboard Joint, Rh[08.1999 - 08.2002] NCP12 |
43460-59035 |
US $773.14 |
||
| replacement | |||||
|
43460
|
43460
43460-59536 Shaft Assy, Front Drive Outboard Joint, Rh[08.1999 - 08.2002] NCP12 |
43460-59536 |
US $745.47 |
||
|
43460
|
43460
43460-59045 Shaft Assy, Front Drive Outboard Joint, Rh[08.1999 - 08.2002] NCP12 W(ABS) |
43460-59045 |
US $773.14 |
||
| replacement | |||||
|
43460
|
43460
43460-59367 Shaft Assy, Front Drive Outboard Joint, Rh[08.1999 - 08.2002] NCP12 W(ABS) |
43460-59367 |
US $525.62 |
||
|
43460
|
43460
43460-59365 Shaft Assy, Front Drive Outboard Joint, Rh[05.2005 -] NCP12 W(ABS) |
43460-59365 |
US $631.90 |
||
| replacement | |||||
|
43460
|
43460
43460-59367 Shaft Assy, Front Drive Outboard Joint, Rh[05.2005 -] NCP12 W(ABS) |
43460-59367 |
US $525.62 |
||
|
43460
|
43460
43460-59535 Shaft Assy, Front Drive Outboard Joint, Rh[05.2005 -] NCP12 |
43460-59535 |
US $745.47 |
||
| replacement | |||||
|
43460
|
43460
43460-59536 Shaft Assy, Front Drive Outboard Joint, Rh[05.2005 -] NCP12 |
43460-59536 |
US $745.47 |
||
|
43474A
|
43474A
42345-14010 Clamp, Rear Drive Shaft Boot[08.1999 - 08.2002] NCP12 |
42345-14010 |
US $11.20 |
||
|
43474D
|
43474D
43474-52030 Damper, Drive Shaft[08.1999 - 08.2002] NCP12 |
43474-52030 |
US $62.46 |
||
