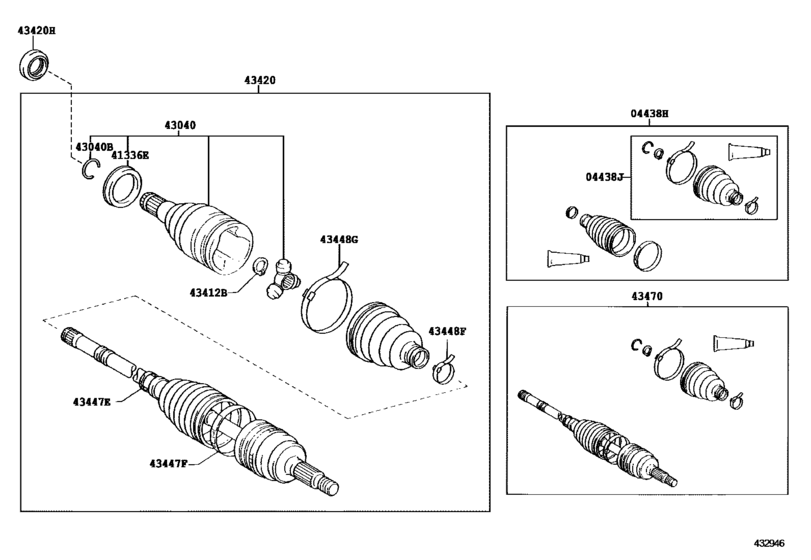

Front Drive Shaft ([08.1999 - ] LH (9908- )) Diagram Toyota ECHO
- Year
- 1999 - 2006
- Sales region
- U.S.A.
- Frame
- NCP12
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1999
- To
- 02.2006
- No.of Doors
- 2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04427-52260
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[05.2005 - 10.2005] NCP12 |
04427-52260 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04427-52891
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[05.2005 - 10.2005] NCP12 |
04427-52891 |
— | ||
|
04438H
|
04438H
04438-52040 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.1999 - 04.2002] NCP12 |
04438-52040 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-52042 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.1999 - 04.2002] NCP12 |
04438-52042 |
US $141.52 |
||
|
04438H
|
04438H
04438-52041 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2002 - 08.2002] NCP12 |
04438-52041 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-52042 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2002 - 08.2002] NCP12 |
04438-52042 |
US $141.52 |
||
|
04438J
|
04438J
04437-52190 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.2005 - 11.2005] NCP12 |
04437-52190 |
US $74.26 |
||
| replacement | |||||
|
04438J
|
04438J
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint[05.2005 - 11.2005] NCP12 |
04437-52191 |
from US $75.70 |
||
|
04438J
|
04438J
04438-52030 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.1999 - 08.2002] NCP12 |
04438-52030 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint[08.1999 - 08.2002] NCP12 |
04437-52191 |
from US $75.70 |
||
|
41336E
|
41336E
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[08.1999 - 08.2002] NCP12 |
41336-12010 |
from US $1.54 |
||
|
43040
|
43040
43403-10011
Joint Assy, Front Drive Inboard
[08.1999 - 08.2002] NCP12 |
43403-10011 |
— | ||
| replacement | |||||
|
43040
|
43040
43403-0W031 JOINT SET, FR AXLE[08.1999 - 08.2002] NCP12 |
43403-0W031 |
US $283.92 |
||
|
43040B
|
43040B
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[08.1999 - 06.2002] NCP12 |
90521-26004 |
from US $1.60 |
||
|
43412B
|
43412B
90520-22001 Ring, Shaft Snap (For Front Drive Inner Shaft Inner)[08.1999 - 08.2002] NCP12 |
90520-22001 |
US $1.02 |
||
|
43420
|
43420
43420-52060 Shaft Assy, Front Drive, Lh[08.1999 - 08.2002] NCP12 |
43420-52060 |
US $666.85 |
||
|
43420
|
43420
43420-52070 Shaft Assy, Front Drive, Lh[08.1999 - 08.2002] NCP12 W(ABS) |
43420-52070 |
US $666.85 |
||
|
43420H
|
43420H
90311-34017
Seal, Oil(For Transmission Case)
[08.1999 - 12.2000] NCP12..MTM |
90311-34017 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-34042 Oil Seal, Front Drive Shaft, Lh[08.1999 - 12.2000] NCP12..MTM |
90311-34042 |
from US $7.52 |
||
|
43420H
|
43420H
90311-34028
Oil Seal, Front Drive Shaft, Lh
[12.2000 - 08.2002] NCP12..MTM |
90311-34028 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-34042 Oil Seal, Front Drive Shaft, Lh[12.2000 - 08.2002] NCP12..MTM |
90311-34042 |
from US $7.52 |
||
|
43447E
|
43447E
42345-52110 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.1999 - 08.2002] NCP12 ID=29.2 |
42345-52110 |
US $4.80 |
||
| replacement | |||||
|
43447E
|
43447E
42345-52260 Clamp (For Front Axle Outboard Joint Boot Rh)[08.1999 - 08.2002] NCP12 ID=29.2 |
42345-52260 |
US $3.52 |
||
|
43447F
|
43447F
42345-52100 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.1999 - 08.2002] NCP12 ID=88.9 |
42345-52100 |
US $6.99 |
||
| replacement | |||||
|
43447F
|
43447F
42345-52250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.1999 - 08.2002] NCP12 ID=88.9 |
42345-52250 |
US $5.28 |
||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.1999 - 08.2002] NCP12 |
90949-01078 |
US $0.61 |
||
|
43448G
|
43448G
90949-01146 Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)[08.1999 - 08.2002] NCP12 |
90949-01146 |
US $4.54 |
||
|
43470
|
43470
43470-59035 Shaft Assy, Front Drive Outboard Joint, Lh[08.1999 - 08.2002] NCP12 |
43470-59035 |
US $666.85 |
||
| replacement | |||||
|
43470
|
43470
43470-59486 Shaft Assy, Front Drive Outboard Joint, Lh[08.1999 - 08.2002] NCP12 |
43470-59486 |
from US $570.82 |
||
|
43470
|
43470
43470-59045 Shaft Assy, Front Drive Outboard Joint, Lh[08.1999 - 08.2002] NCP12 W(ABS) |
43470-59045 |
US $666.85 |
||
| replacement | |||||
|
43470
|
43470
43470-59456 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [08.1999 - 08.2002] NCP12 W(ABS) |
43470-59456 |
US $444.08 |
||
|
43470
|
43470
43470-59455 Shaft Assy, Front Drive Outboard Joint, Lh[05.2005 - 02.2006] NCP12 W(ABS) |
43470-59455 |
US $532.90 |
||
| replacement | |||||
|
43470
|
43470
43470-59456 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [05.2005 - 02.2006] NCP12 W(ABS) |
43470-59456 |
US $444.08 |
||
|
43470
|
43470
43470-59485 Shaft Assy, Front Drive Outboard Joint, Lh[05.2005 - 02.2006] NCP12 |
43470-59485 |
US $666.85 |
||
| replacement | |||||
|
43470
|
43470
43470-59486 Shaft Assy, Front Drive Outboard Joint, Lh[05.2005 - 02.2006] NCP12 |
43470-59486 |
from US $570.82 |
||
